Removal and Installation: Removal

  1. Release the fuel pressure from the fuel system.

    Refer to FUEL PRESSURE RELEASE (QG18DE) and FUEL PRESSURE RELEASE (QR25DE).

  2. Disconnect the battery ground cable.
  3. Open the fuel filler lid and remove the filler cap to relieve the pressure in the fuel tank.
  4. Drain the fuel from the fuel tank. Refer to GENERAL PRECAUTIONS .
  5. Remove the rear seat cushion. Refer to REMOVAL AND INSTALLATION .
  6. Remove the inspection hole cover located under the rear seat cushion by rotating the attaching clips 90° as shown in Fig 1.

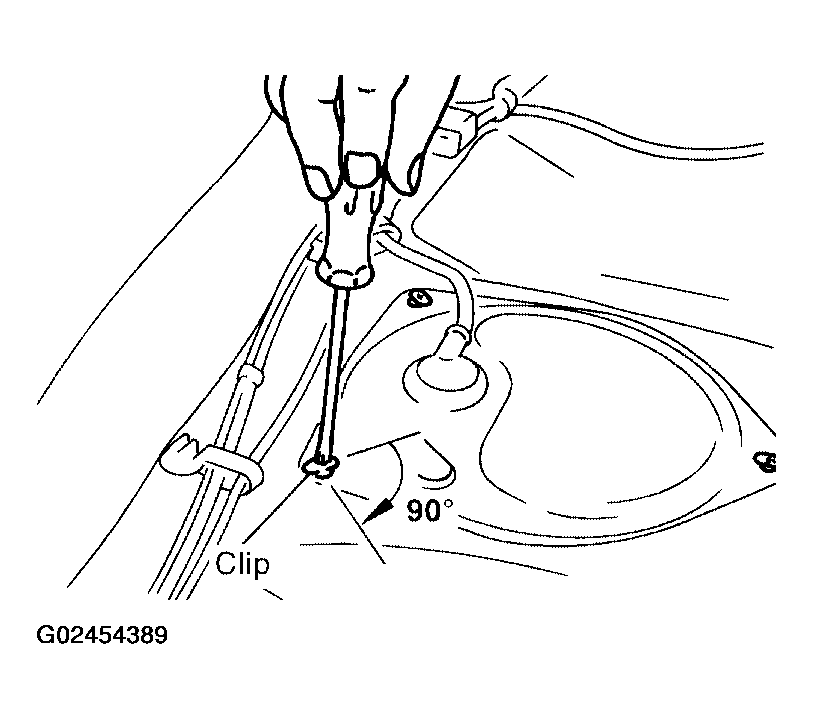

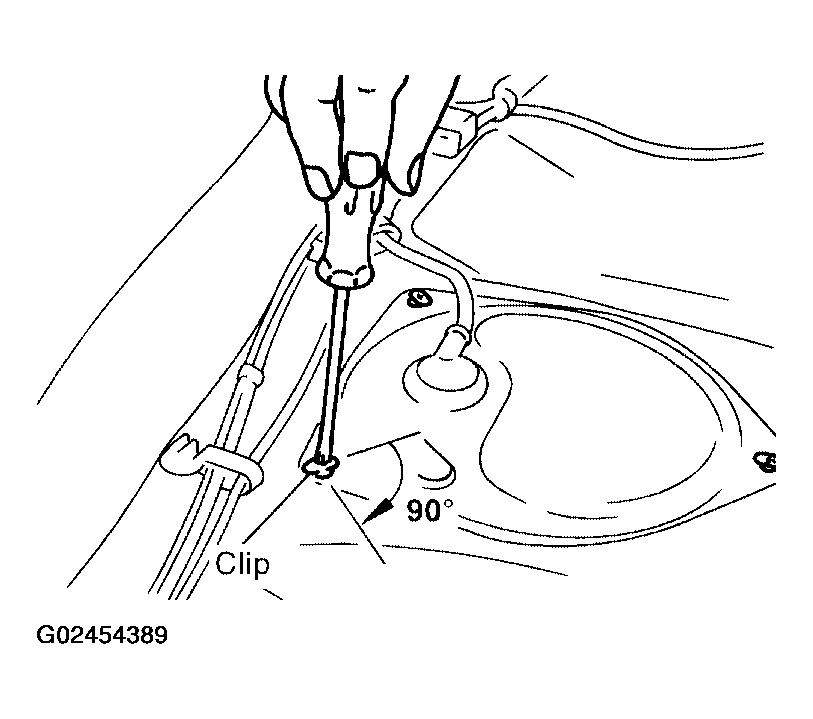

    Fig 1: Removing The Inspection Hole Cover By Rotating Attaching Clips
    G02454389Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Disconnect the fuel pump assembly electrical connector.

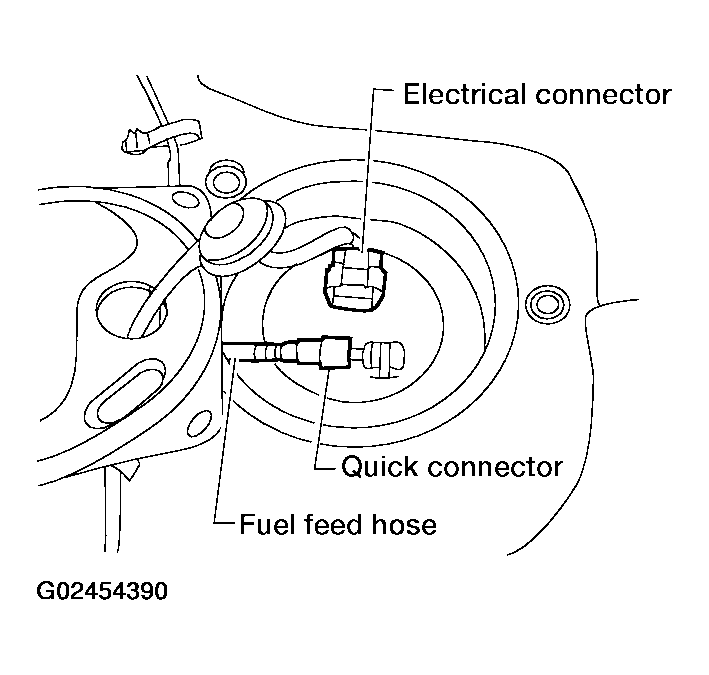

    Fig 2: Disconnecting Fuel Pump Assembly Electrical Connector
    G02454390Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Disconnect the fuel feed hose quick connector as follows:
    1. Apply mating marks on the fuel pump outlet and the quick connector for installation.
    2. Hold the quick connector and push in the tabs, then pull out from of the fuel pump outlet that is inserted in the quick connector.
      CAUTION:
      • The quick connector can be removed when the tabs are completely depressed. Do not twist the fuel feed hose more than necessary.
      • Do not use any tools to remove the quick connector.

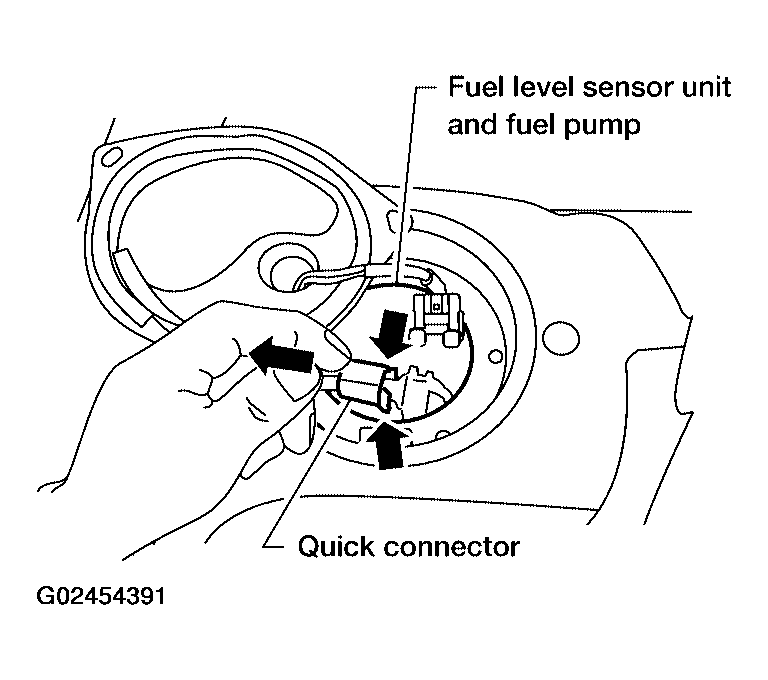

    Fig 3: Disconnecting Fuel Feed Hose Quick Connector
    G02454391Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove the center exhaust tube. Refer to REMOVAL AND INSTALLATION .
  10. From the rear left area of the fuel tank, remove the filler hose, vent hose, and evaporation hoses as shown in Fig 4.

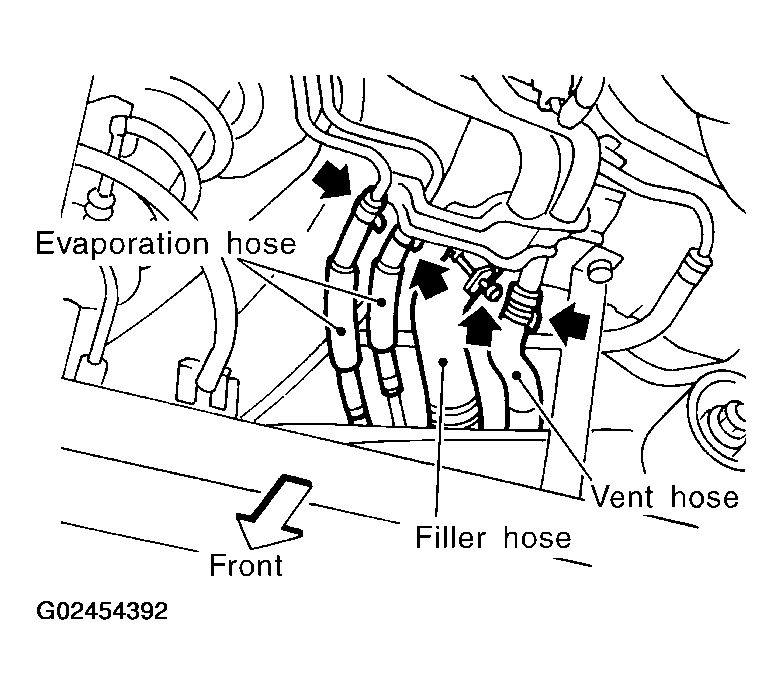

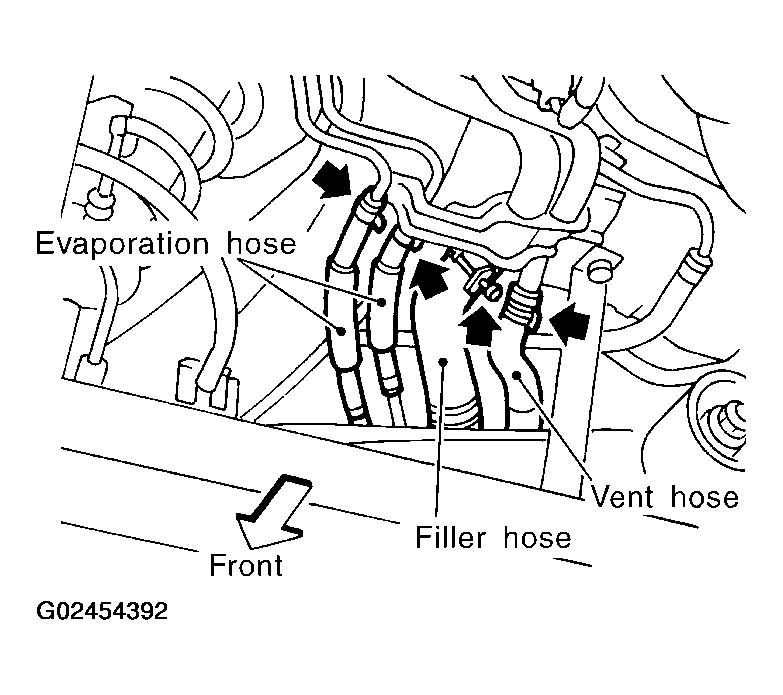

    Fig 4: Removing Filler Hose, Vent Hose & Evaporation Hoses
    G02454392Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Support the fuel tank with a suitable transmission jack as shown in Fig 5.
  12. Remove the fuel tank mounting band bolts while supporting the fuel tank.

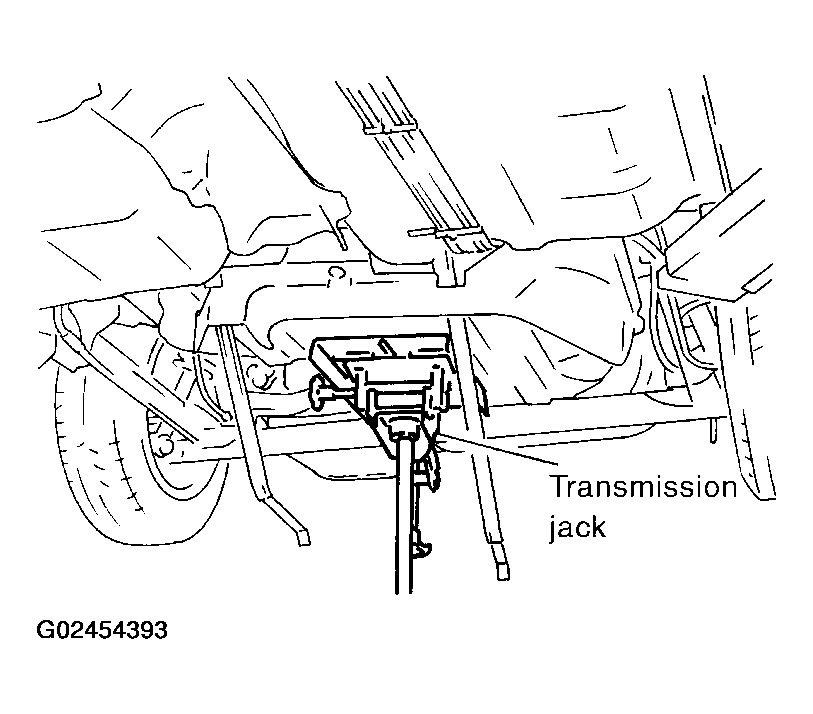

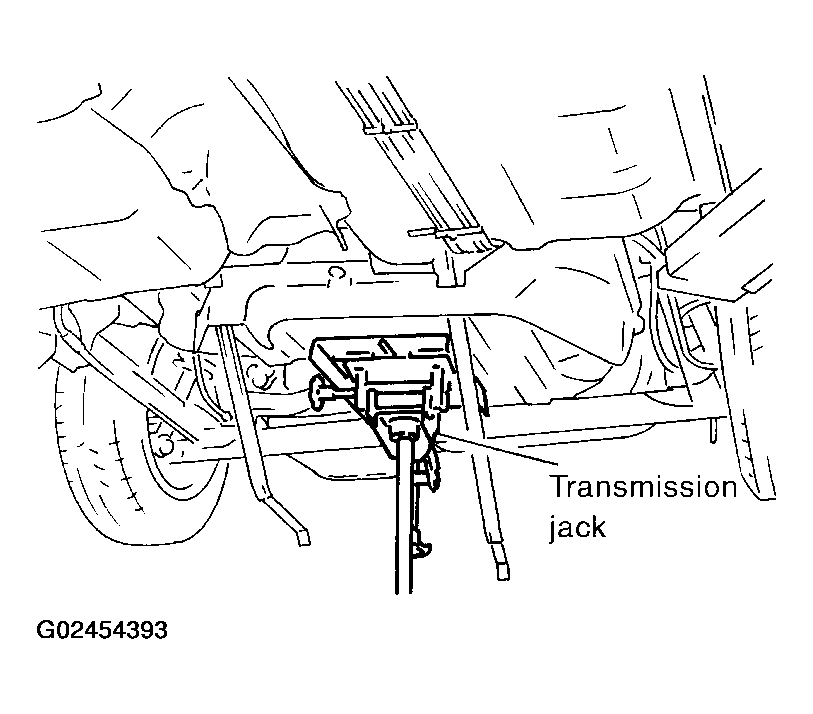

    Fig 5: Supporting Fuel Tank With Suitable Transmission Jack
    G02454393Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Lower the fuel tank by 70 - 80 mm (2.76 - 3.15 in), then remove the nuts and clips holding the fuel tank protector, and remove the protector.
    • To remove the clips, use pliers to squeeze the extensions as shown by the arrows in Fig 6, and then remove the clip.

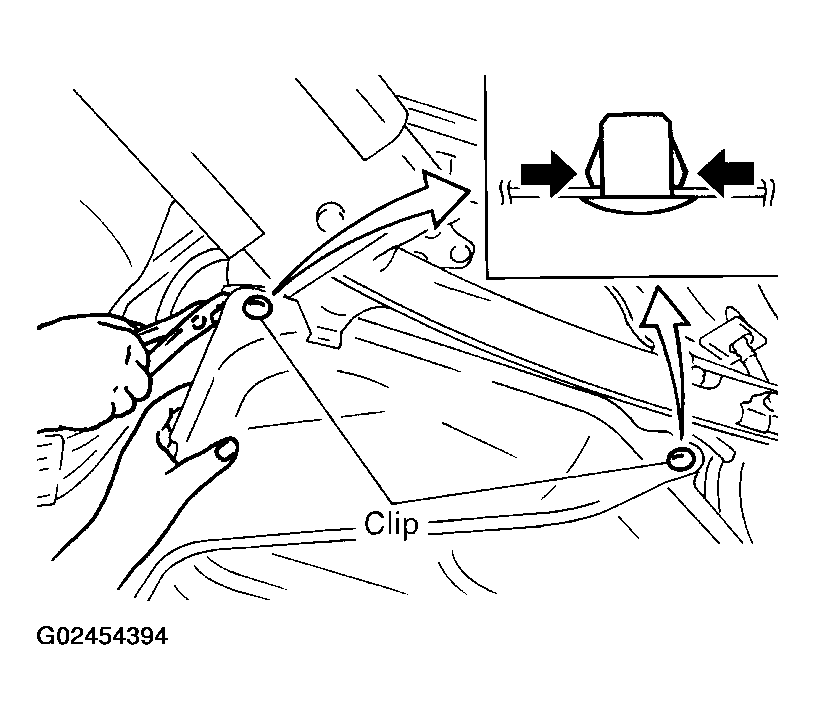

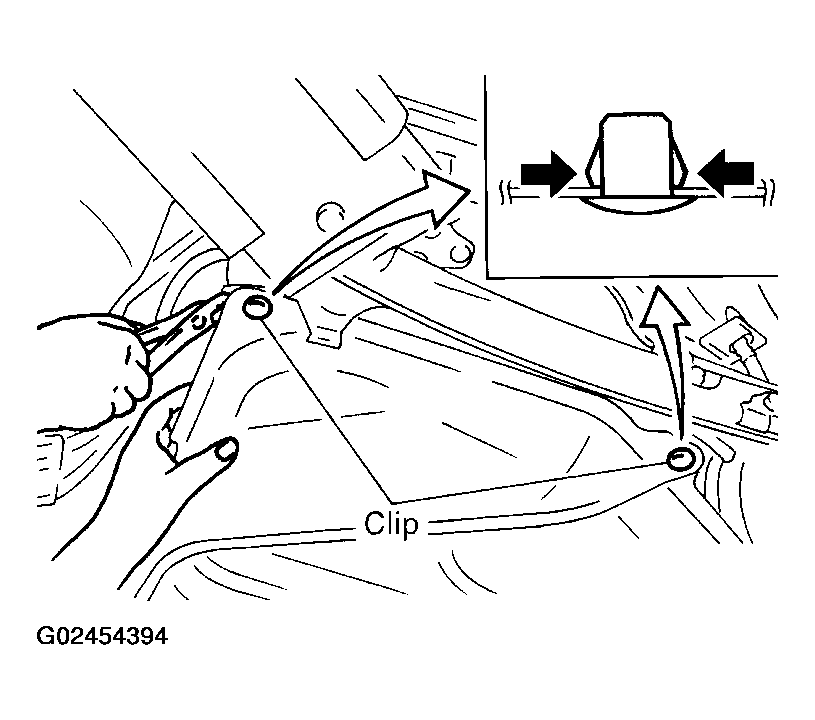

    Fig 6: Removing Clips Holding The Fuel Tank Protector
    G02454394Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove the fuel tank.
