A/T Models Except ULEV

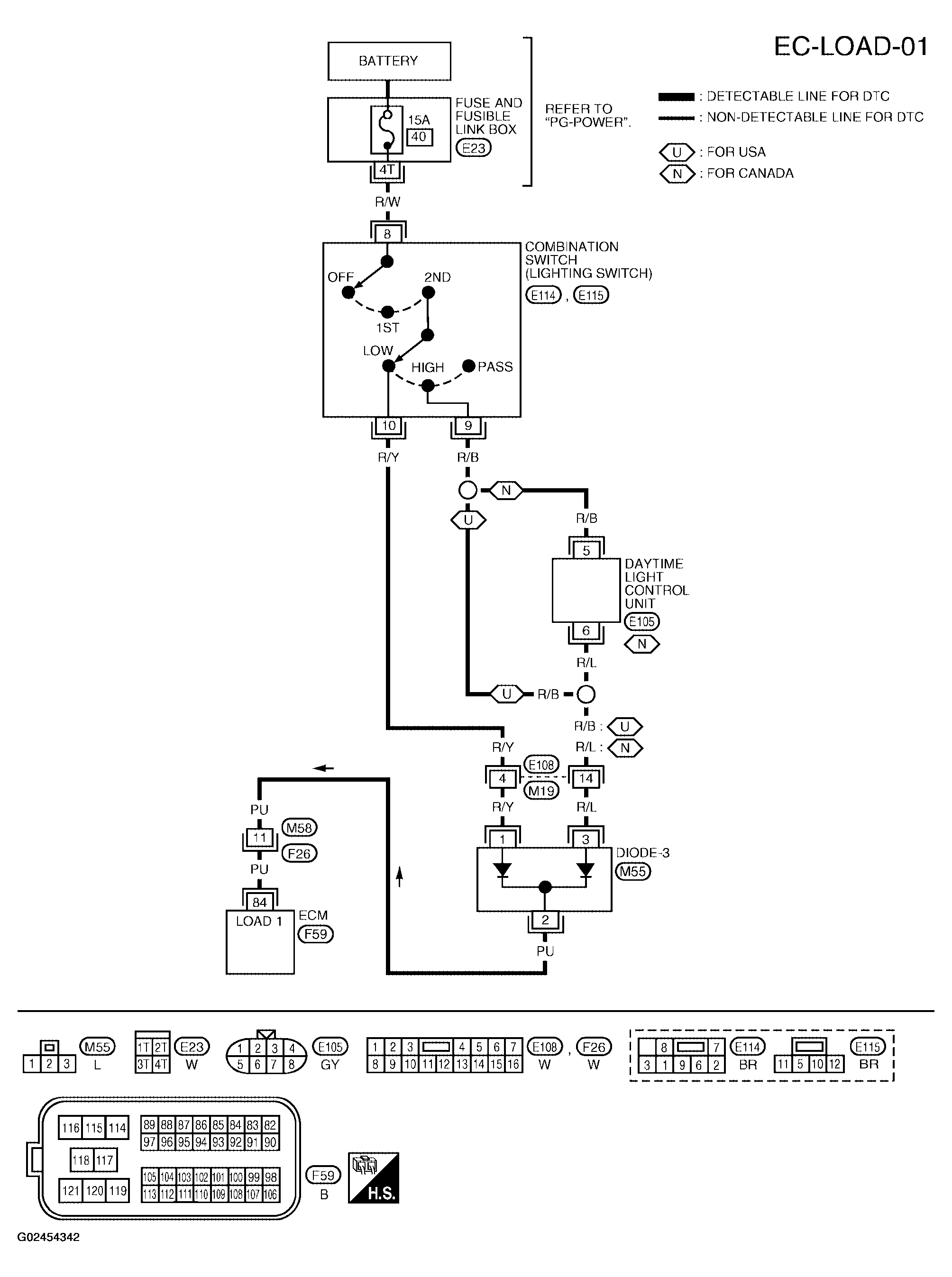

Fig 1: Wiring Diagram - Electrical Load Signal, A/T Models Except ULEV (EC-LOAD-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

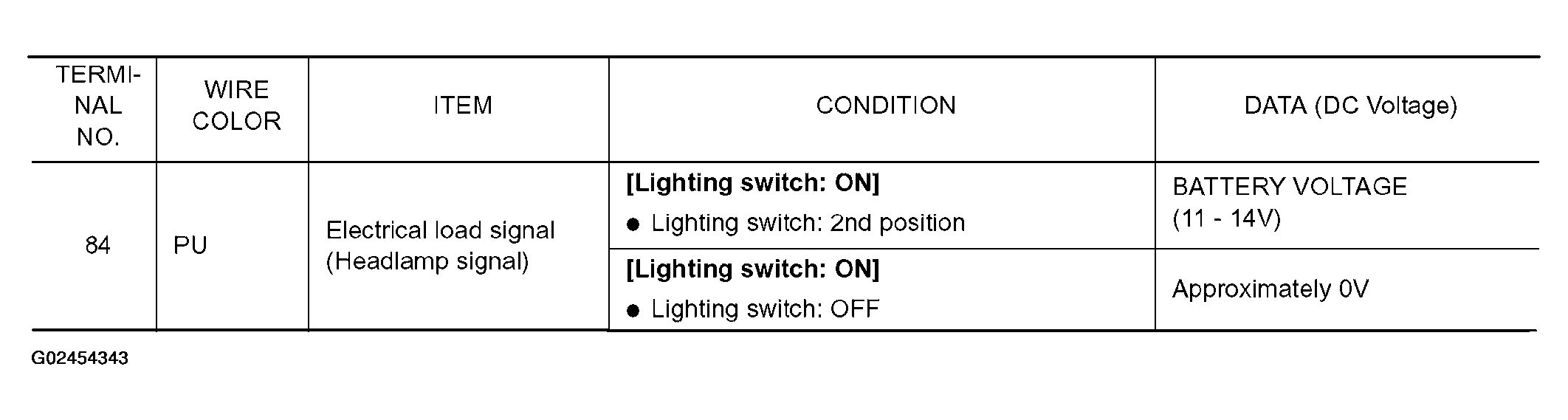

Fig 2: ECM Terminal Values Chart - Electrical Load Signal (Headlamp Circuit)

Courtesy of NISSAN MOTOR CO., U.S.A.

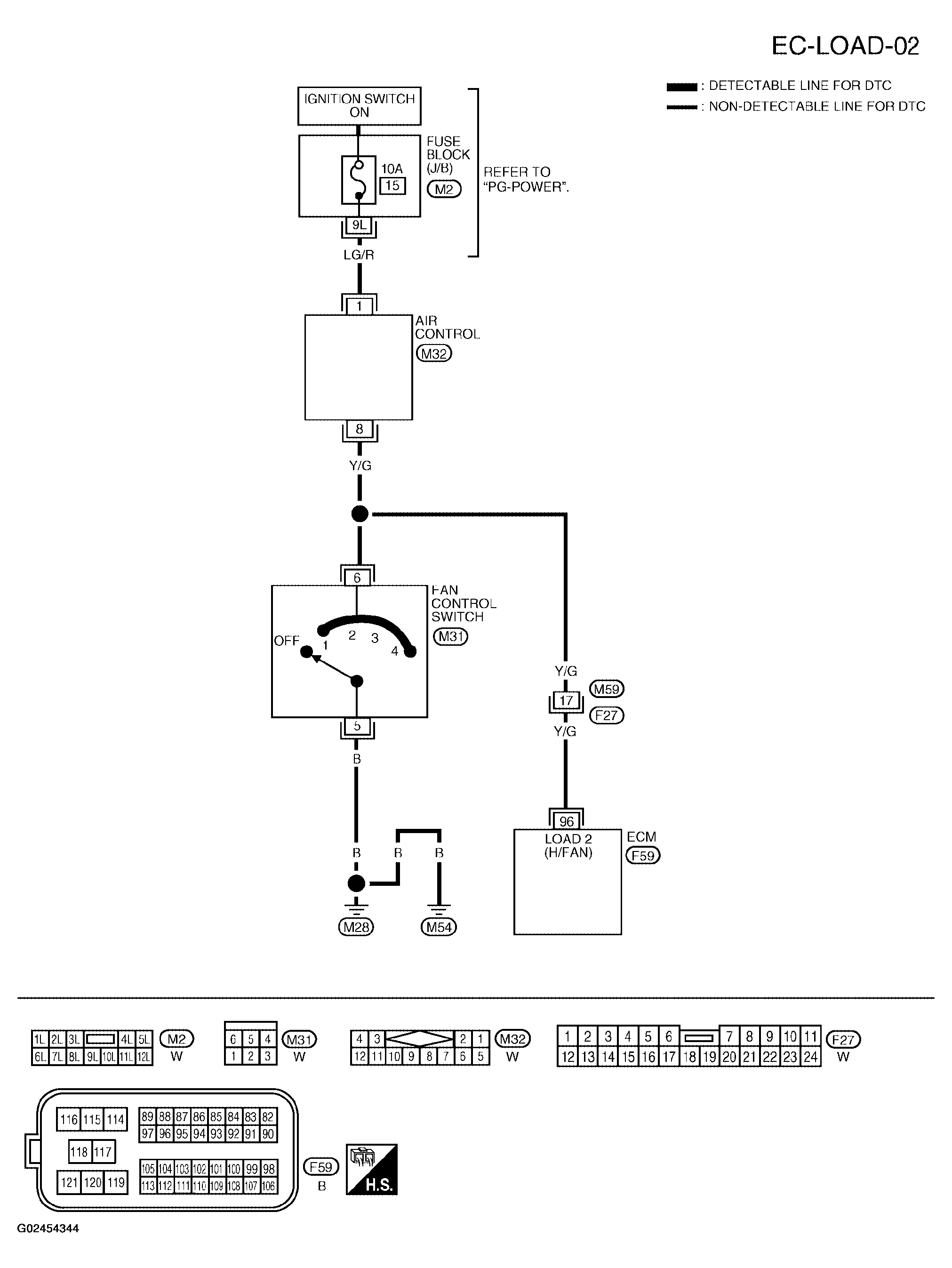

Fig 3: Wiring Diagram - Electrical Load Signal, A/T Models Except ULEV (EC-LOAD-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

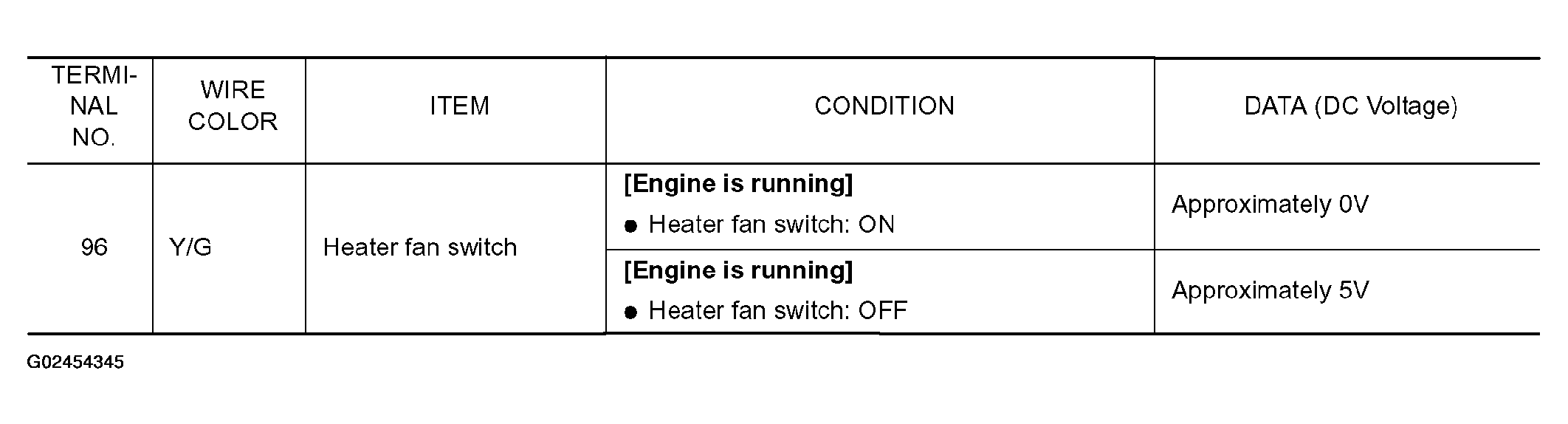

Fig 4: ECM Terminal Values Chart - Heater Fan Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

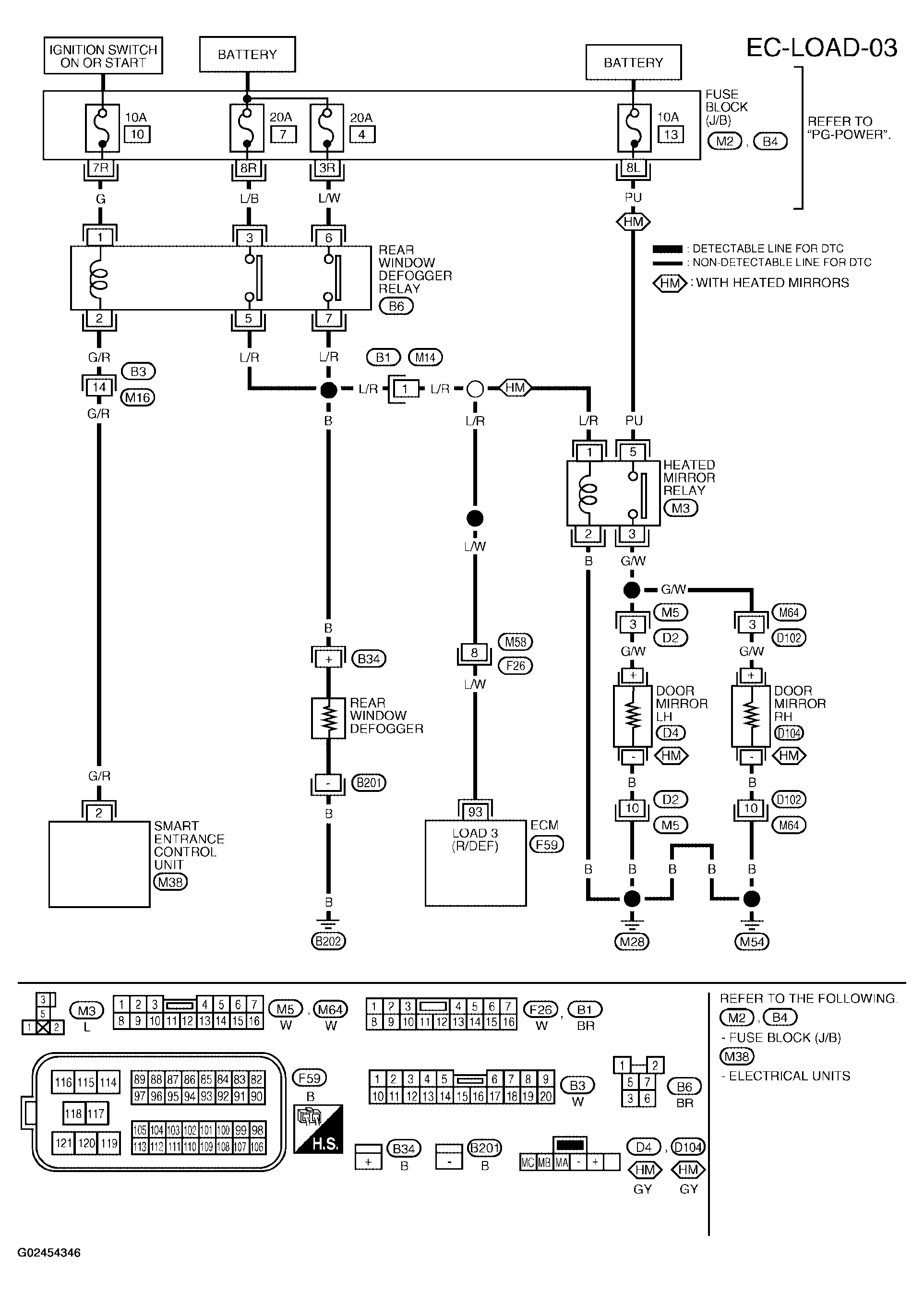

Fig 5: Wiring Diagram - Electrical Load Signal, A/T Models Except ULEV (EC-LOAD-03)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

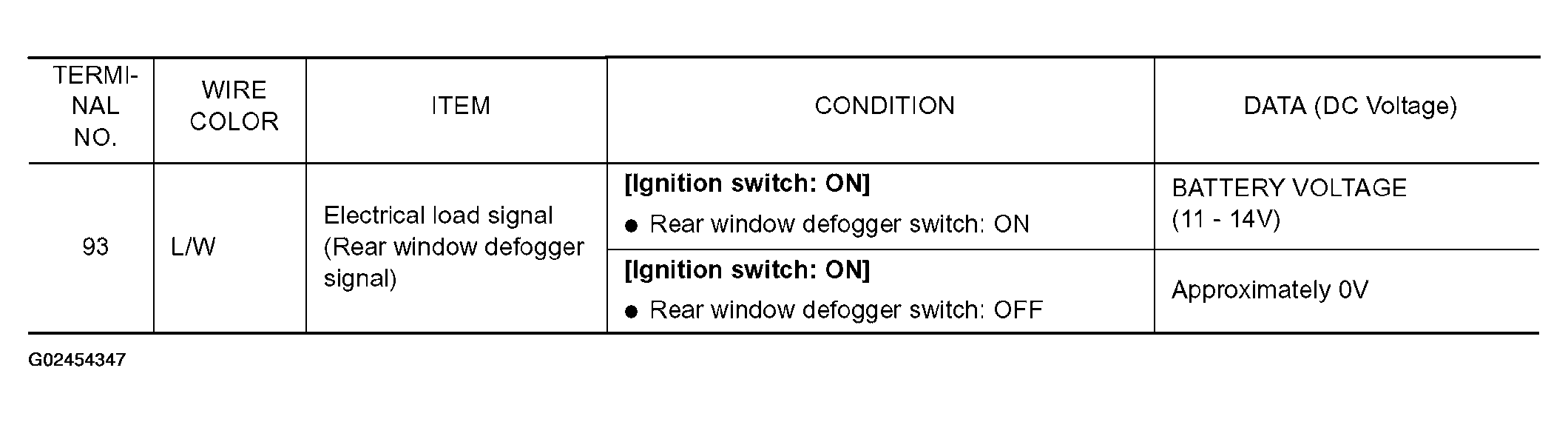

Fig 6: ECM Terminal Values Chart - Electrical Load Signal (Rear Window Defogger)

Courtesy of NISSAN MOTOR CO., U.S.A.
