Mil And Data Link Connector: Wiring Diagram

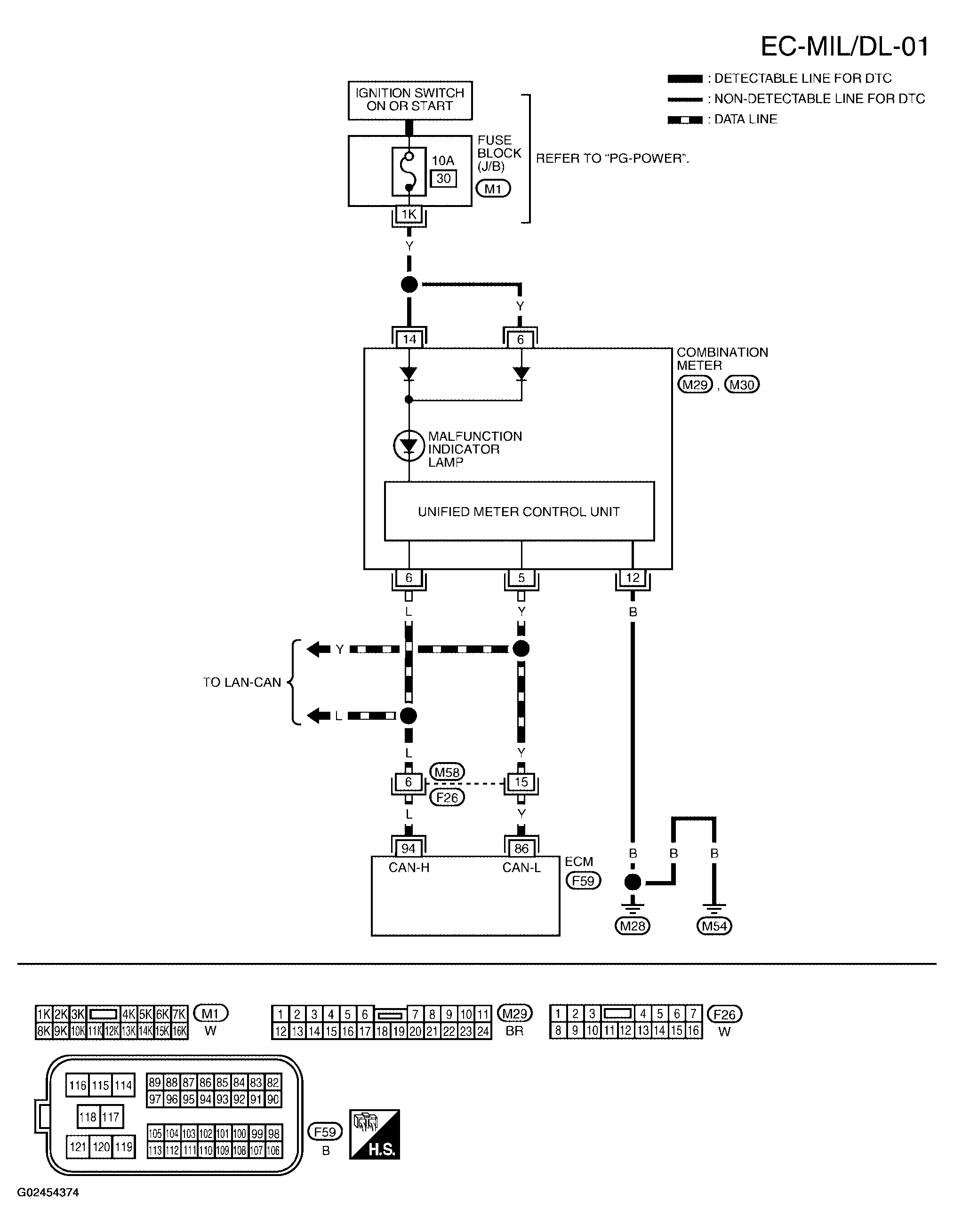

Fig 1: Wiring Diagram - MIL And Data Link Connector (EC-MIL/CD-01)
Courtesy of NISSAN MOTOR CO., U.S.A.

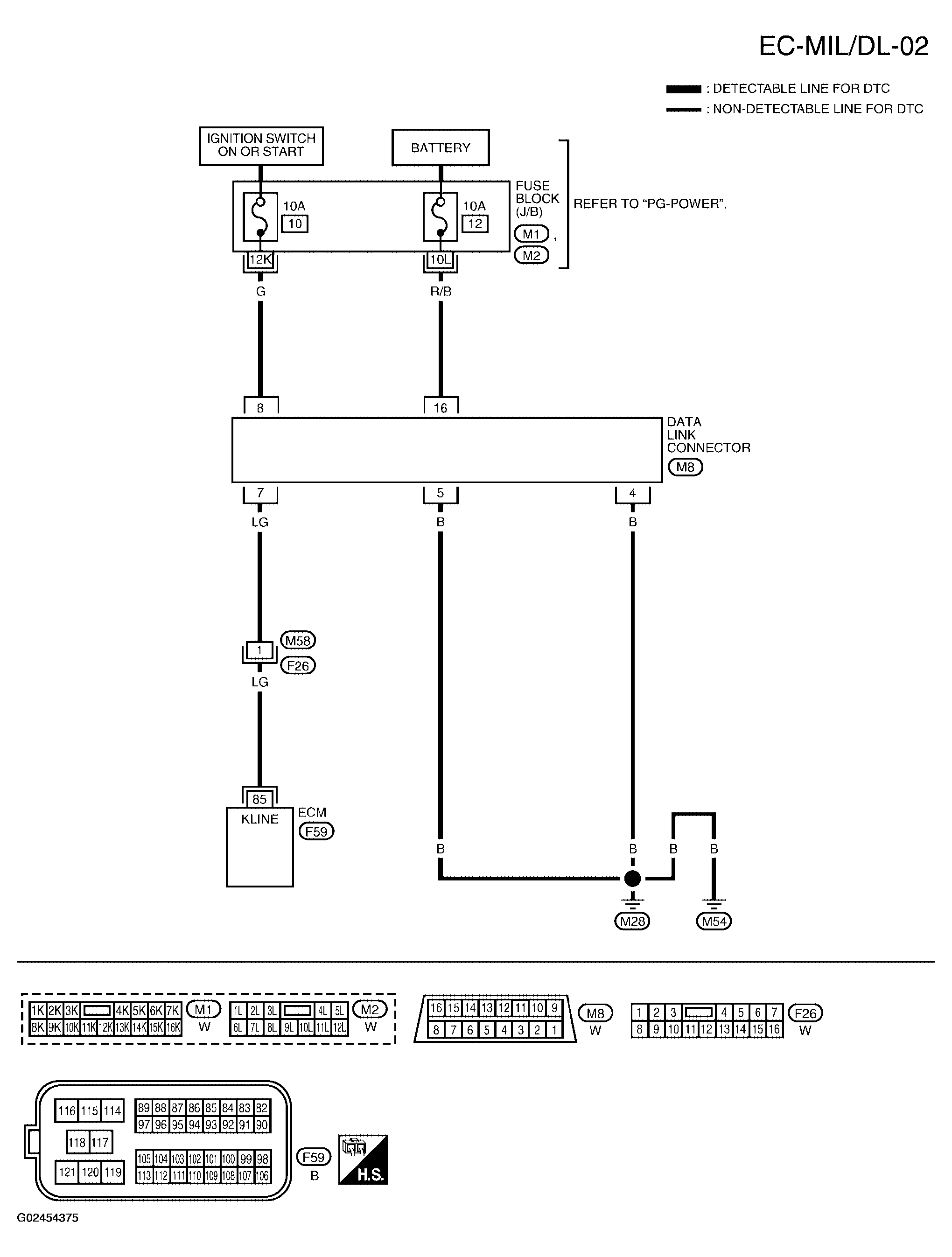

Fig 2: Wiring Diagram - MIL And Data Link Connector (EC-MIL/CD-02)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
