Engine Control System - Introduction (Qr25DE)
>>
Trouble Diagnosis
>>
CONSULT-II Function (ENGINE)
>>
Active Test Mode
>>
Test Item
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Test Item

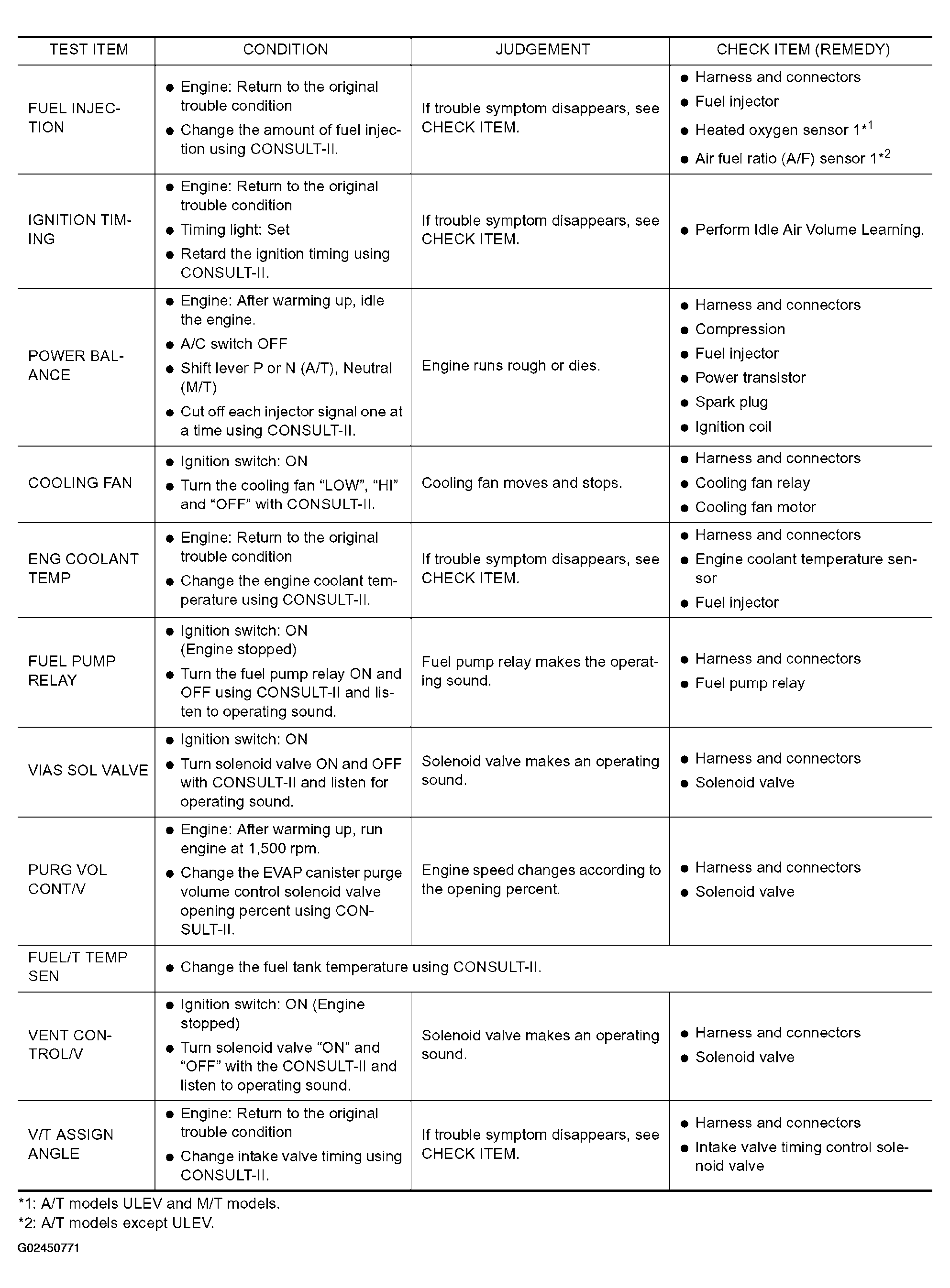

Fig 1: Active Test Mode - Item Description Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
