Monitored Item

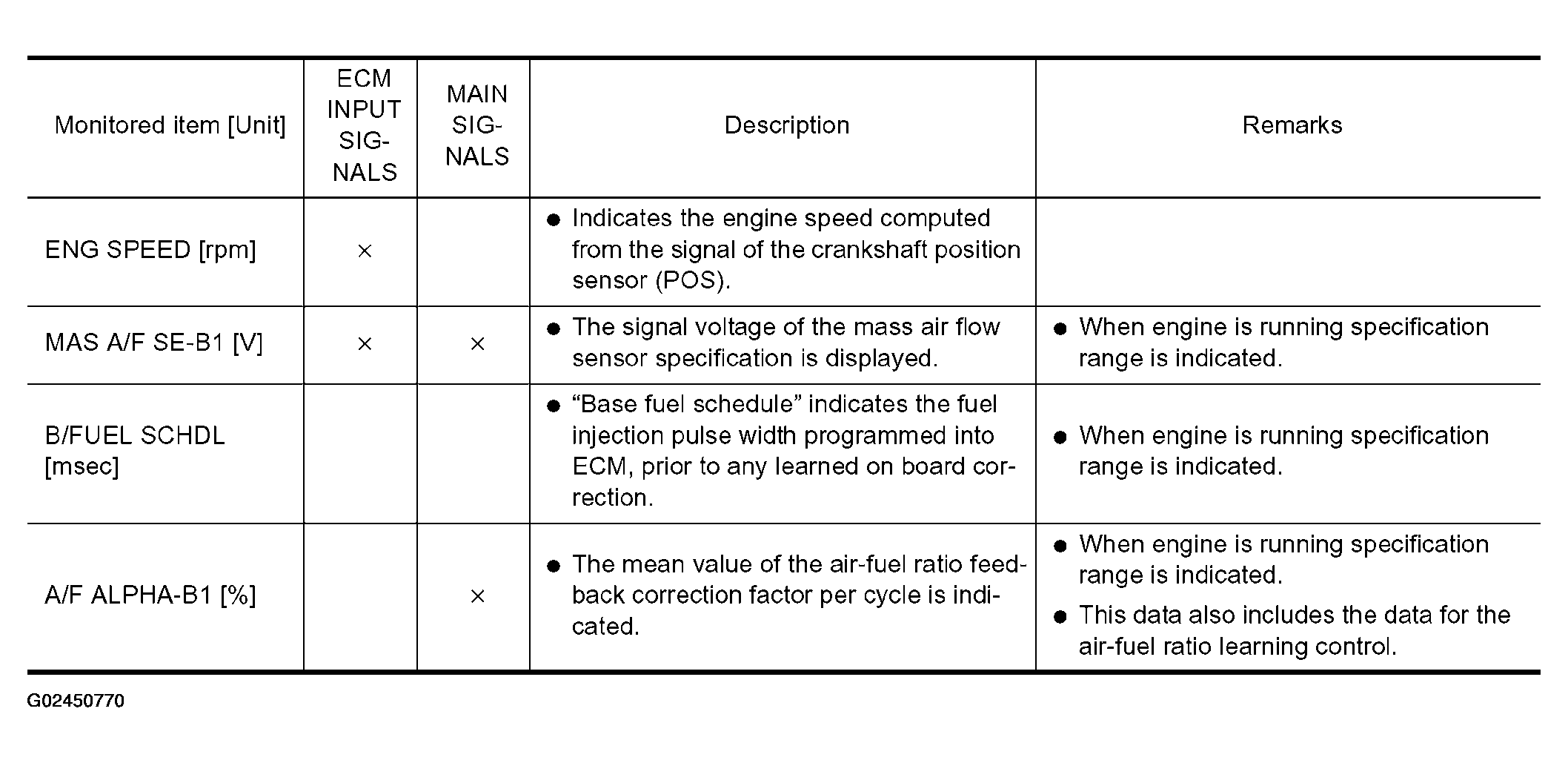

Fig 1: Data Monitor (Spec) Mode - Monitored Item Description Chart
G02450770Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
