ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

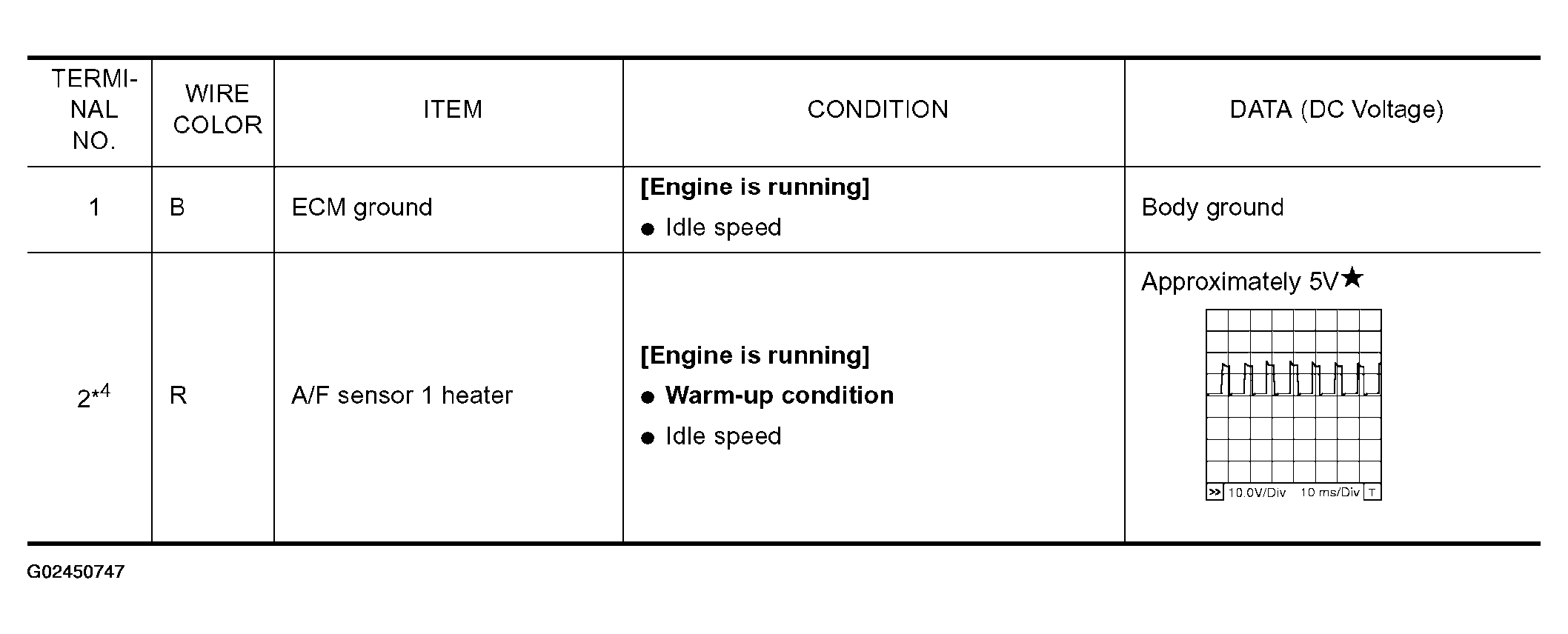

Fig 1: ECM Terminal Signal Reference Chart (1 Of 8)

G02450747

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For footnote reference explanation, see Fig 8.

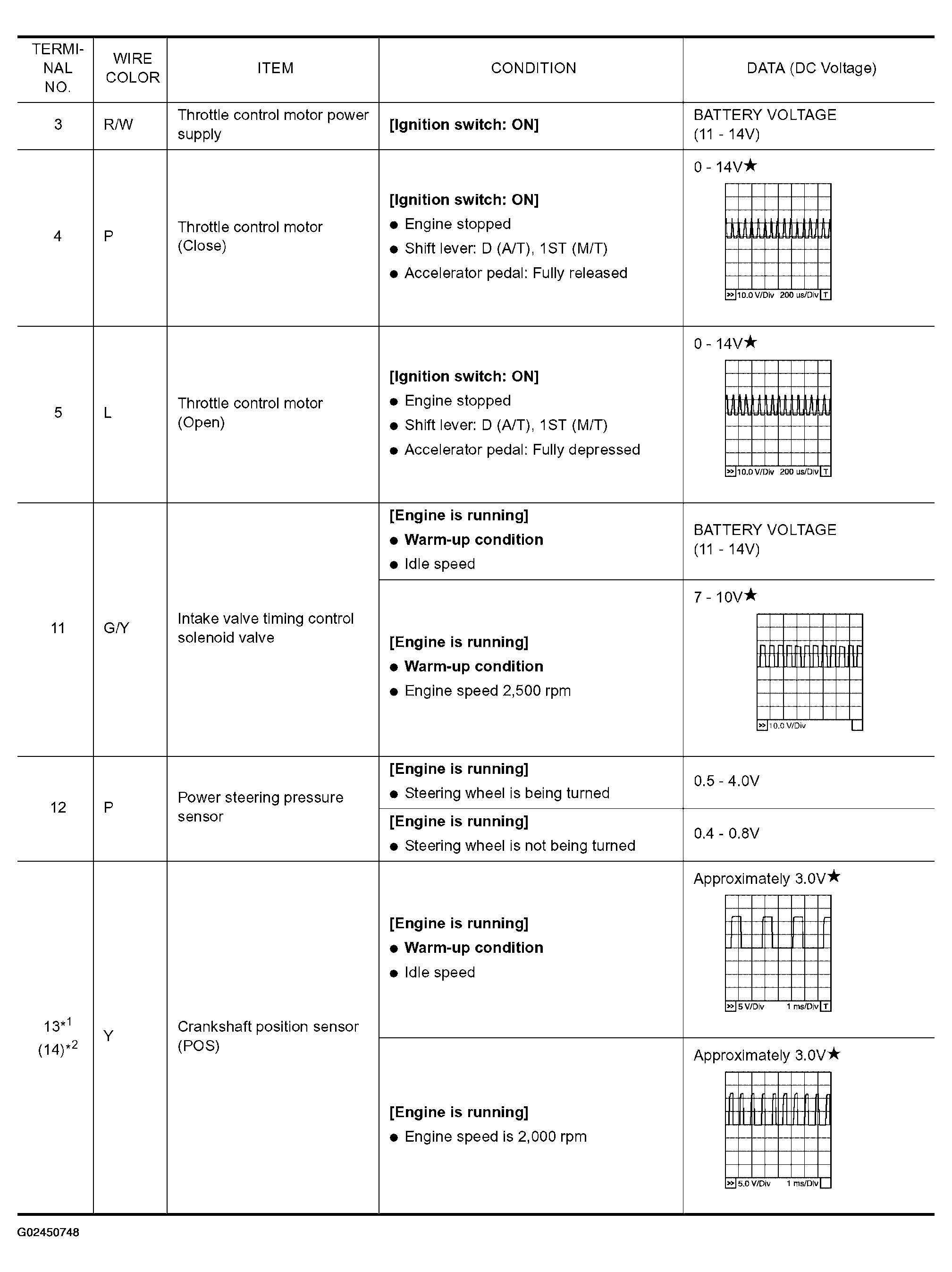

Fig 2: ECM Terminal Signal Reference Chart (2 Of 8)

G02450748

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For footnote reference explanation, see Fig 8.

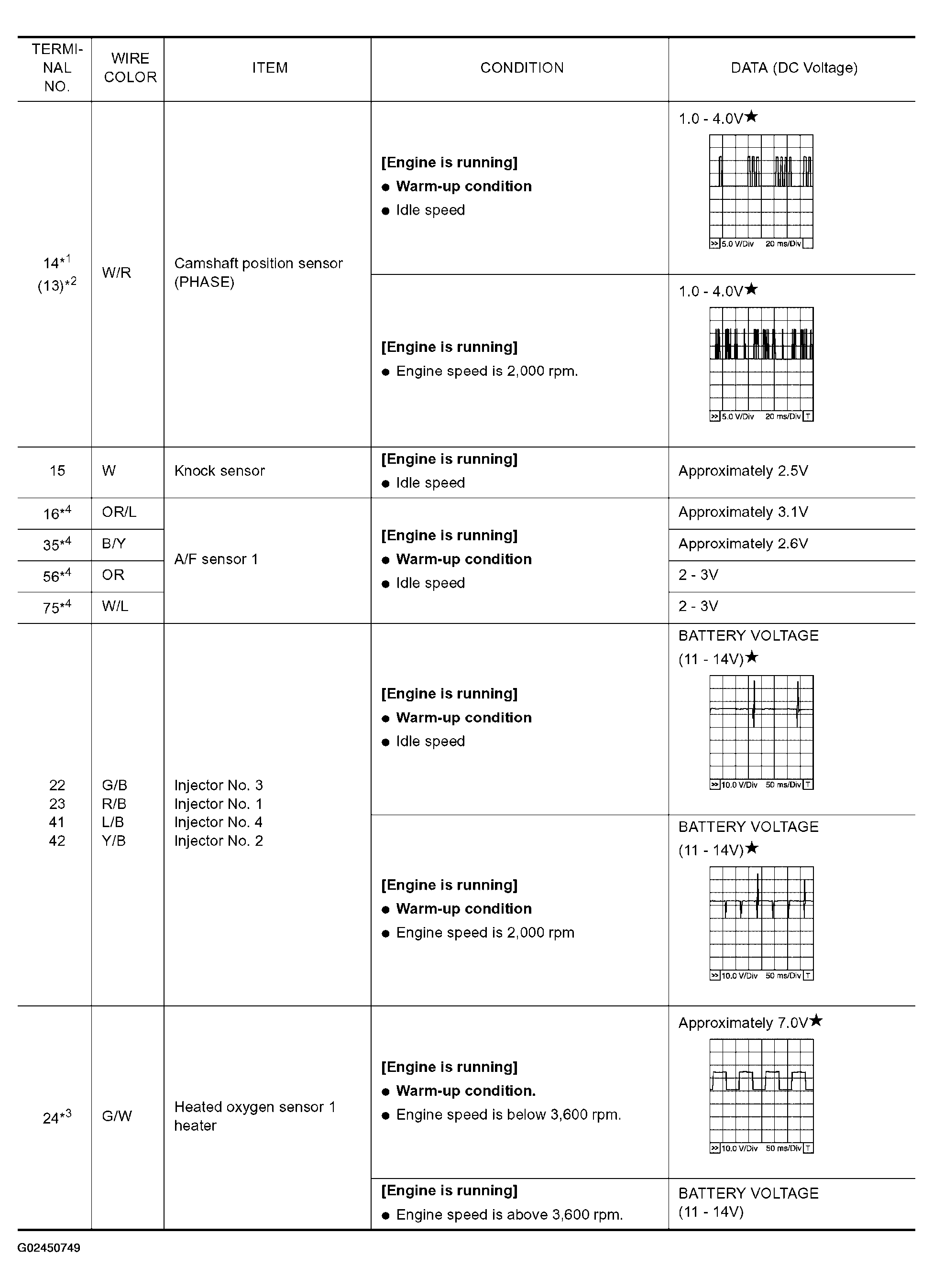

Fig 3: ECM Terminal Signal Reference Chart (3 Of 8)

G02450749

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For footnote reference explanation, see Fig 8.

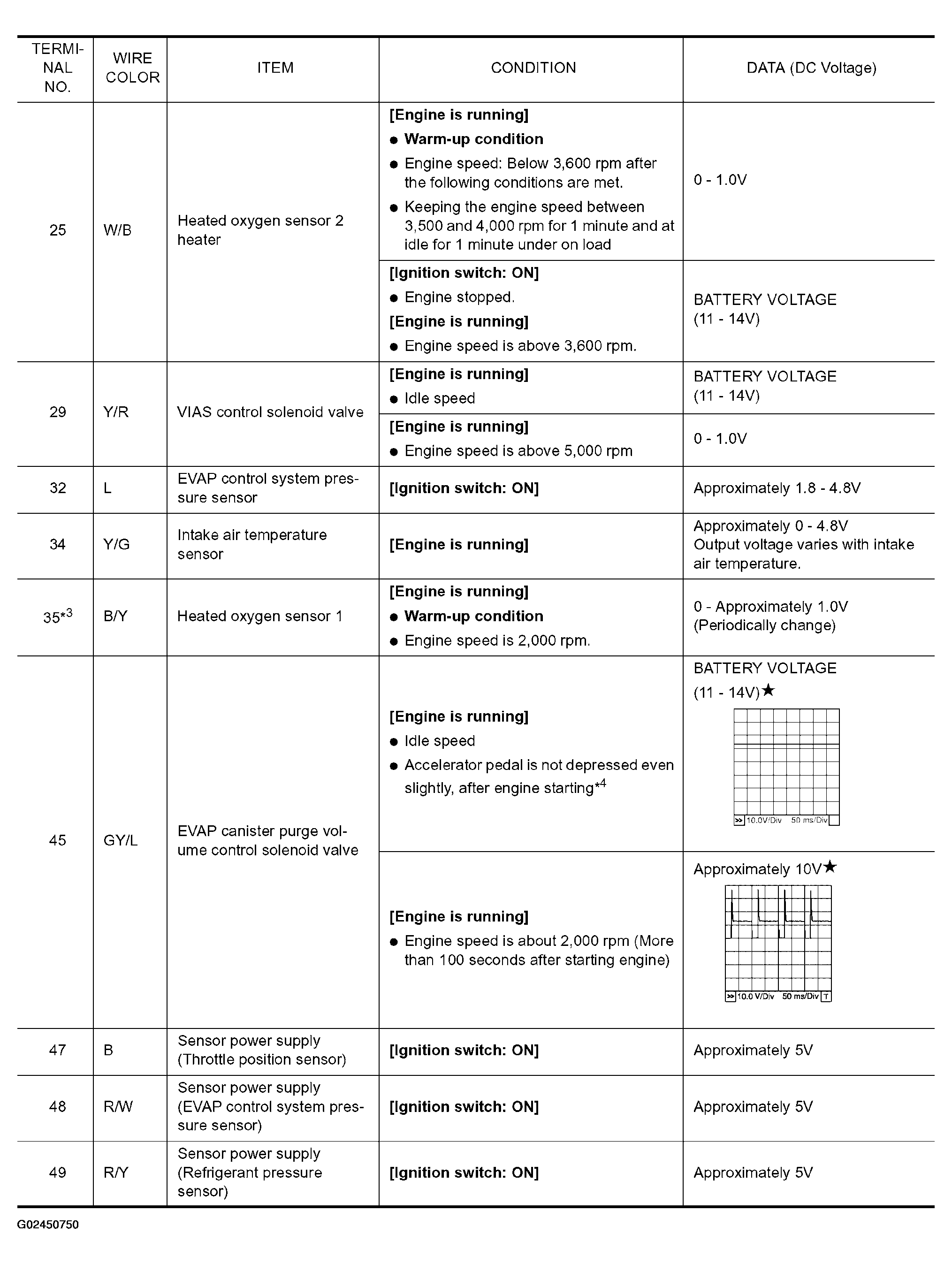

Fig 4: ECM Terminal Signal Reference Chart (4 Of 8)

G02450750

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For footnote reference explanation, see Fig 8.

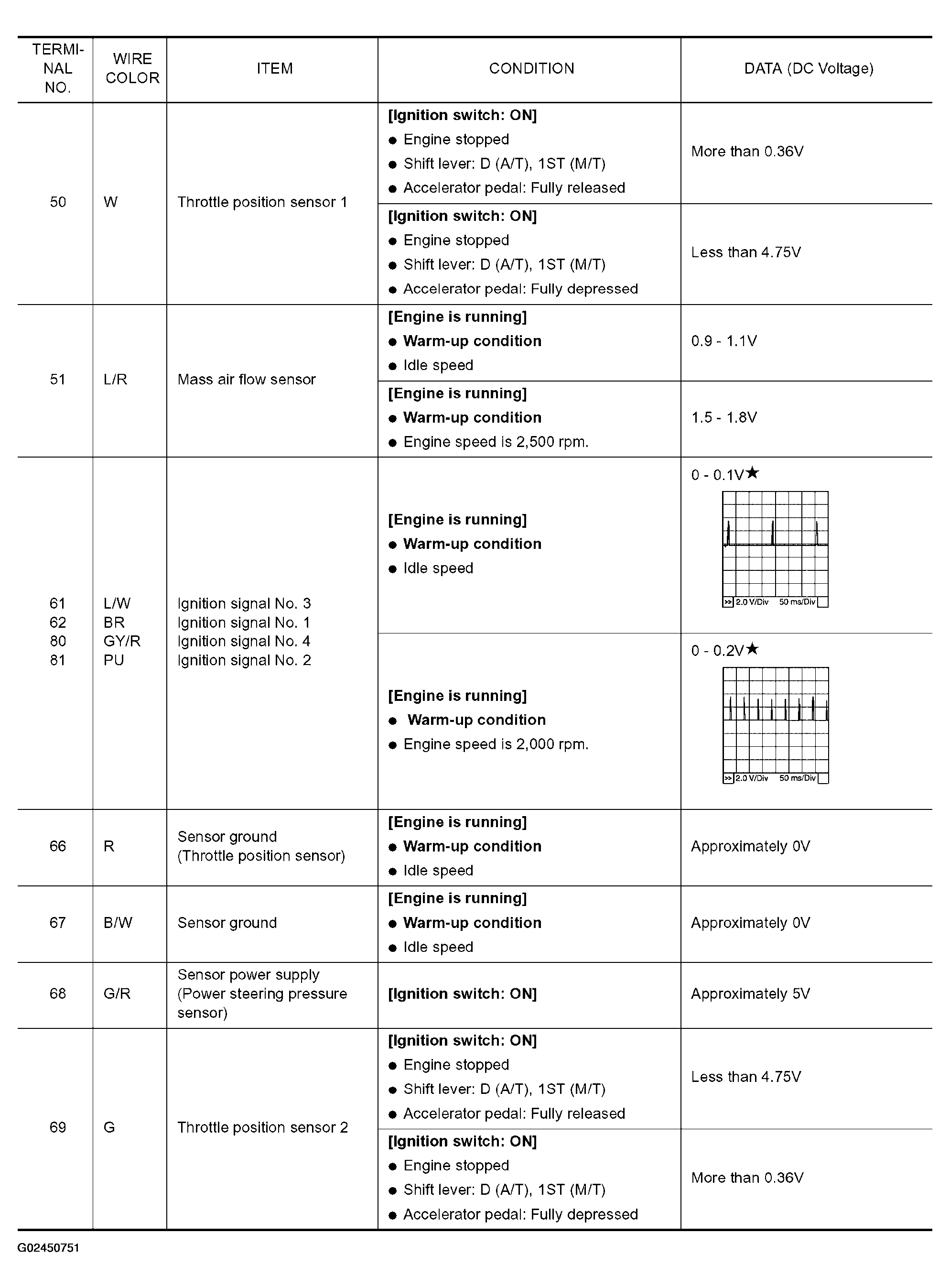

Fig 5: ECM Terminal Signal Reference Chart (5 Of 8)

G02450751

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For footnote reference explanation, see Fig 8.

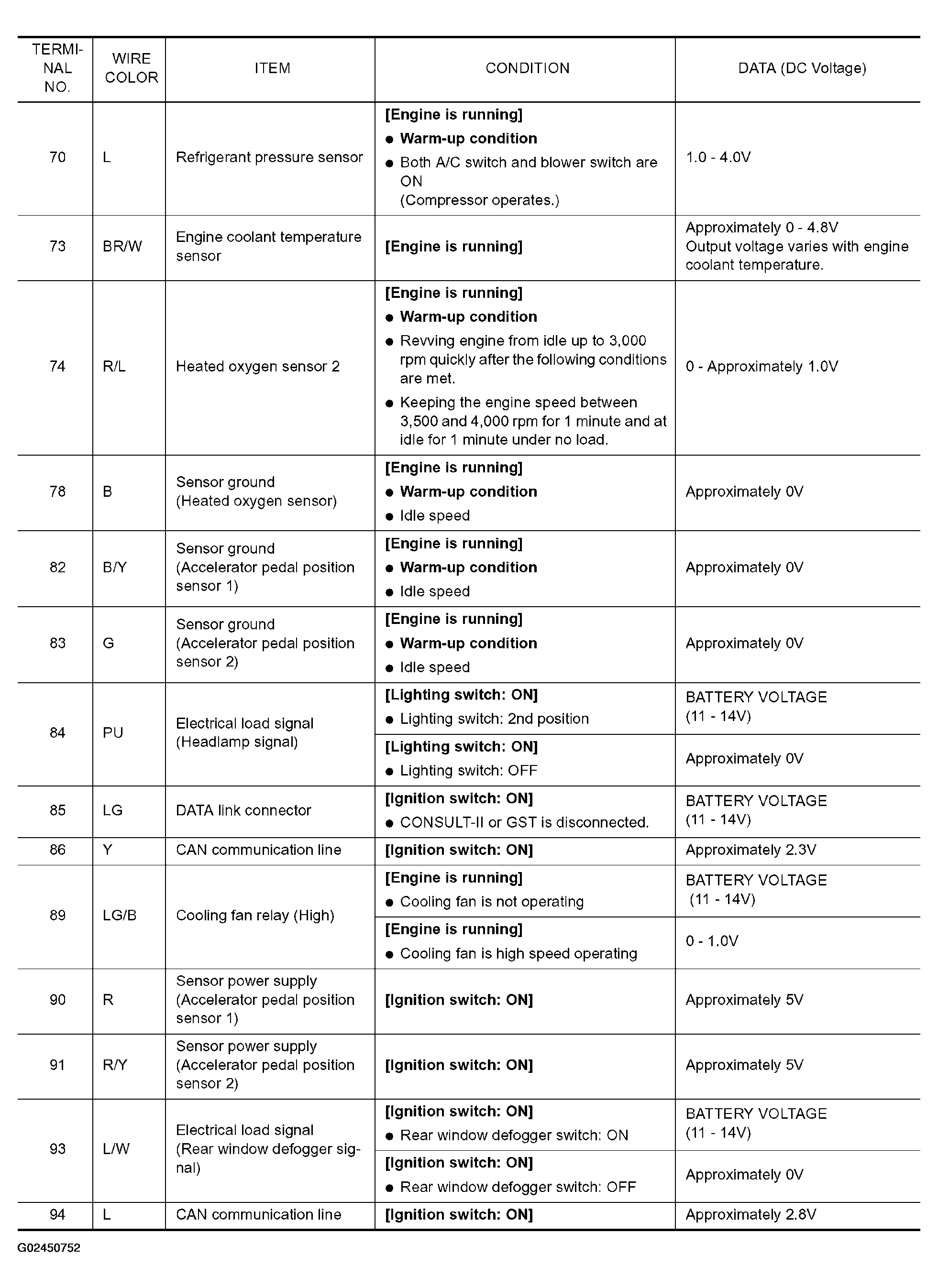

Fig 6: ECM Terminal Signal Reference Chart (6 Of 8)

G02450752

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For footnote reference explanation, see Fig 8.

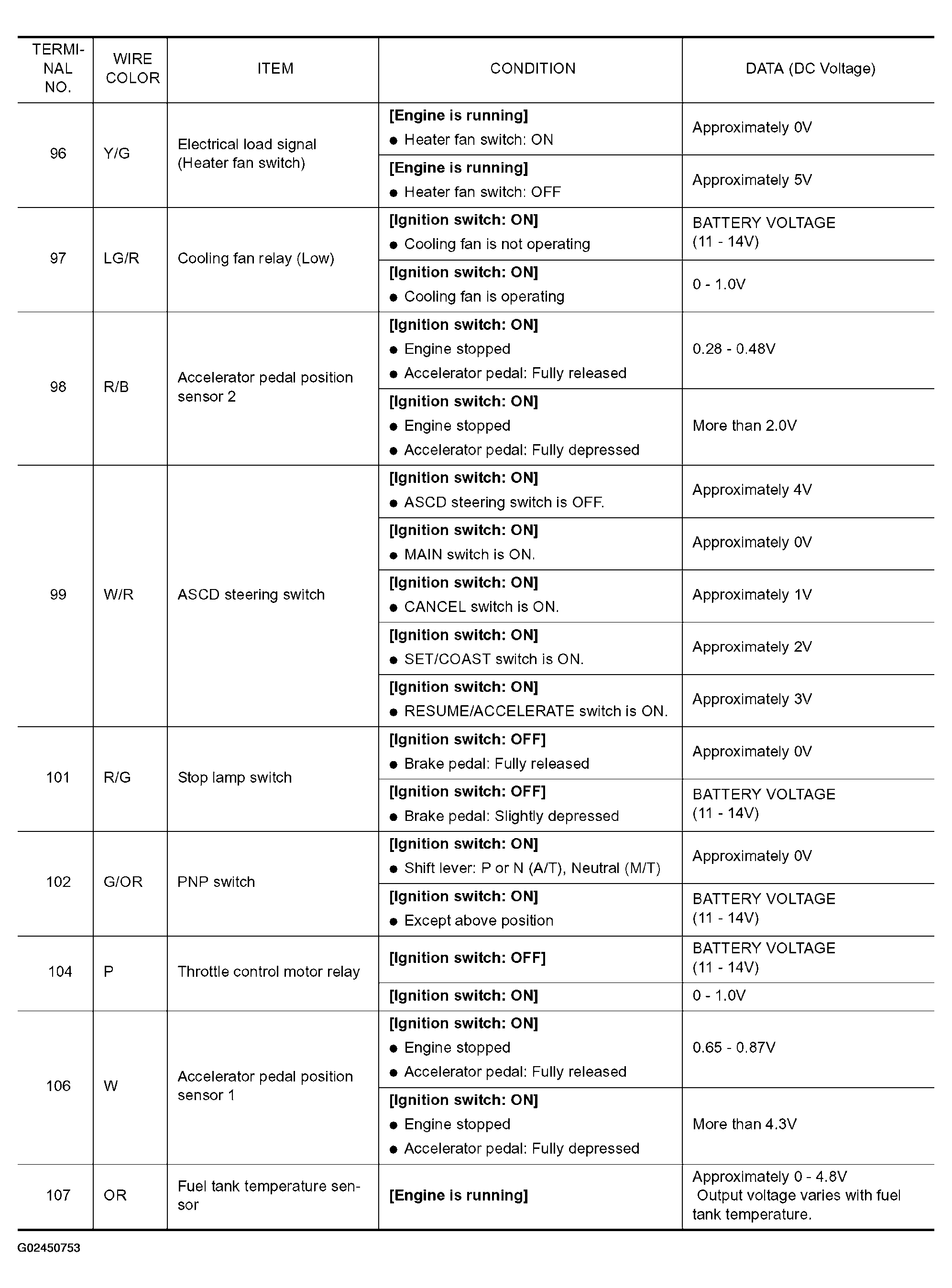

Fig 7: ECM Terminal Signal Reference Chart (7 Of 8)

G02450753

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For footnote reference explanation, see Fig 8.

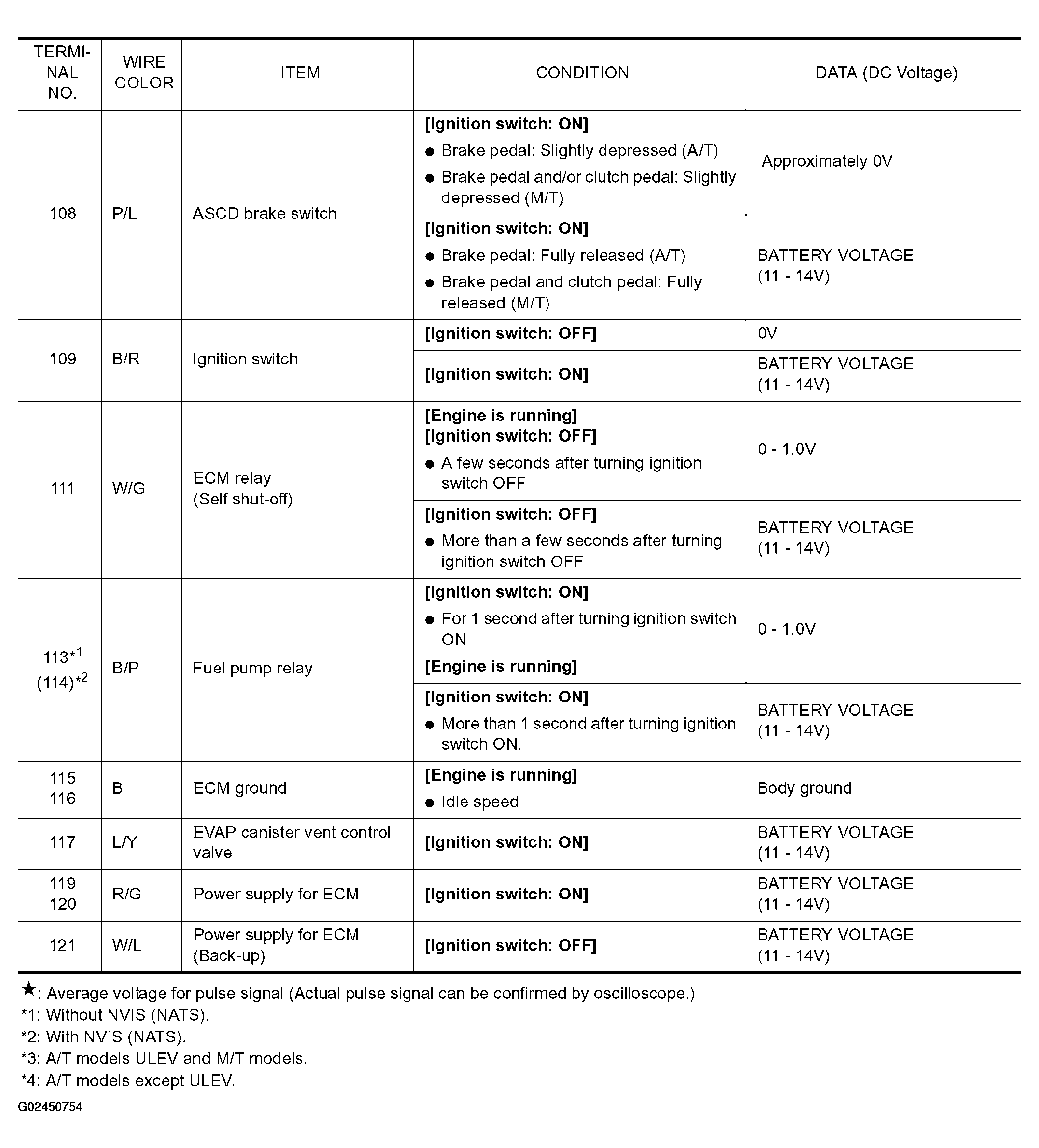

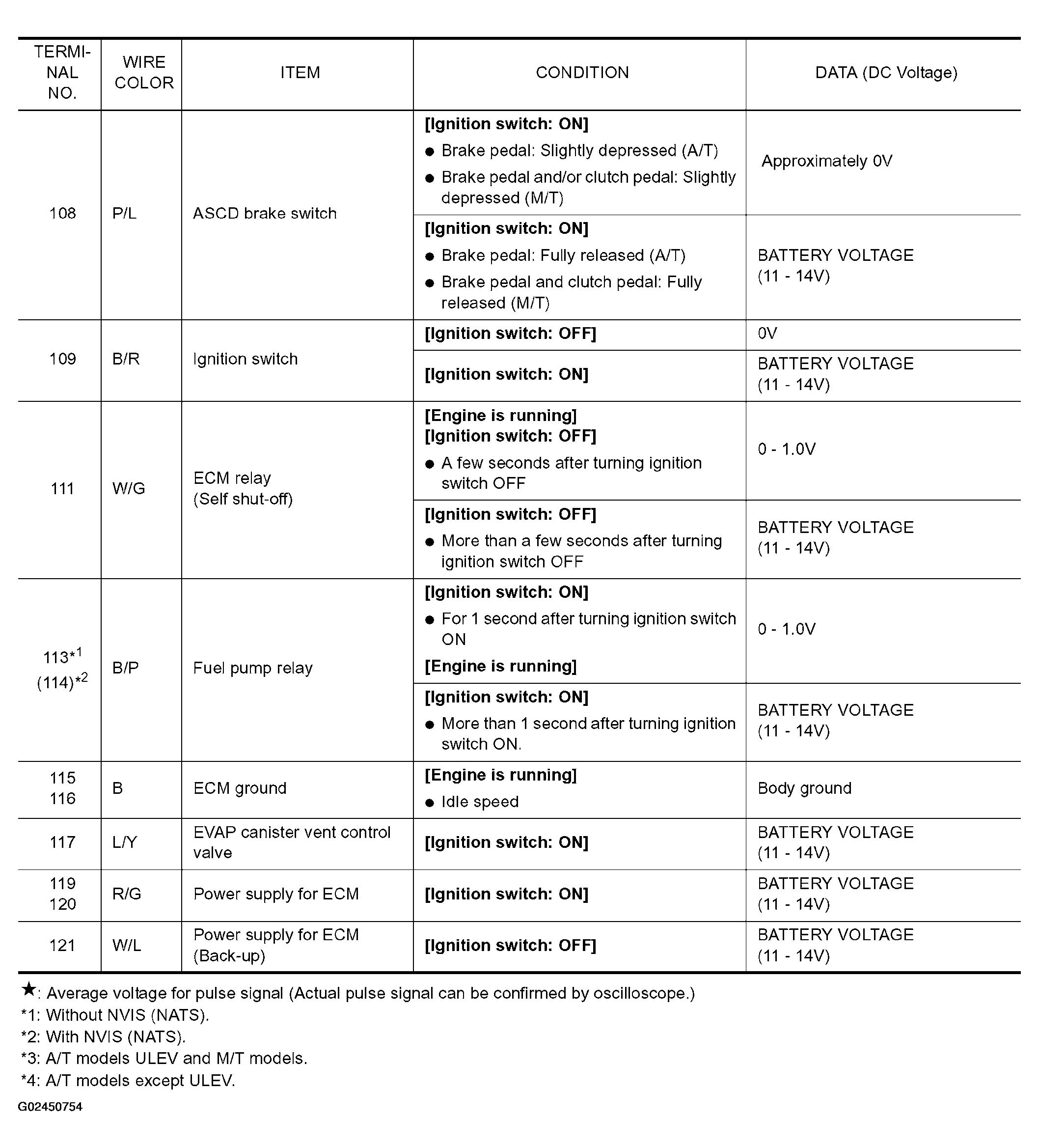

Fig 8: ECM Terminal Signal Reference Chart (8 Of 8)

G02450754

Courtesy of NISSAN MOTOR CO., U.S.A.
