A/T Models Except ULEV

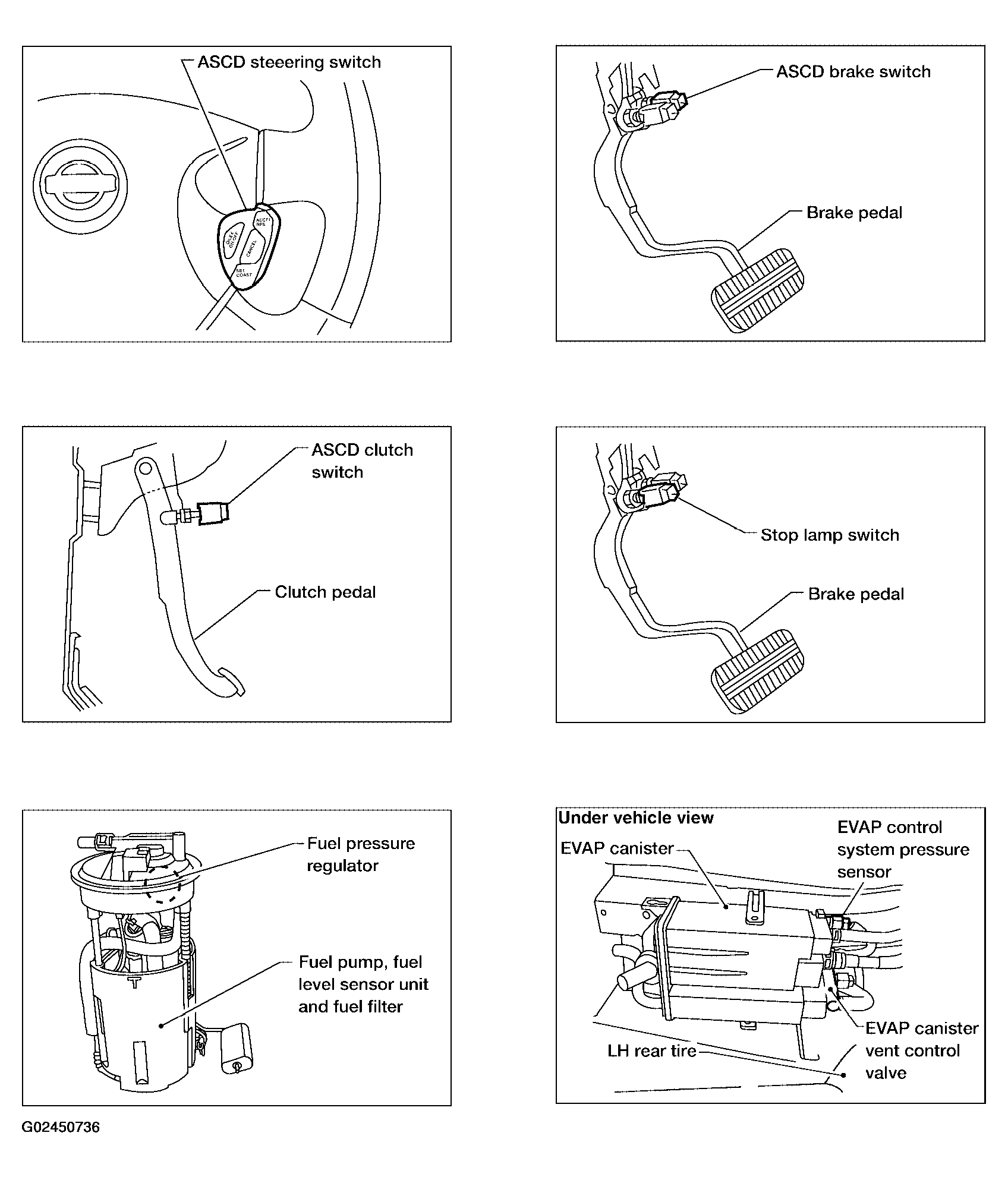

Fig 1: Engine Control Component Parts Location - A/T Models Except ULEV (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

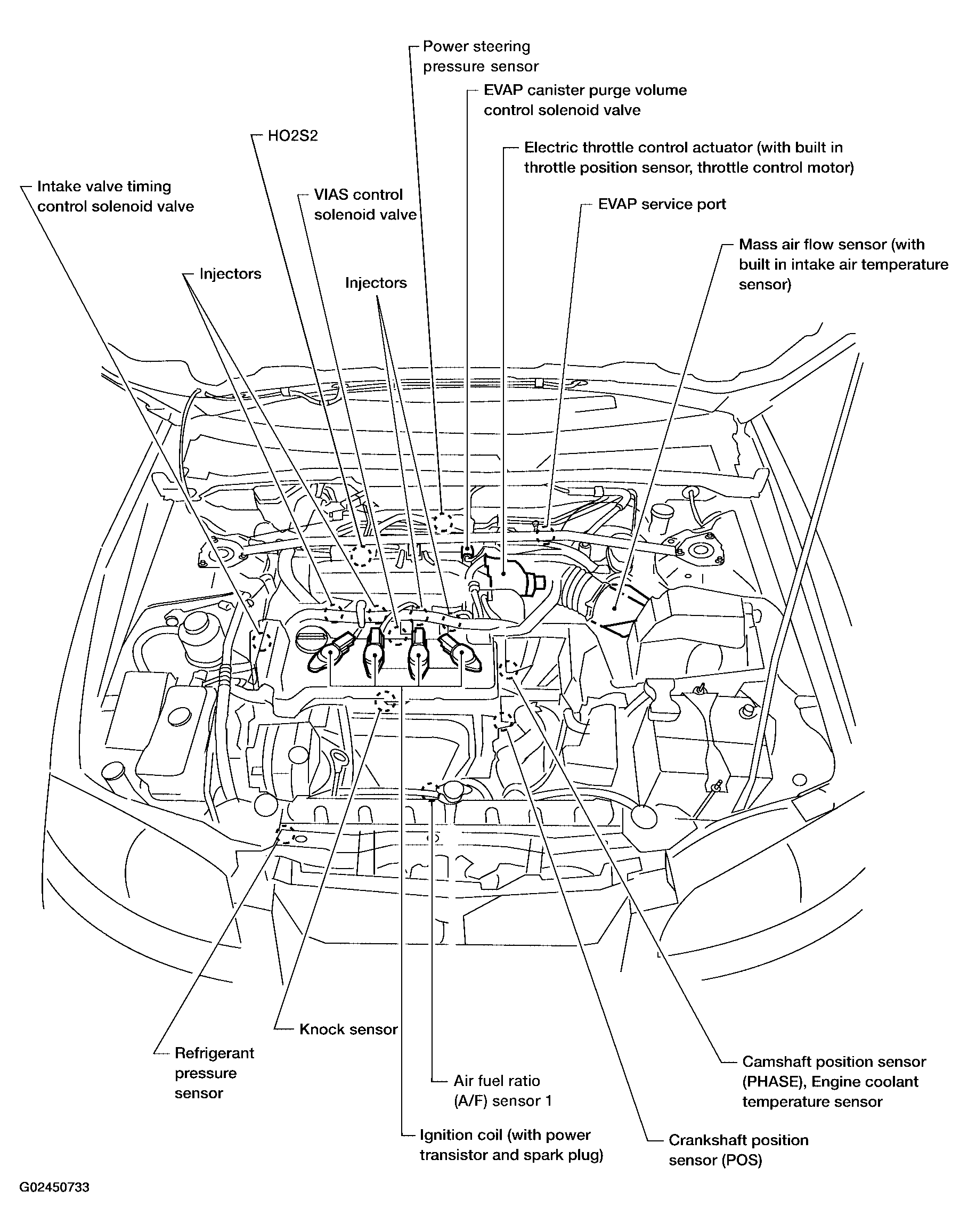

Fig 2: Engine Control Component Parts Location - A/T Models Except ULEV (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

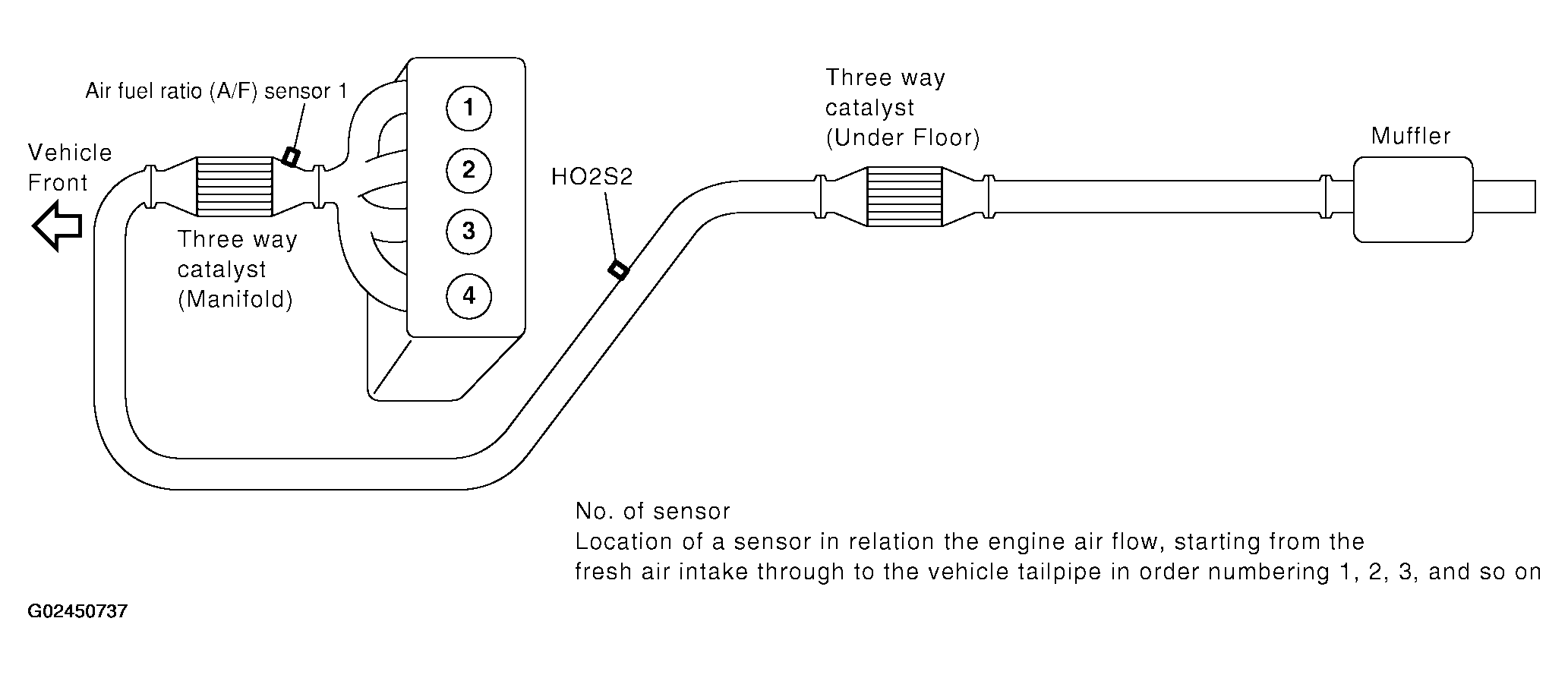

Fig 3: Engine Control Component Parts Location - A/T Models Except ULEV (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

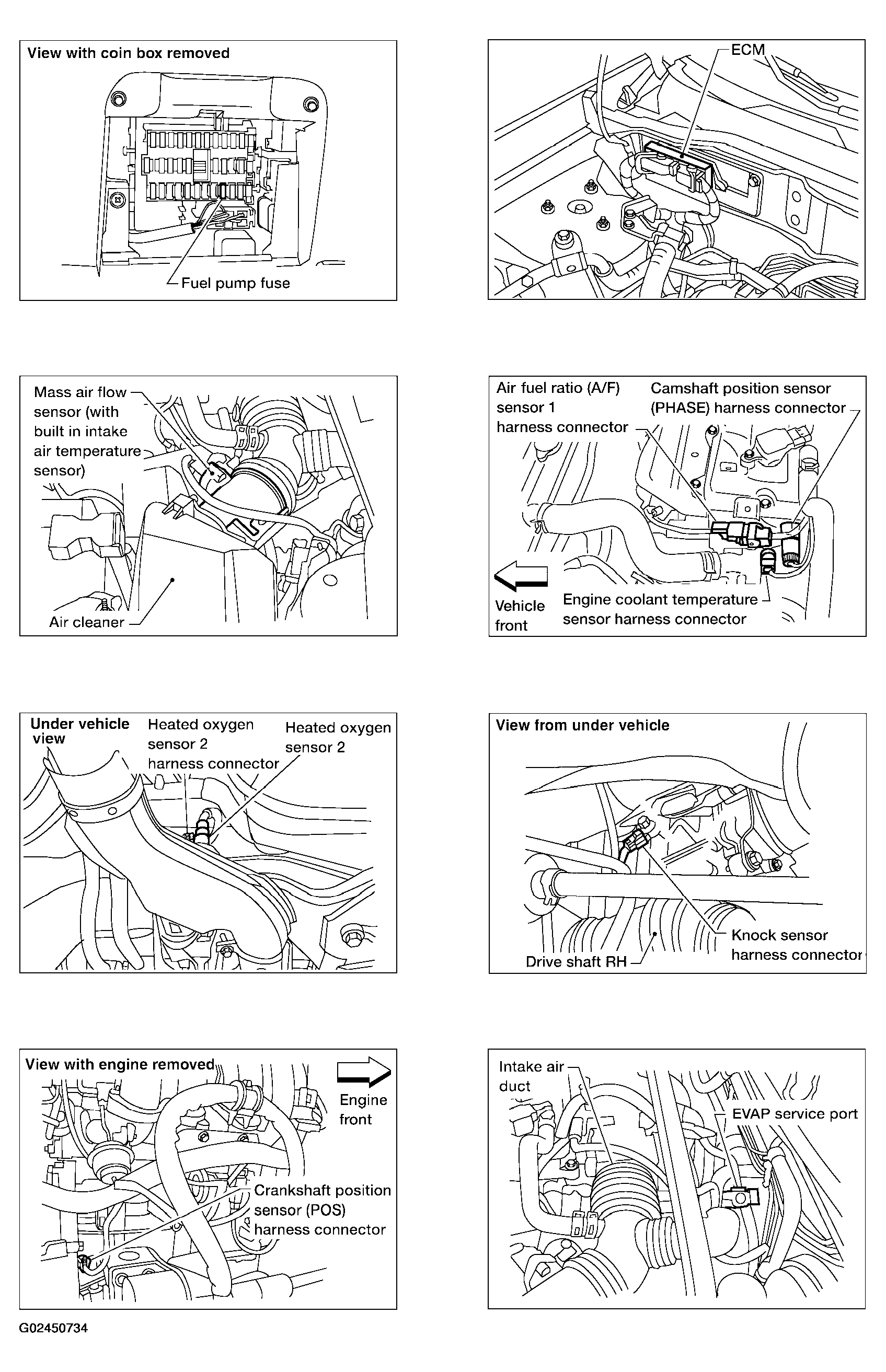

Fig 4: Engine Control Component Parts Location - A/T Models Except ULEV (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

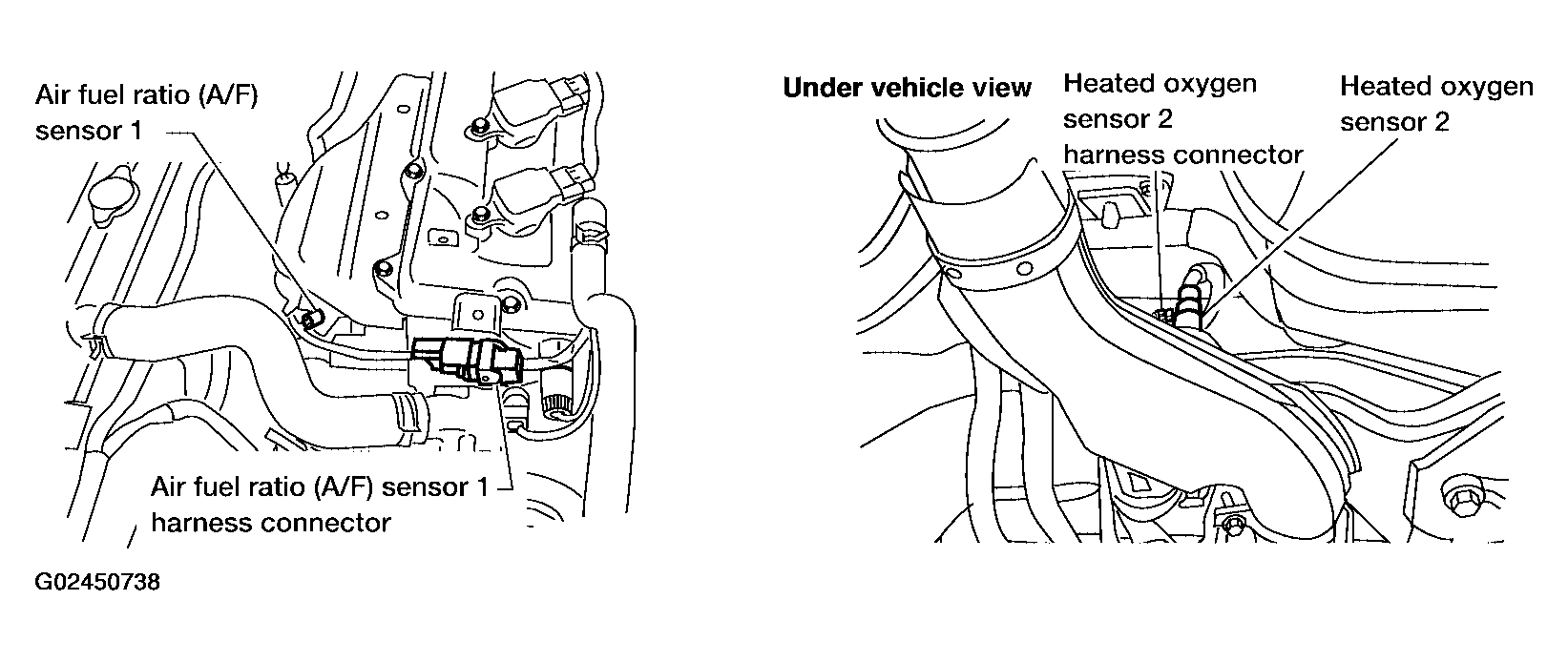

Fig 5: Engine Control Component Parts Location - A/T Models Except ULEV (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

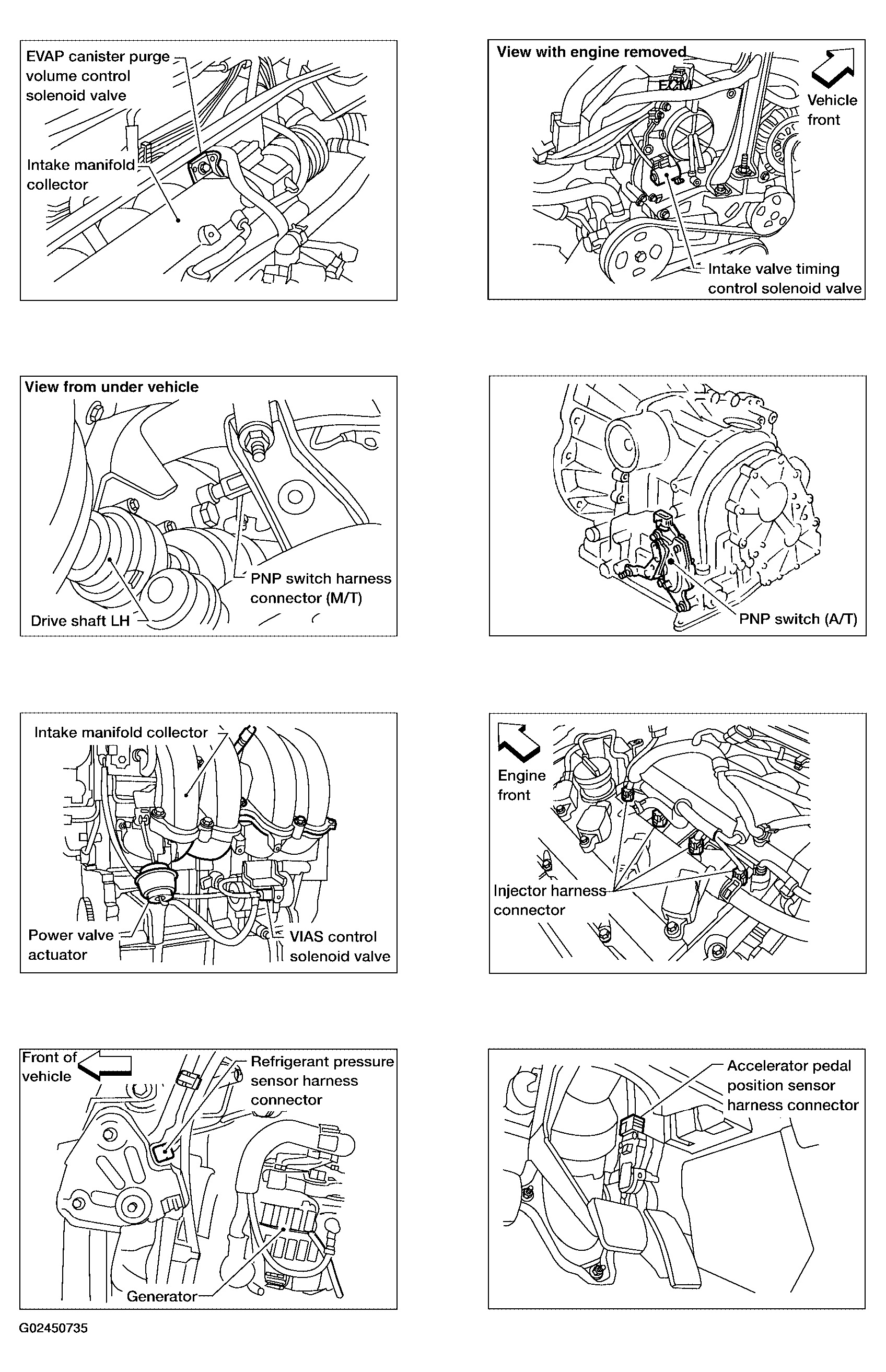

Fig 6: Engine Control Component Parts Location - A/T Models Except ULEV (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
