Inspection Procedure

Turn ignition switch OFF.
Connect GST to data link connector, which is located under LH dash panel near the fuse box cover.
Turn ignition switch ON.

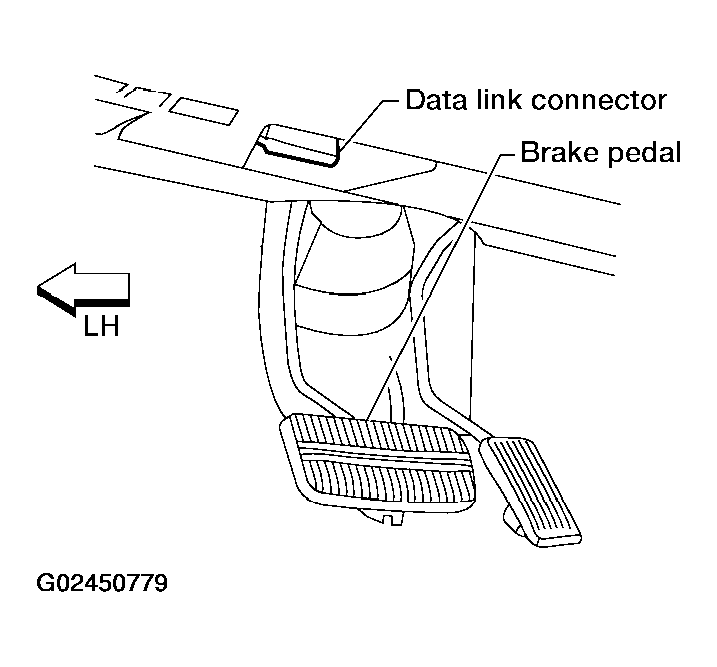

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens, sample screens are in Fig 2.)

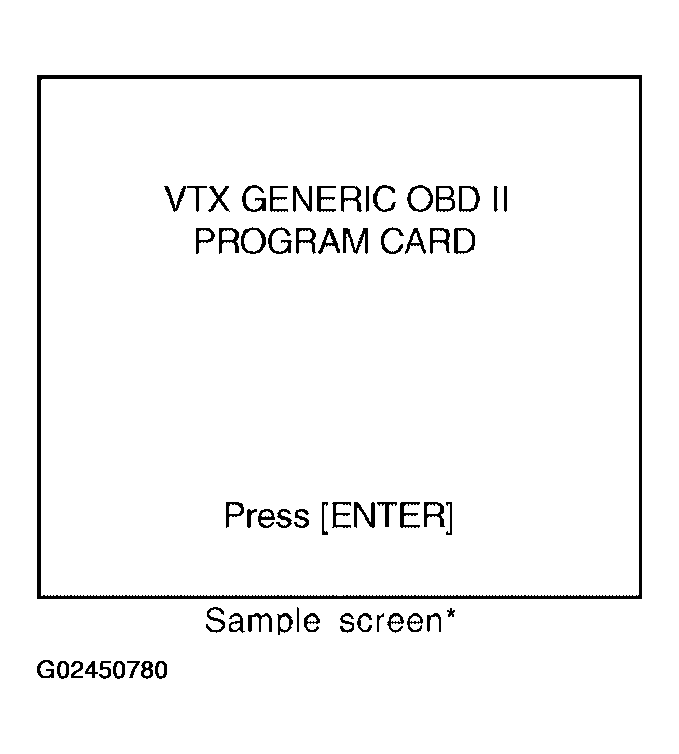

Fig 2: Identifying GST Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic service according to each service procedure.
For further information, see the GST Operation Manual of the tool maker.

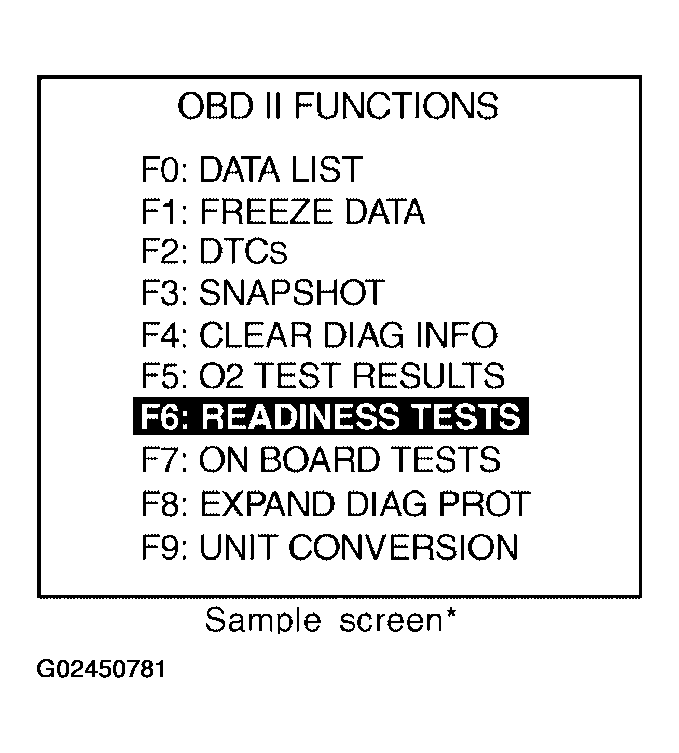

Fig 3: READINESS TEST, OBD II FUNCTIONS - GST Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
