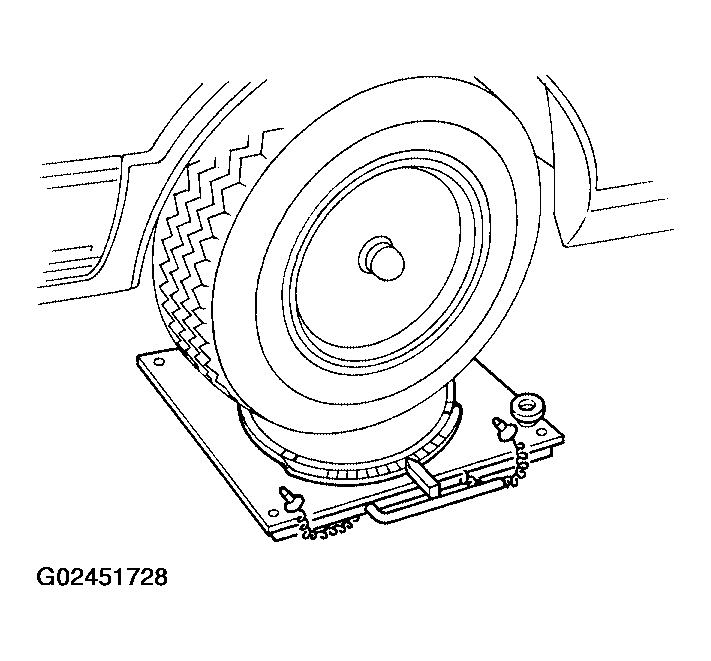

Front Wheel Turning Angle
- Rotate steering wheel all the way right and left; measure turning angle.
- Turning angle of full turns: Refer to FRONT WHEEL ALIGNMENT .
- If it is not within specification, check rack stroke.
- Rack stroke "S": Refer to STEERING GEAR AND LINKAGE
