Power Steering Gear And Linkage: Assembly

Install tie-rod inner sockets, dust boots and outer sockets.
Tighten outer socket lock nut.
- Tie-rod length "L": Refer to STEERING GEAR AND LINKAGE .

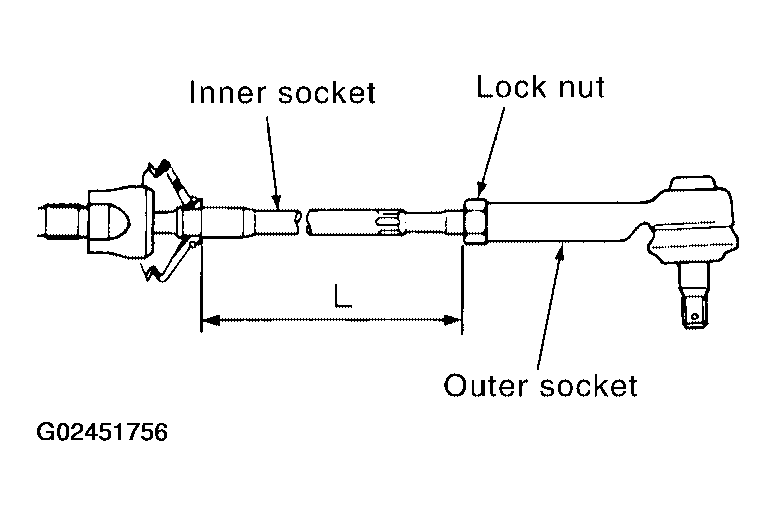

Fig 1: Installing Tie-Rod Inner Sockets, Dust Boots & Outer Sockets
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure rack stroke.
- Rack stroke "S": Refer to STEERING GEAR AND LINKAGE .

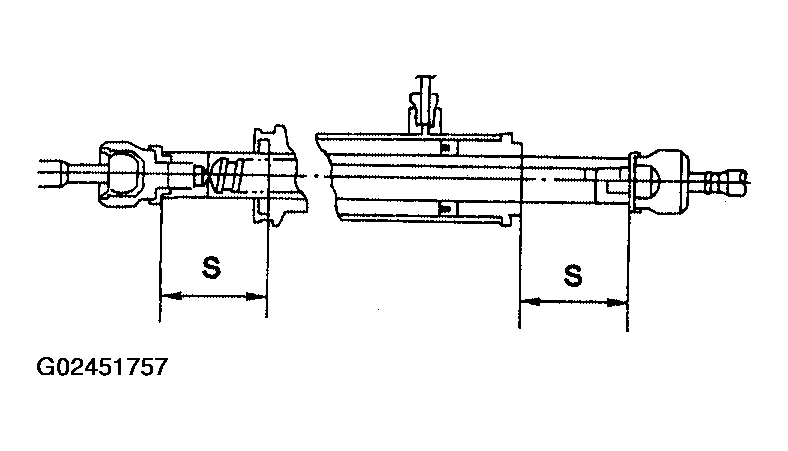

Fig 2: Measuring Rack Stroke
Courtesy of NISSAN MOTOR CO., U.S.A.
Before installing boot, coat the contact surfaces between boot and tie-rod with grease.

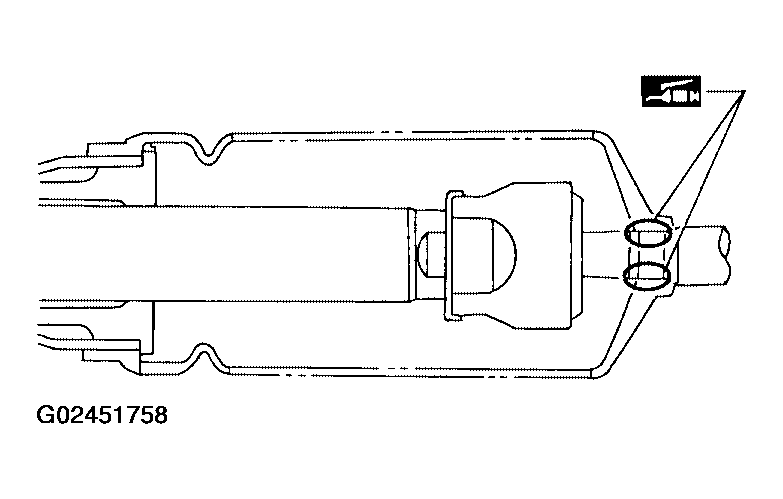

Fig 3: Coating Contact Surfaces Between Boot & Tie-Rod With Grease
Courtesy of NISSAN MOTOR CO., U.S.A.
Install boot clamps.
- Install large boot clamp using suitable tool and crimp securely.
- Install small boot clamp as shown.

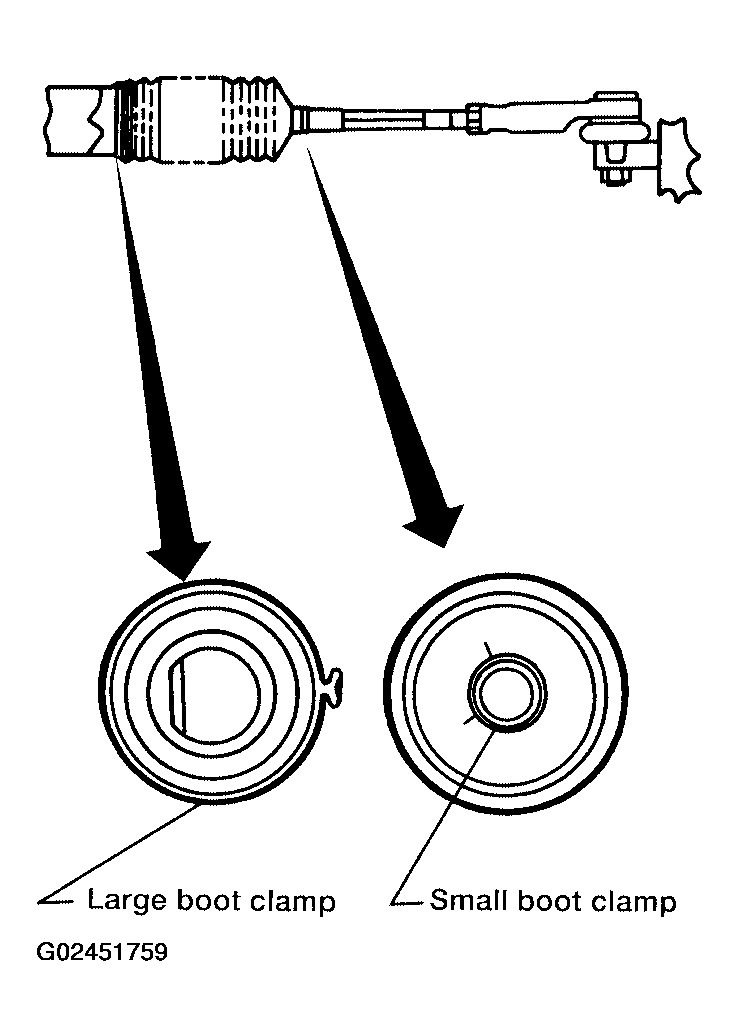

Fig 4: Installing Boot Clamps
Courtesy of NISSAN MOTOR CO., U.S.A.
