Disassembly and Assembly: Notes

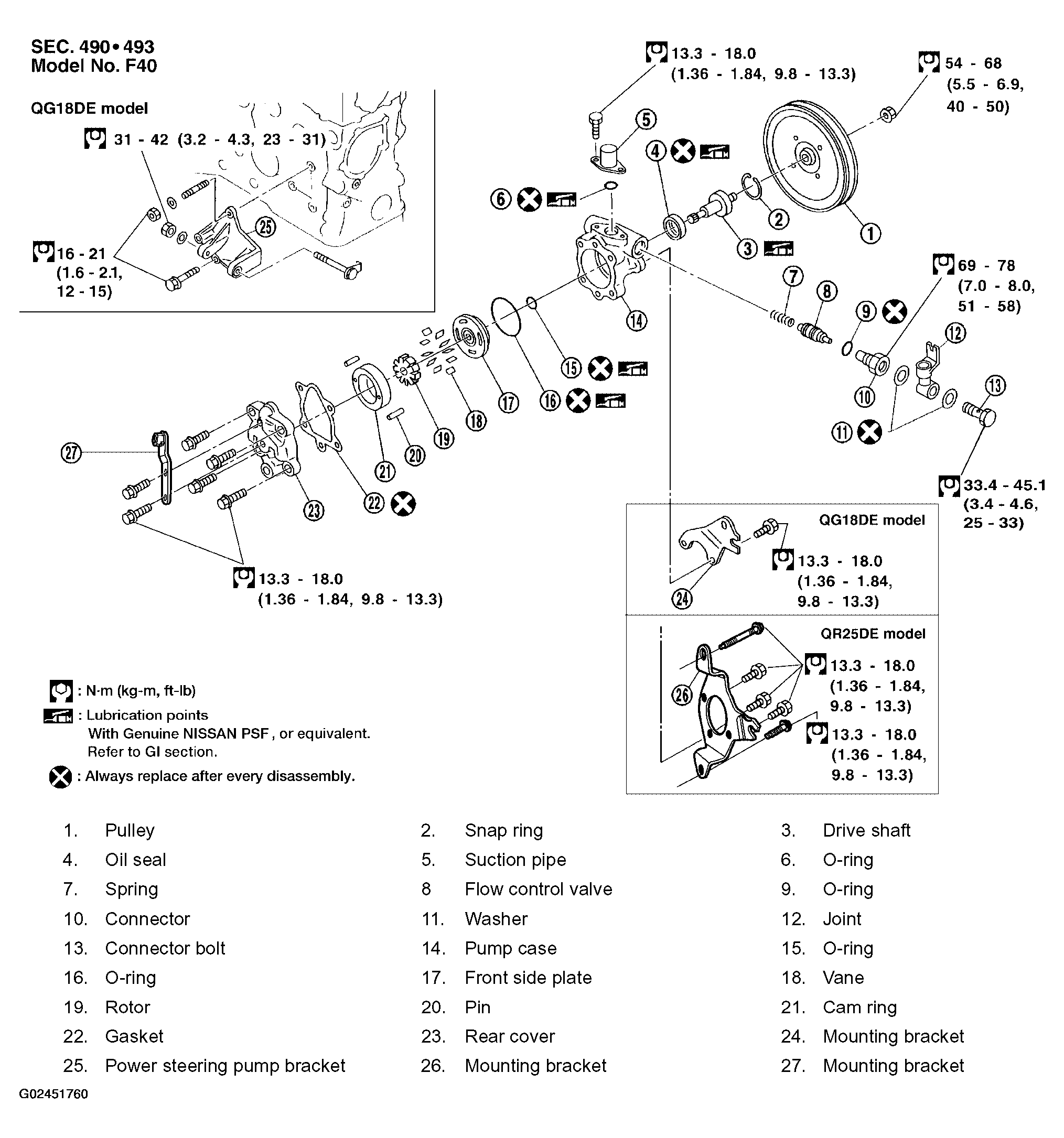

Fig 1: Exploded View Of Power Steering Oil Pump With Torque Specifications
G02451760Courtesy of NISSAN MOTOR CO., U.S.A.
