Pre-Disassembly Inspection

Disassemble the power steering oil pump only if the following items are found.

• Fluid leak from any point shown in the figure.
• Deformed or damaged pulley
• Poor performance

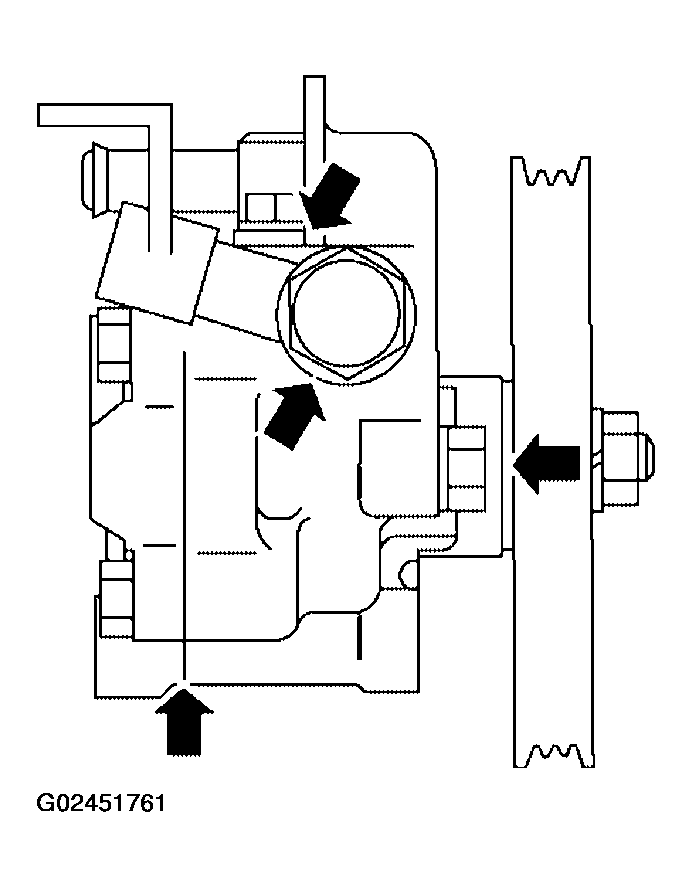

  Fig 1: Identifying Fluid Leakage Points

  Courtesy of NISSAN MOTOR CO., U.S.A.
