Disassembly and Assembly

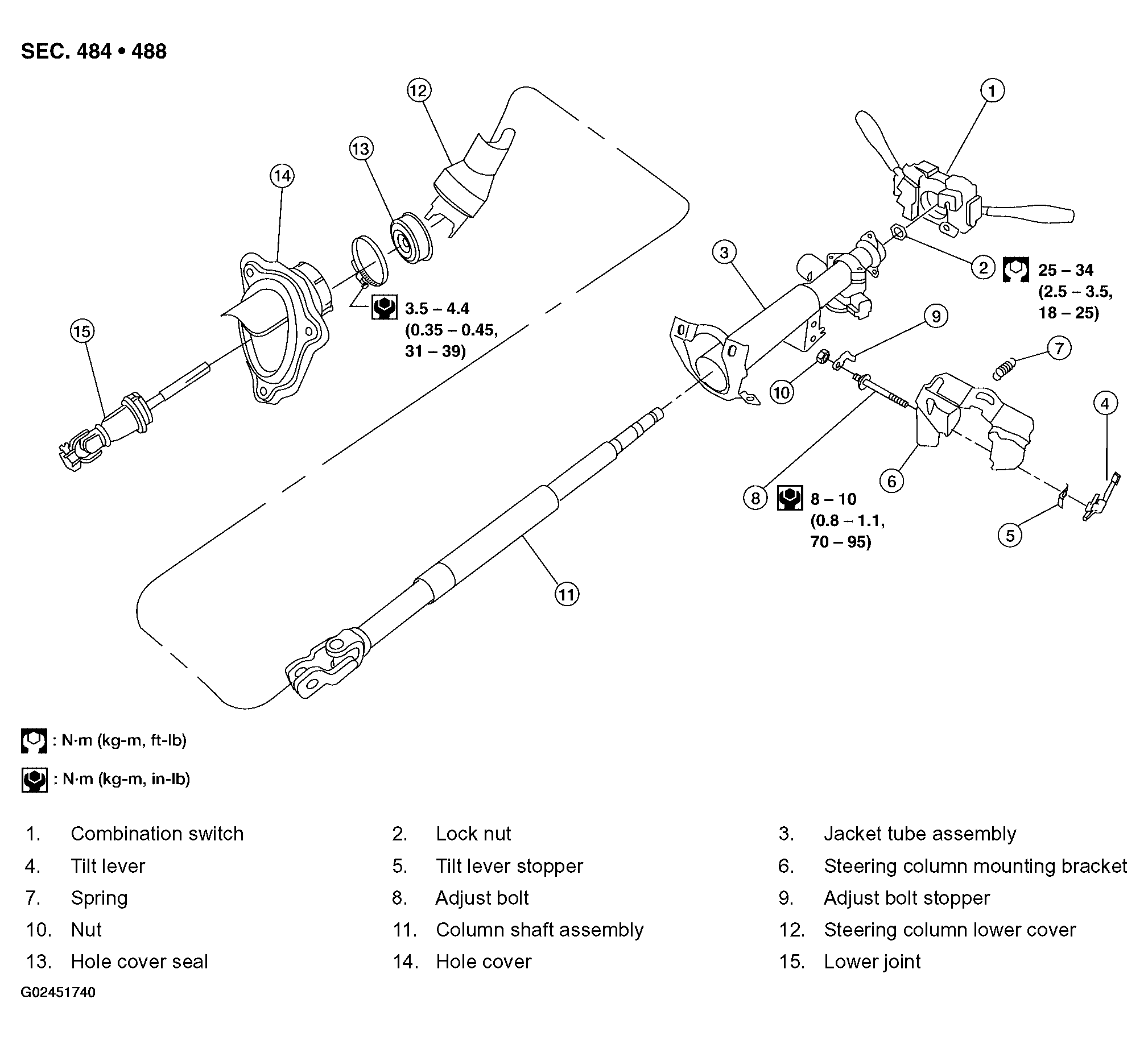

Fig 1: Disassembling Steering Column With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

When disassembling and assembling, unlock steering lock with key.
Install lock nut on steering column shaft and tighten the nut.

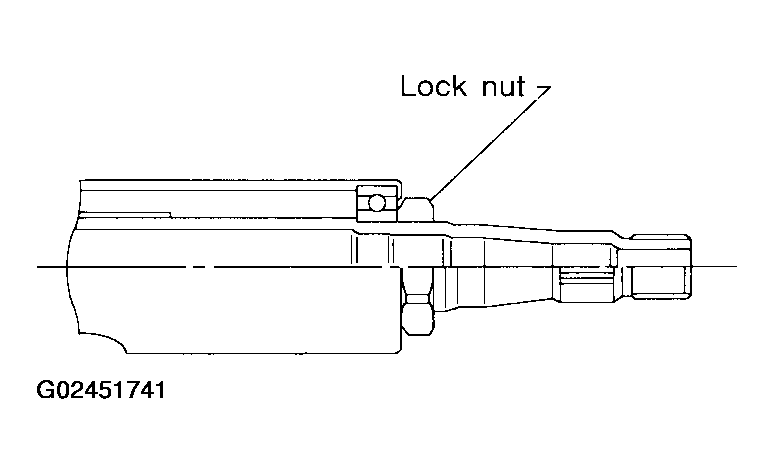

Fig 2: Installing Lock Nut On Steering Column Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Steering lock:
- Break self-shear type screws using a drill or other appropriate tool.

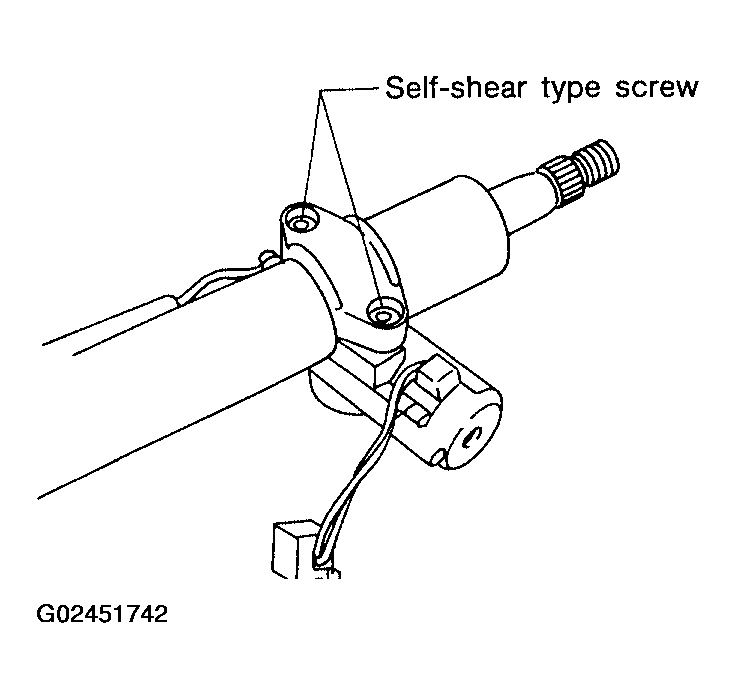

  Fig 3: Identifying Steering Lock
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Install new self-shear type screws, then tighten until screw heads break off.

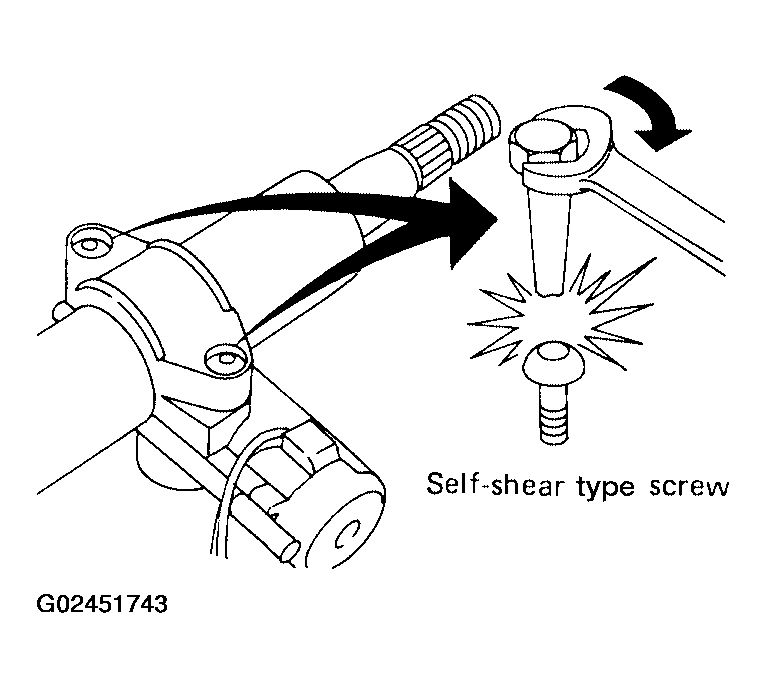

  Fig 4: Installing New Self-Shear Type Screws
  Courtesy of NISSAN MOTOR CO., U.S.A.
