Tilt Mechanism
After installing steering column, check tilt mechanism operation.

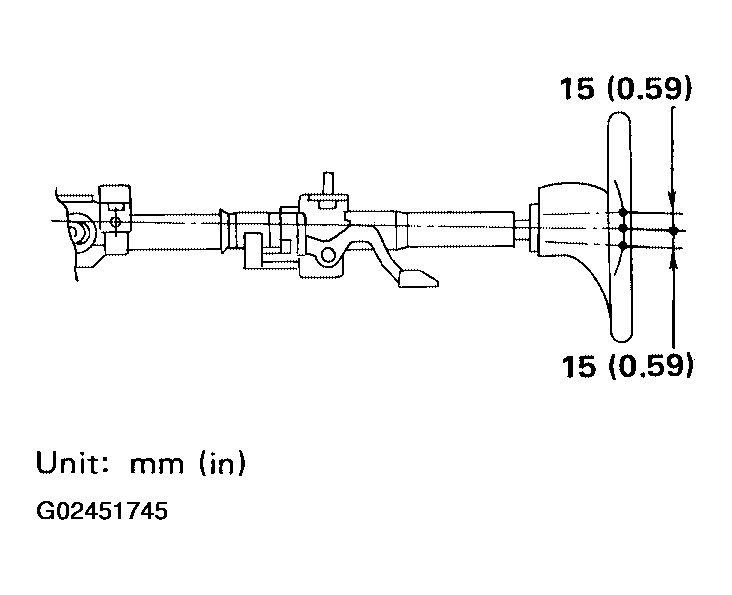

Fig 1: Checking Tilt Mechanism Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
