Installation is the reverse order of removal.
- When installing steering column, finger tighten all lower bracket and clamp retaining bolts; then tighten them securely. Do not apply undue stress to steering column.

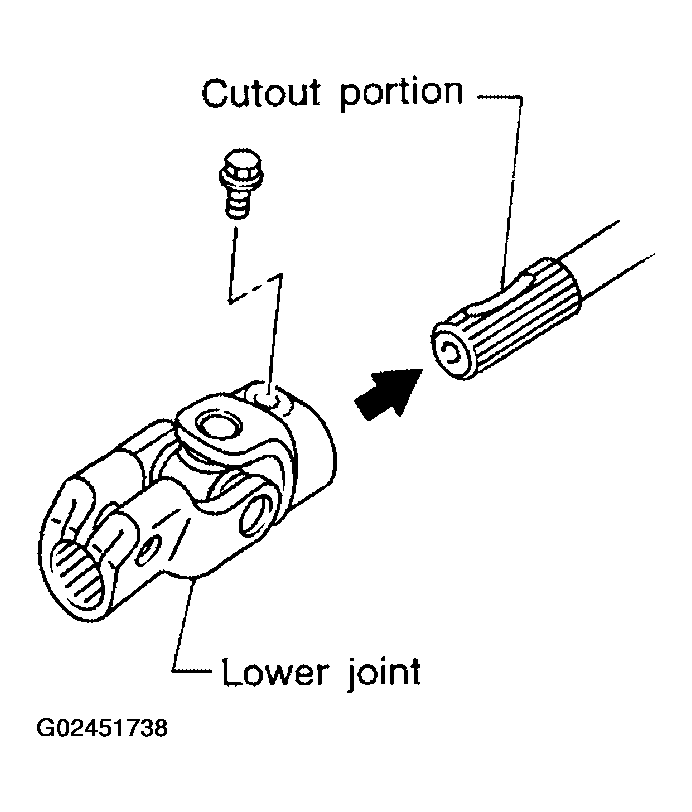

- When attaching coupling joint, be sure tightening bolt faces cutout portion.
Courtesy of NISSAN MOTOR CO., U.S.A.

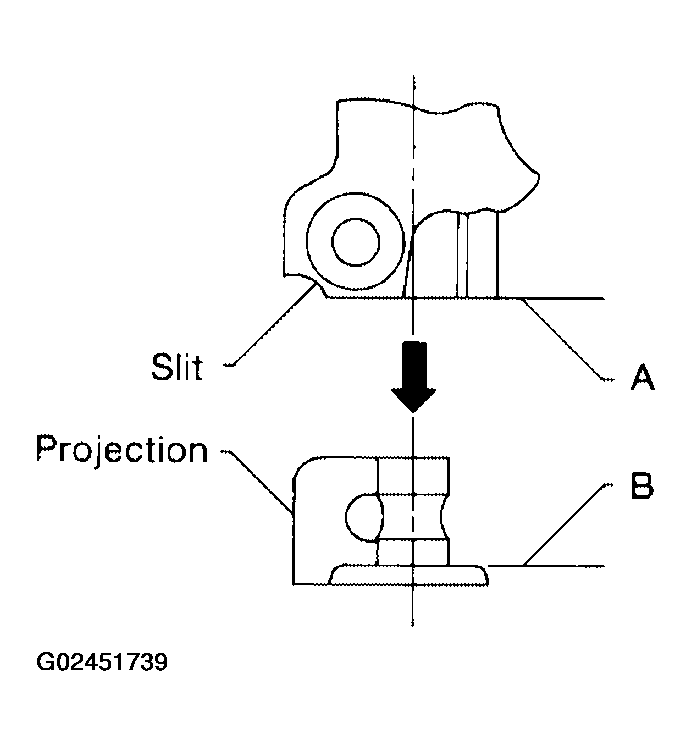

- Align slit of lower joint with projection on dust cover. Insert joint until surface A contacts surface B.
CAUTION:
After installation, turn steering wheel to make sure it moves smoothly. Ensure the number of turns are the same from the straight forward position to left and right locks. Be sure that the steering wheel is in a neutral position when driving straight ahead.
Courtesy of NISSAN MOTOR CO., U.S.A.
