DTC P0710: A/T Fluid Temperature Sensor Circuit
>>
Consult-II Reference Value In Data Monitor Mode
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Consult-II Reference Value In Data Monitor Mode
Remarks: Specification data are reference values.

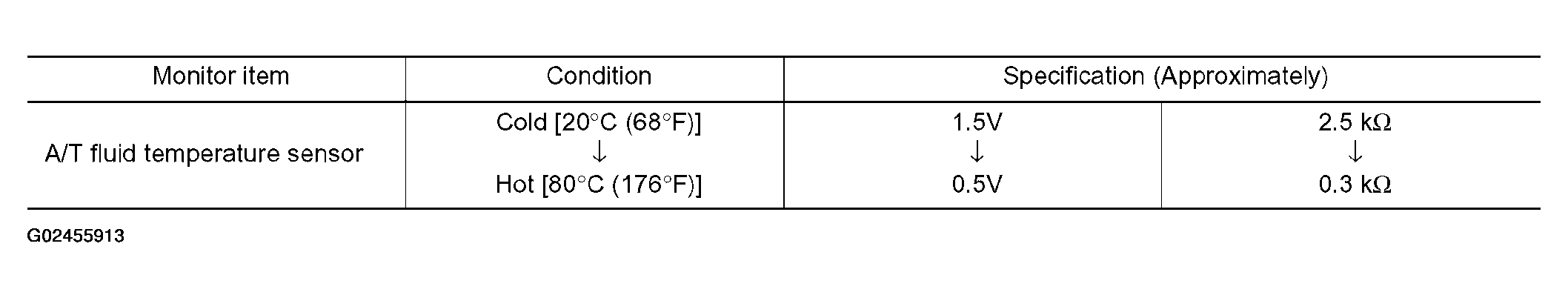

Fig 1: CONSULT-II Reference Value In Data Monitor Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
