11 Position

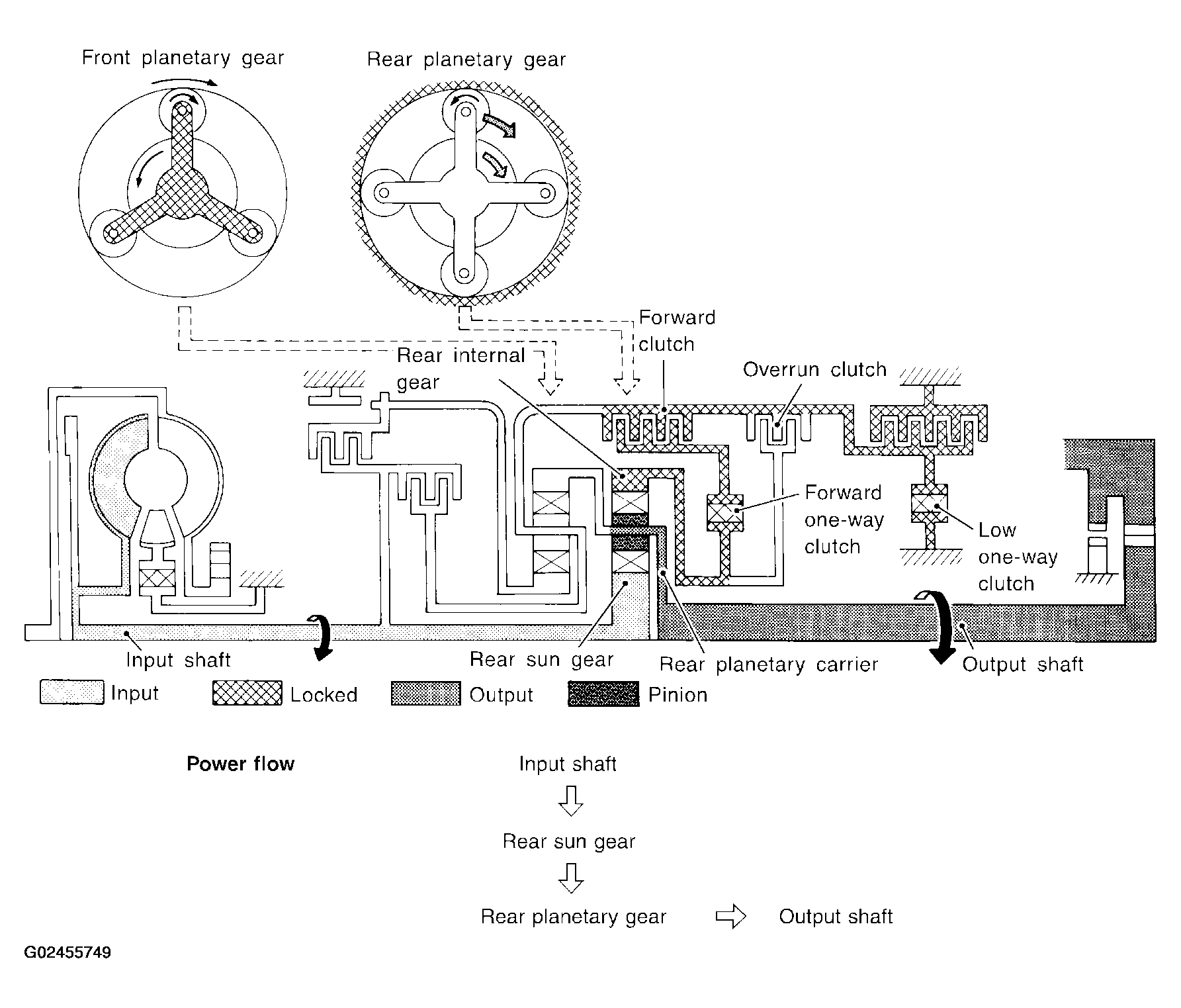

Fig 1: Power Transmission Position 1
G02455749Courtesy of NISSAN MOTOR CO., U.S.A.

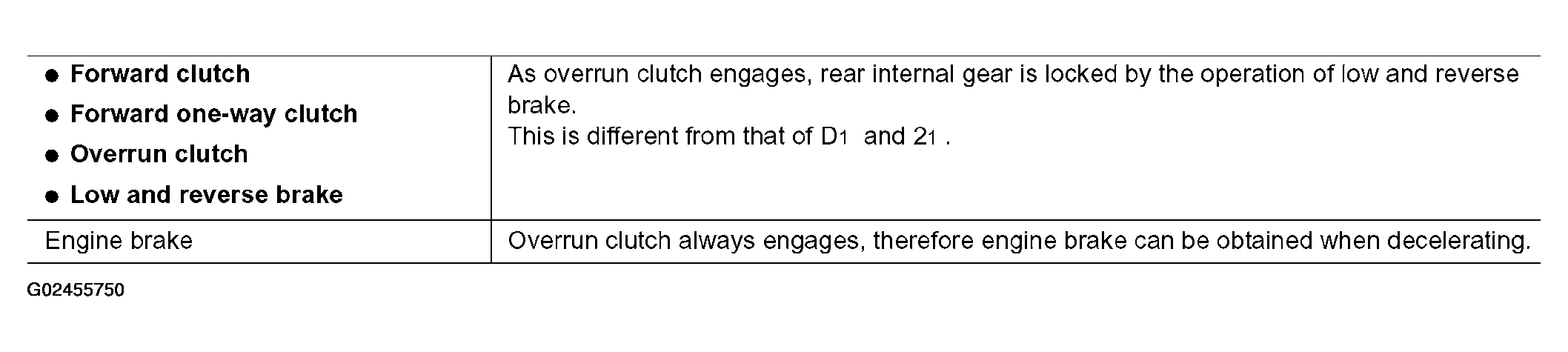

Fig 2: Clutch Engagement Reference Chart (1 Of 6)
G02455750Courtesy of NISSAN MOTOR CO., U.S.A.
