Automatic Transmission (Re4F04B): Overhaul: Components

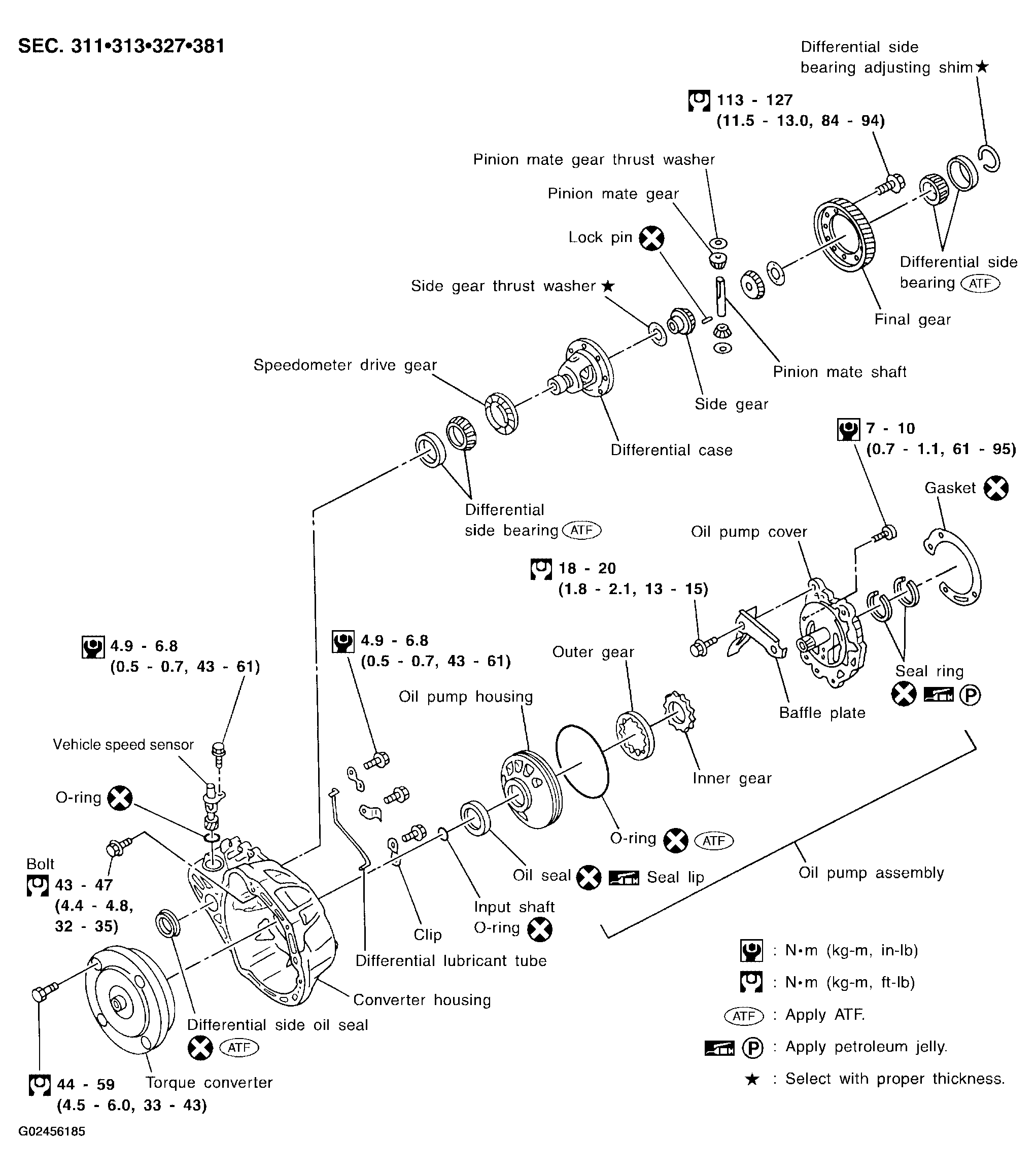

Fig 1: Exploded View Of Transmission (1 Of 3) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

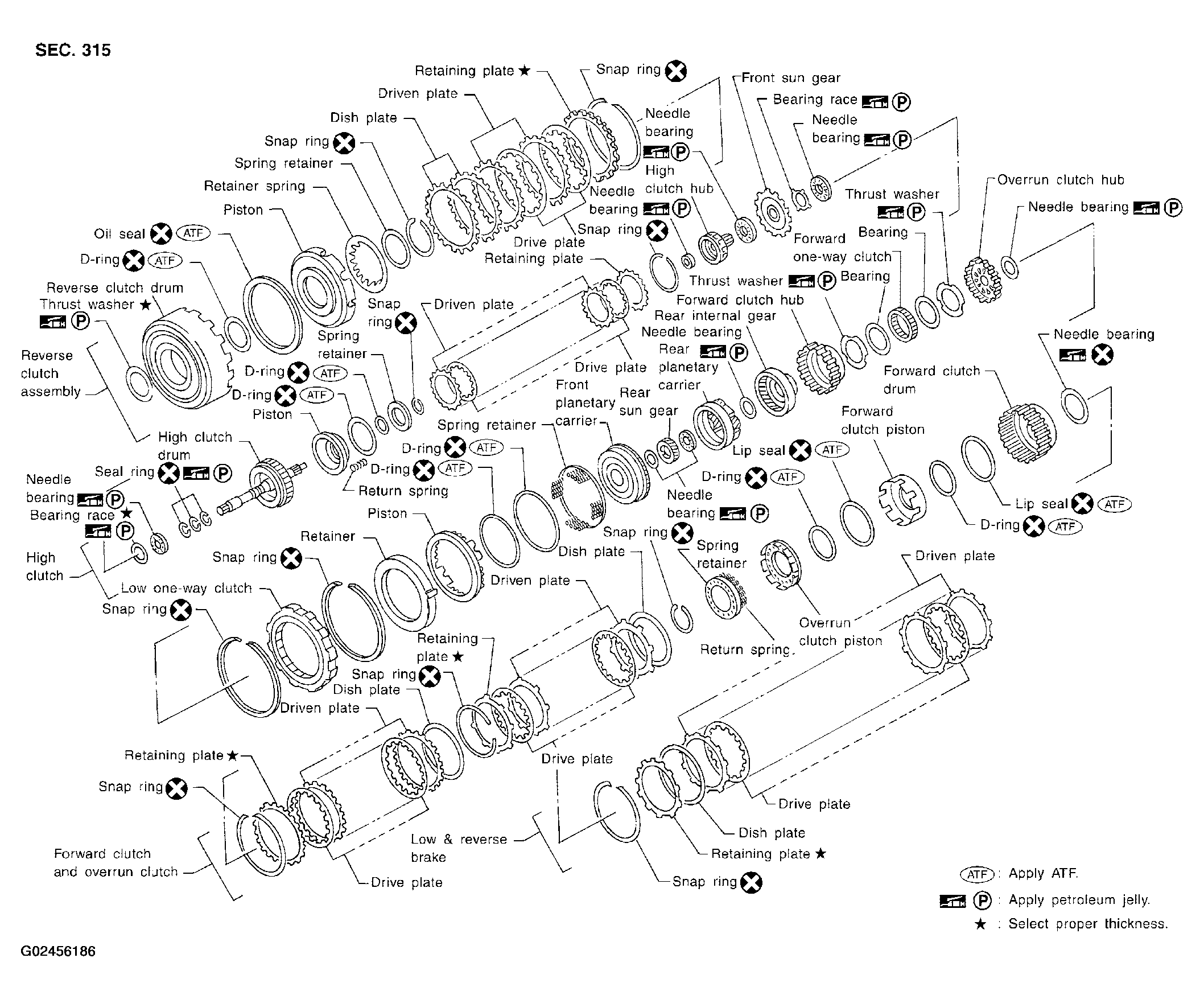

Fig 2: Exploded View Of Transmission (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

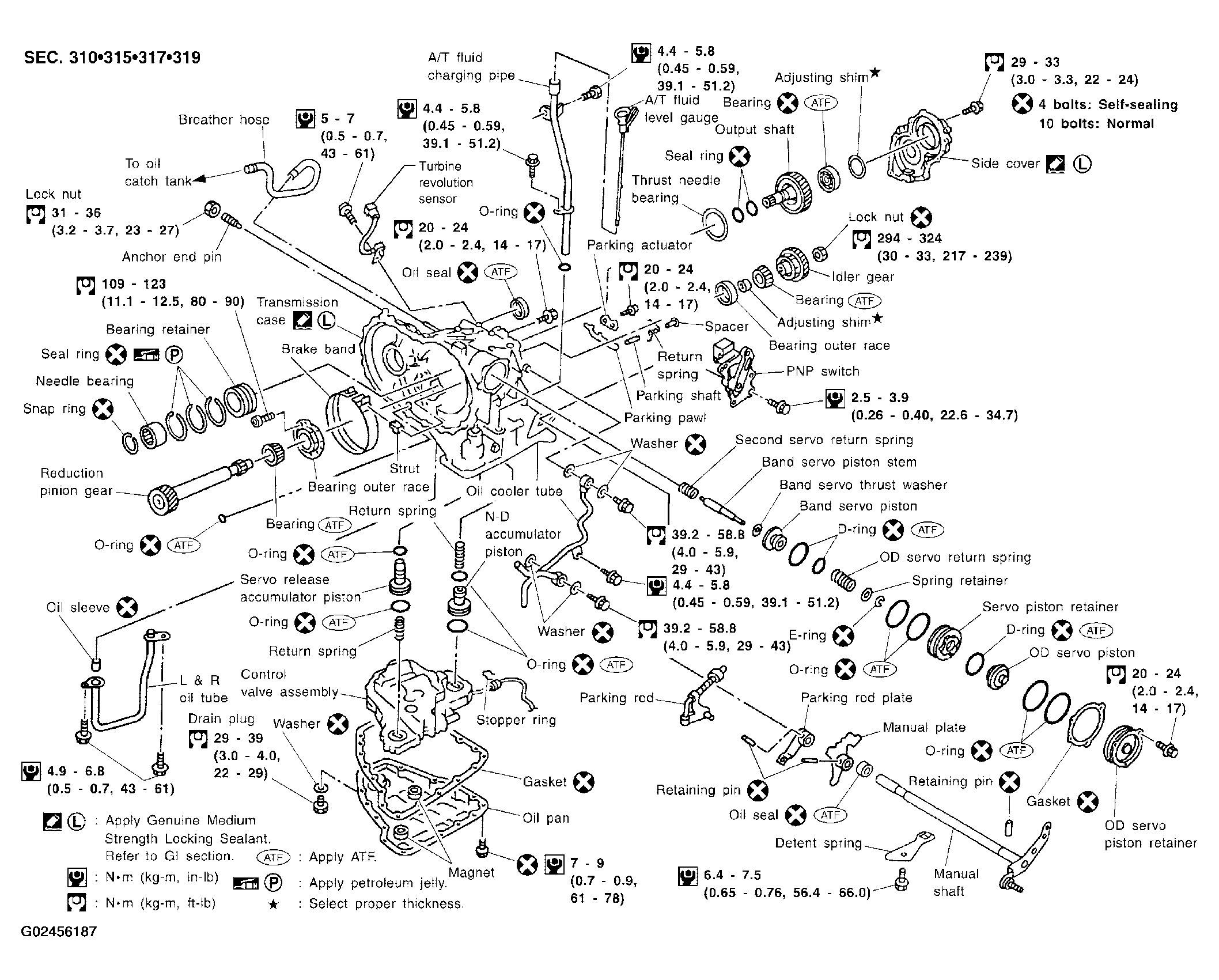

Fig 3: Exploded View Of Transmission (3 Of 3) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
