Band Servo Piston Assembly: Assembly

Install D-rings to servo piston retainer.
- Apply ATF to D-rings.
- Pay attention to position of each O-ring.

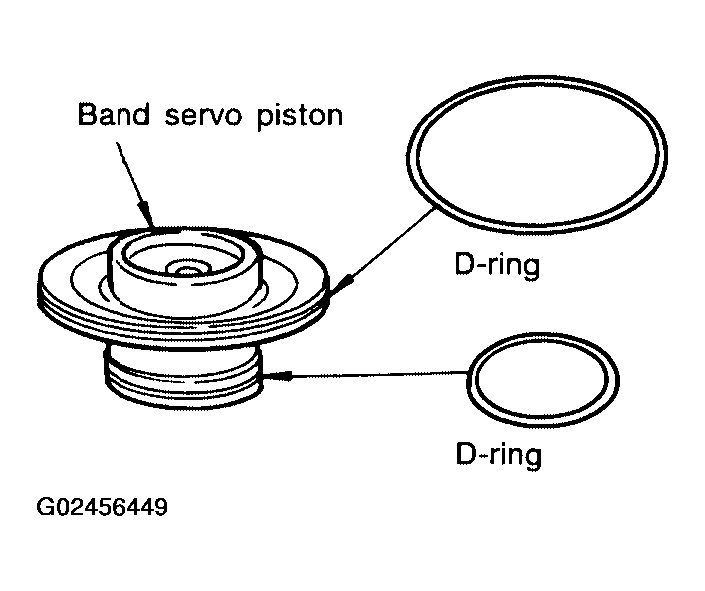

Fig 1: Installing D-Rings To Servo Piston Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

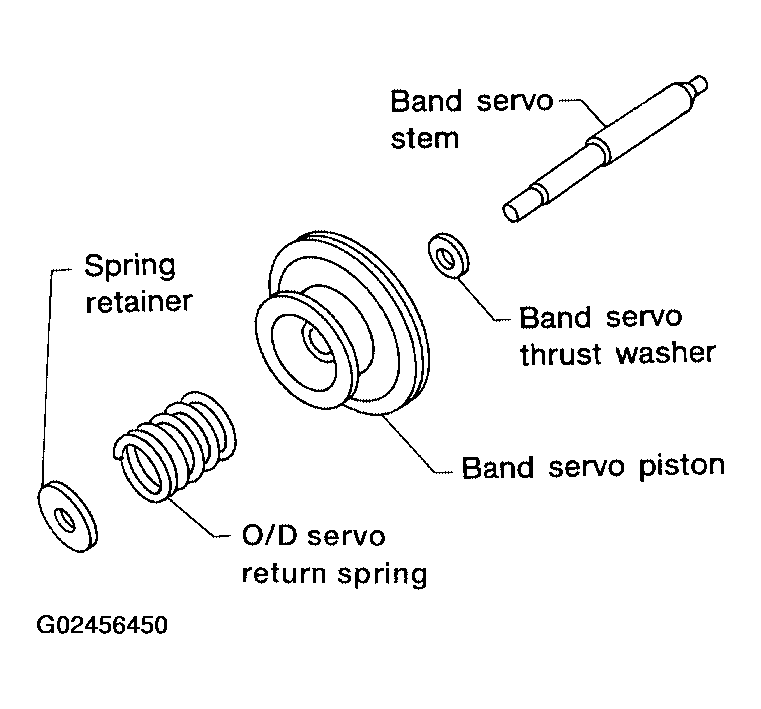

Install band servo piston stem, band servo thrust washer, O/D servo return spring and spring retainer to band servo piston.

Fig 2: Installing Band Servo Piston Stem, Band Servo Thrust Washer, O/D Servo Return Spring And Spring Retainer To Band Servo Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

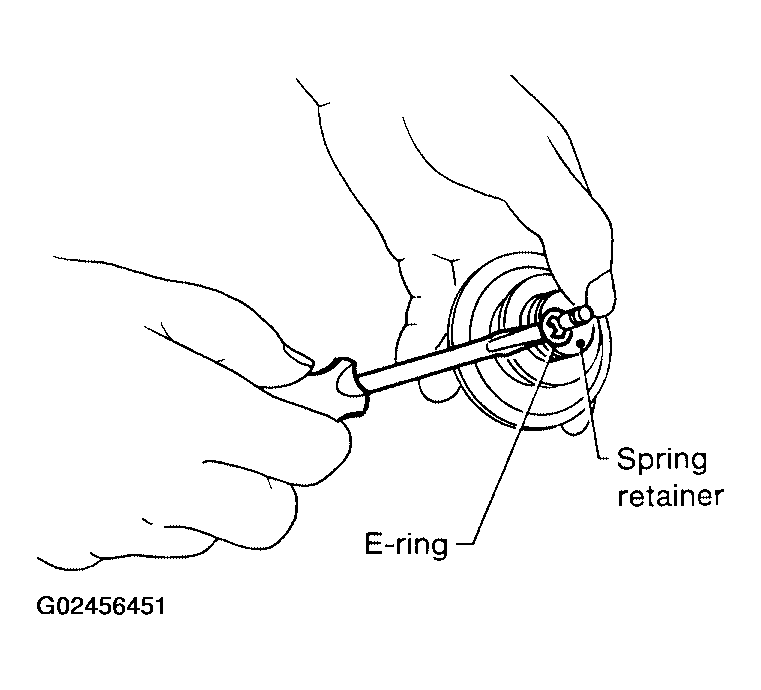

Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.

Fig 3: Installing E-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

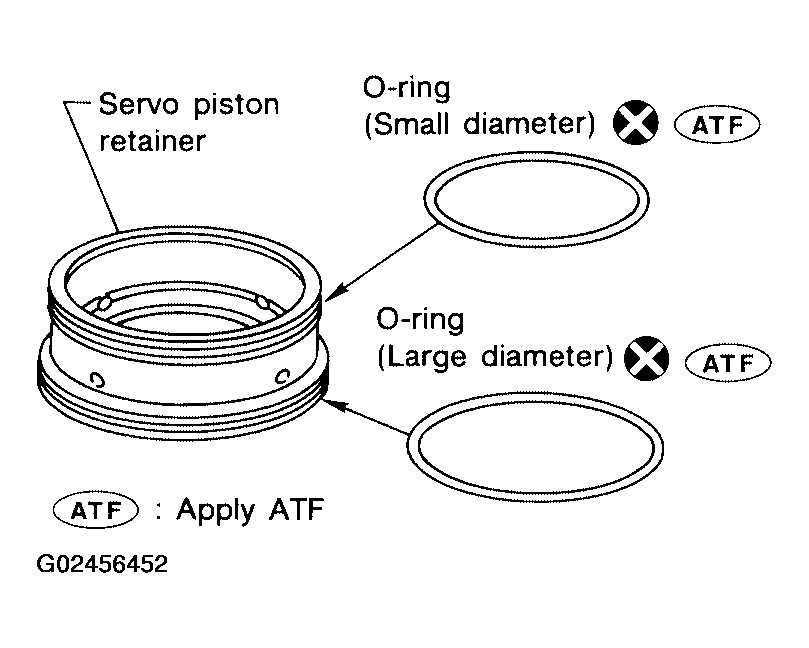

Install O-rings to servo piston retainer.
- Apply ATF to O-rings.
- Pay attention to position of each O-ring.
Fig 4: Installing O-Rings To Servo Piston Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

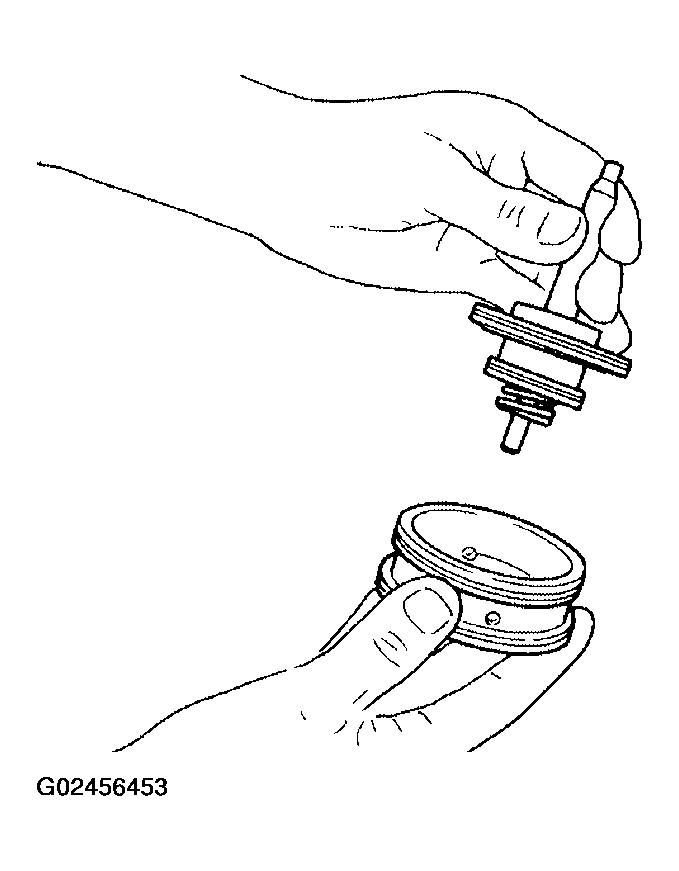

Install band servo piston assembly to servo piston retainer by pushing it inward.

Fig 5: Installing Band Servo Piston Assembly To Servo Piston Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Install D-ring to O/D servo piston.
- Apply ATF to D-ring.

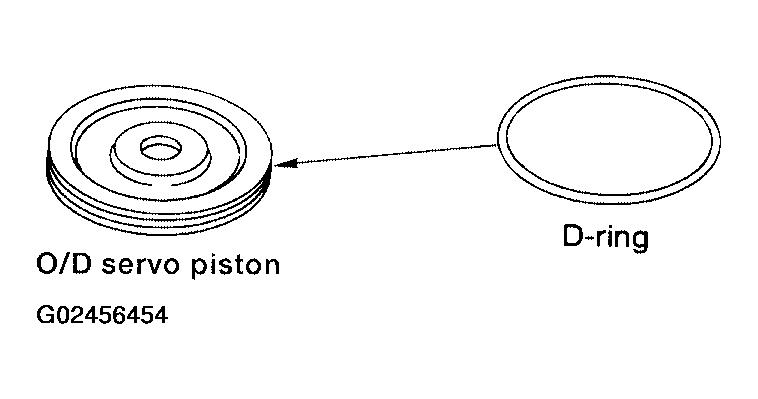

Fig 6: Installing D-Ring To O/D Servo Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

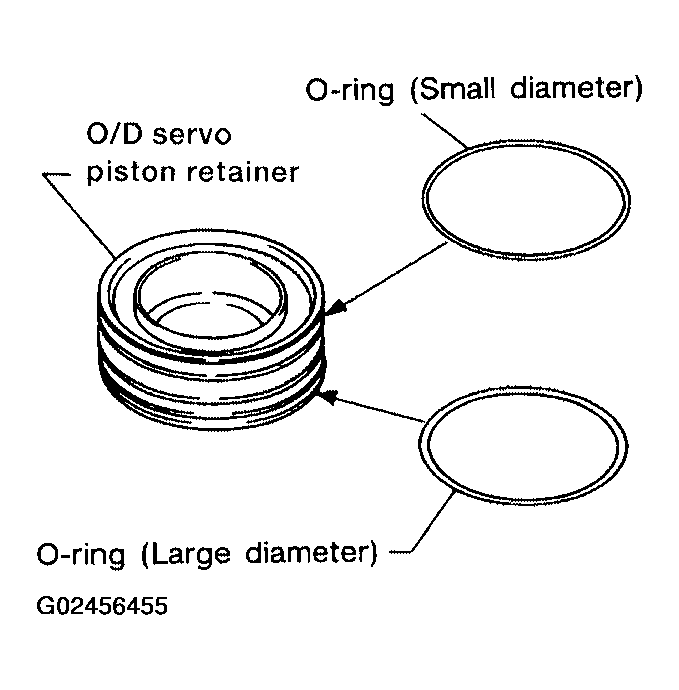

Install O-rings to O/D servo piston retainer.
- Apply ATF to O-rings.
- Pay attention to position of each O-ring.
Fig 7: Installing O-Rings To O/D Servo Piston Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

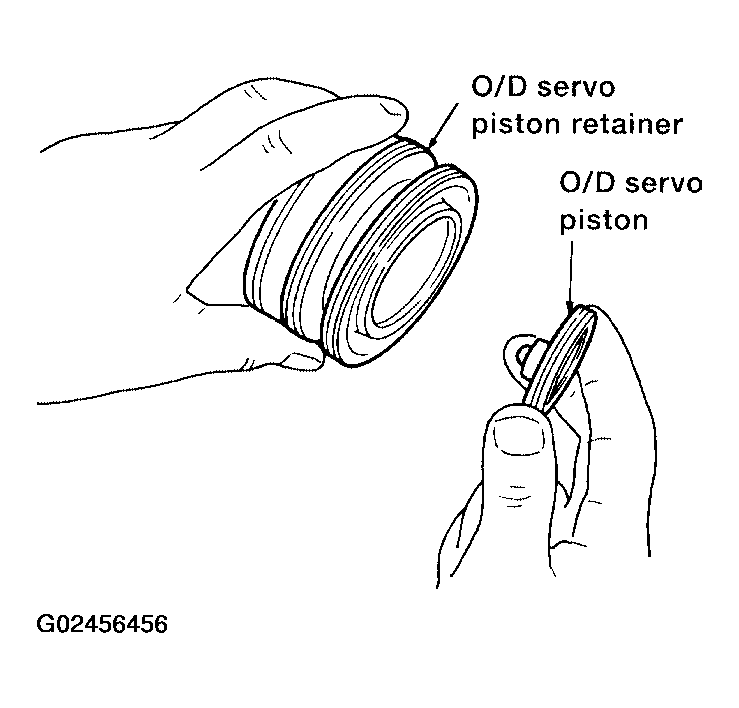

Install O/D servo piston to O/D servo piston retainer.

Fig 8: Installing O/D Servo Piston To O/D Servo Piston Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

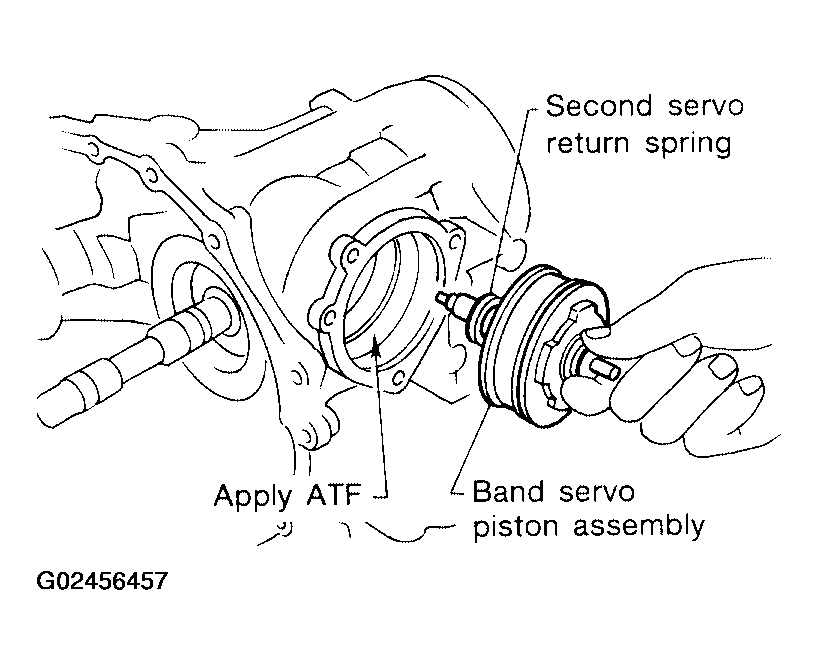

Install band servo piston assembly and 2nd servo return spring to transmission case.
- Apply ATF to O-ring of band servo piston and transmission case.
Fig 9: Installing Band Servo Piston Assembly & 2nd Servo Return Spring To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

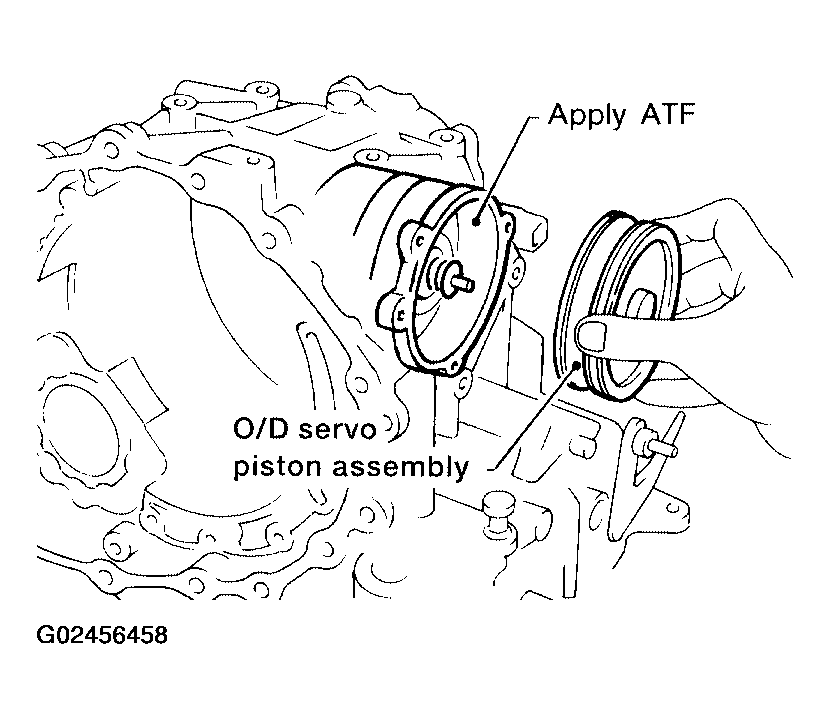

Install O/D servo piston assembly to transmission case.
- Apply ATF to O-ring of band servo piston and transmission case.
Fig 10: Installing O/D Servo Piston Assembly To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O/D servo piston retainer to transmission case.
Refer to ASSEMBLY .

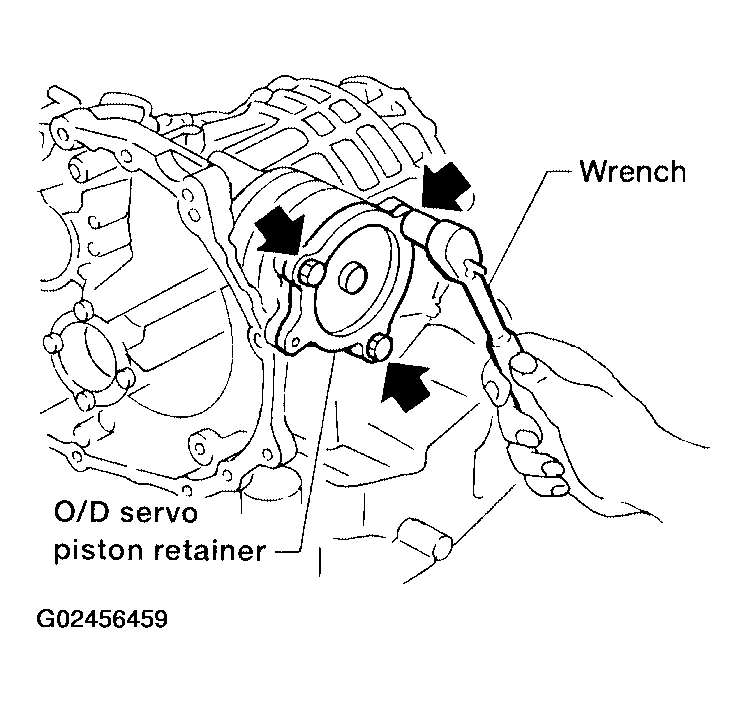

Fig 11: Installing O/D Servo Piston Retainer To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
