Band Servo Piston Assembly: Components

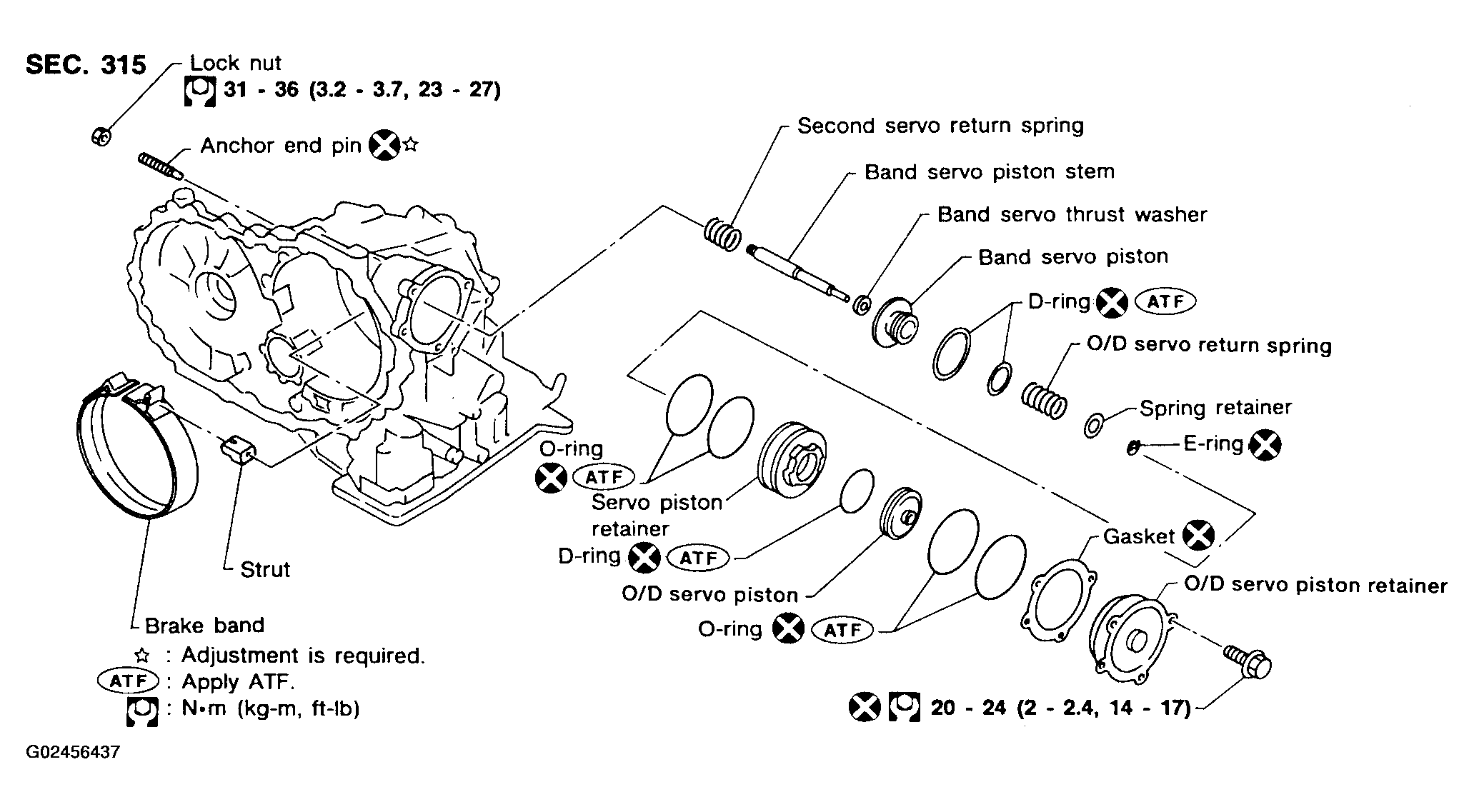

Fig 1: Removing Band Servo Piston Assembly With Torque Specifications
G02456437Courtesy of NISSAN MOTOR CO., U.S.A.
