Control Valve Upper Body: Components

Apply ATF to all components before installation.

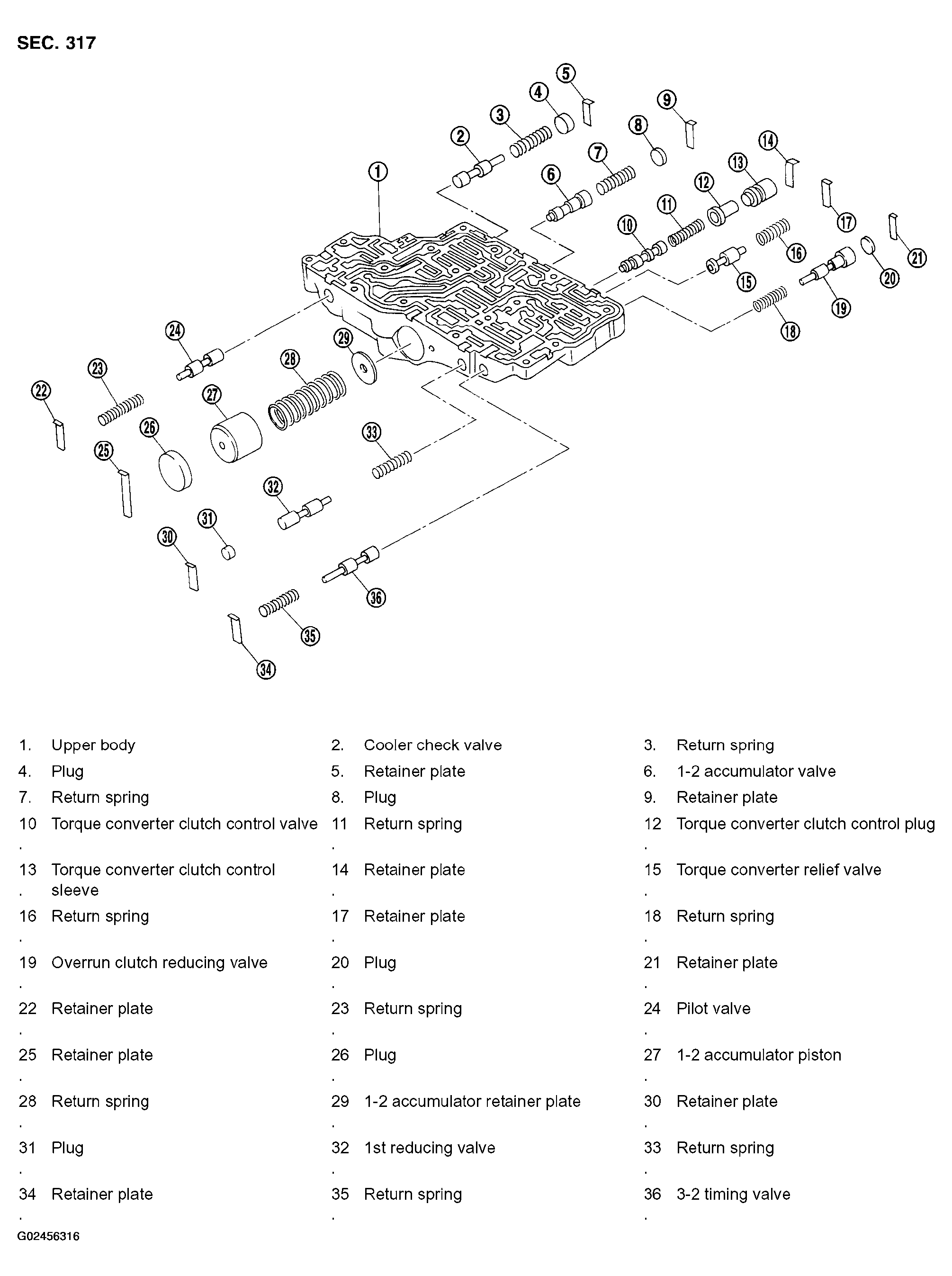

Fig 1: Exploded View Of Control Valve Upper Body
G02456316Courtesy of NISSAN MOTOR CO., U.S.A.
