Forward And Overrun Clutches: Components

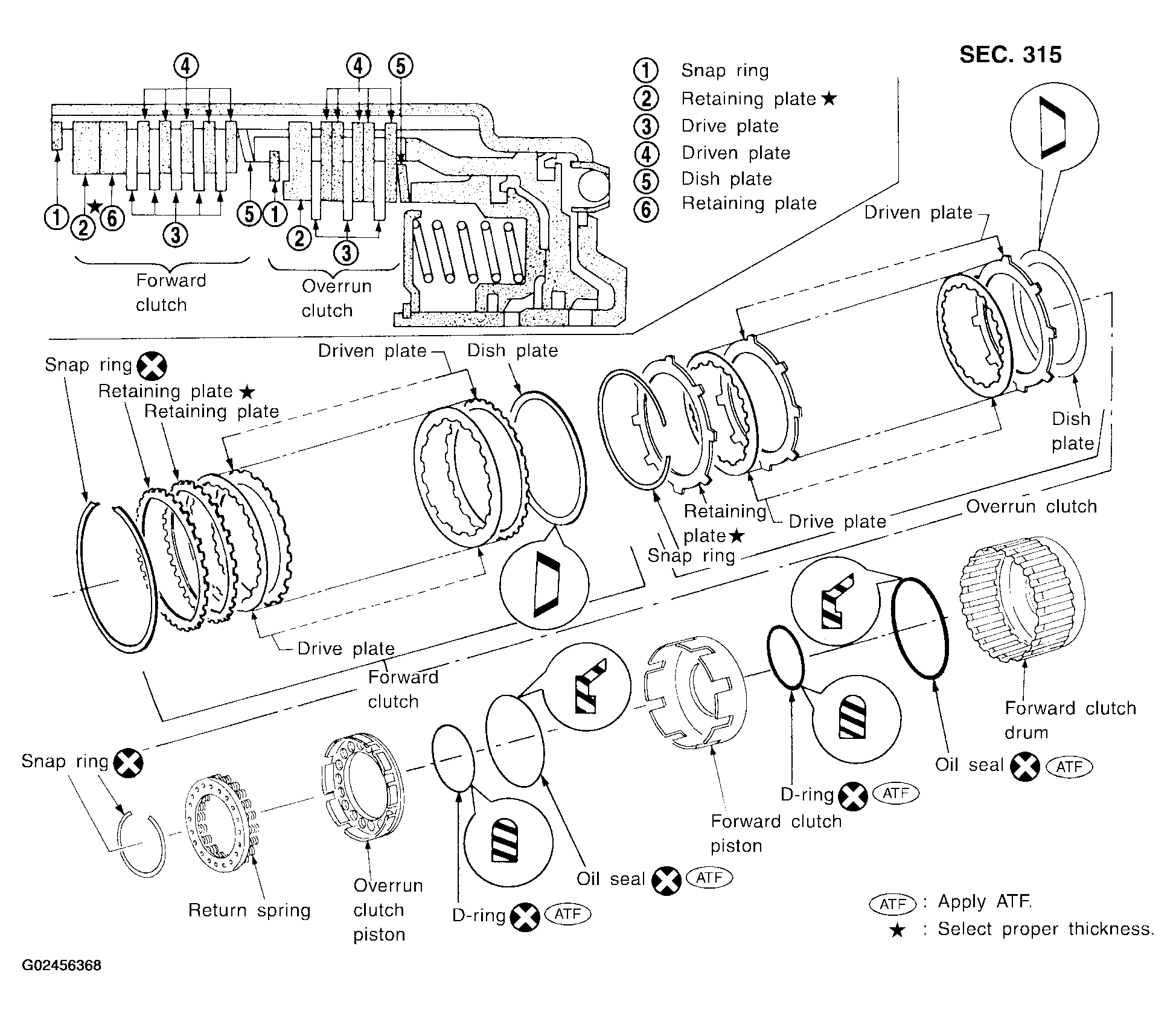

Fig 1: Exploded View Of Forward & Overrun Clutches
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
