A/T Fluid Temperature Sensor
Remarks: Specification data are reference values.

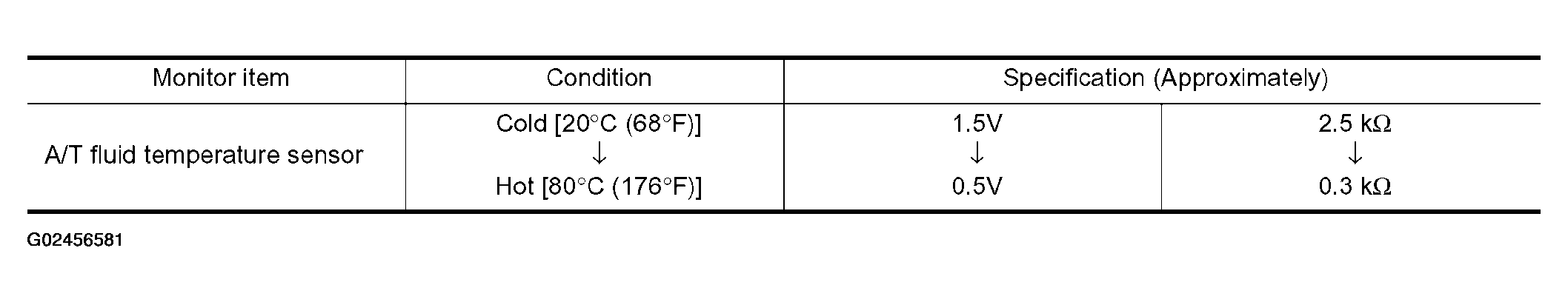

Fig 1: A/T Fluid Temperature Sensor Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
