Control Valve And Plug Return Springs

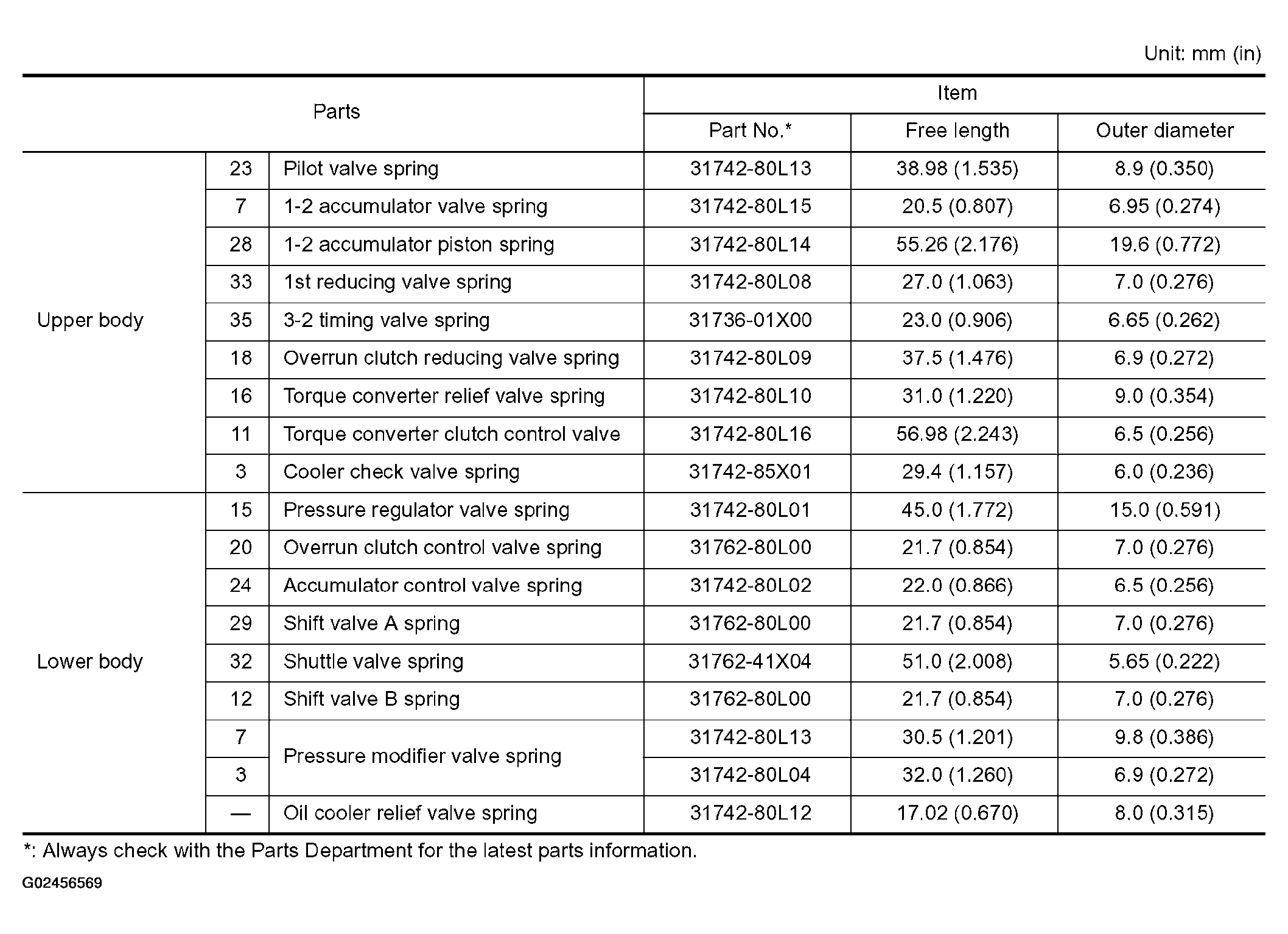

Fig 1: Control Valve & Plug Return Springs Specifications Chart
G02456569Courtesy of NISSAN MOTOR CO., U.S.A.
