Turbine Revolution Sensor: Description: Notes

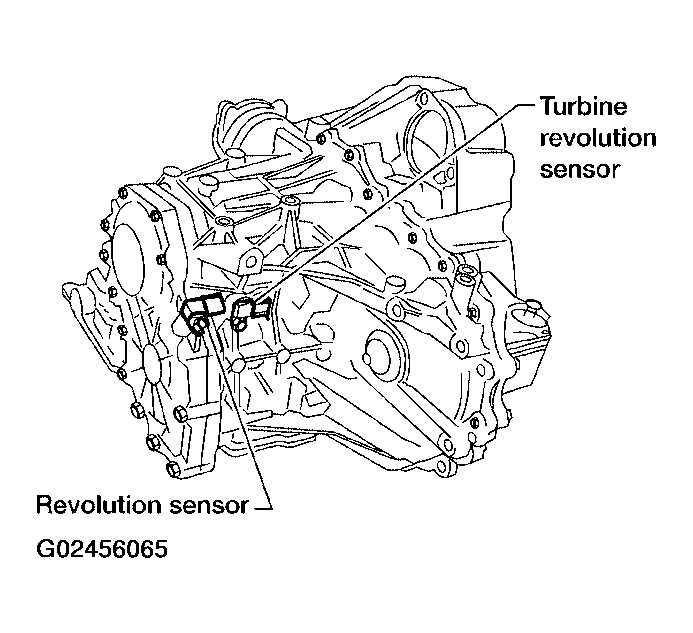

The turbine revolution sensor detects input shaft RPM (revolutions per minute). It is located on the input side of the automatic transaxle.
The vehicle speed sensor A/T (Revolution sensor) is located on the output side of the automatic transaxle. With the two sensors, input and output shaft rpms are accurately detected. The result is optimal shift timing during deceleration and improved shifting.
