Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    CONTINUITY CONDITION CHART

    Condition Continuity
    Brake pedal: Fully released. Should not exist.
    Brake pedal: Slightly depressed. Should exist.

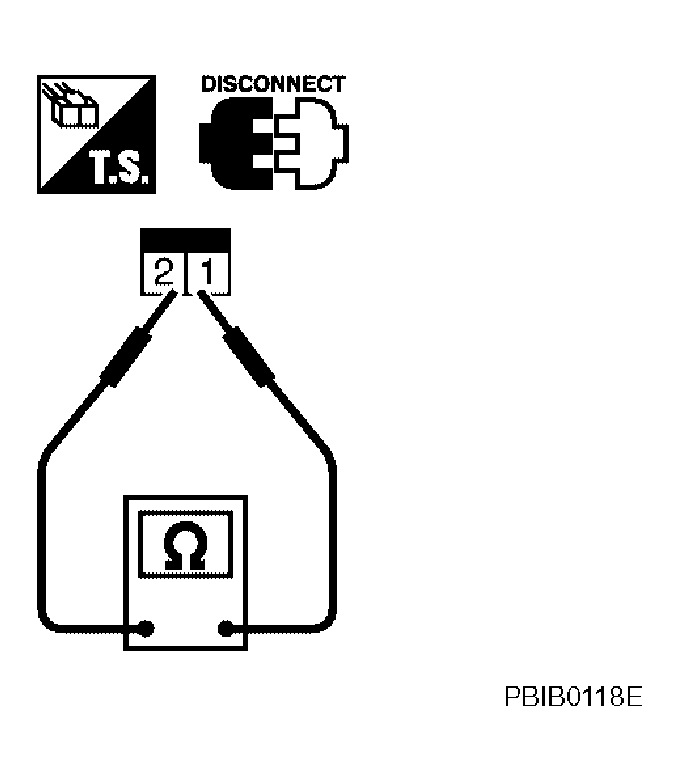

    Fig 1: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2
    G04166681Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, adjust stop lamp switch installation, Refer to , "BRAKE PEDAL ", and perform step  3 again.
