Fuel Injector

Disconnect fuel injector harness connector.
Check resistance between terminals as shown in Fig 1 .
Resistance: 11.6 - 14.9Ω [at 10 - 60°C (50 - 140°F)]

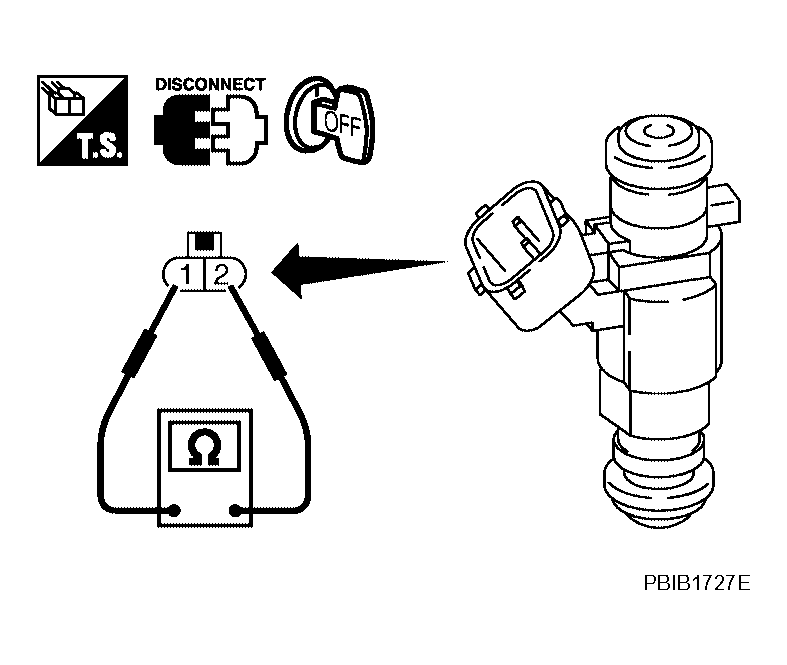

Fig 1: Checking Resistance Between Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
