Method A

  1. Slide the harness protector off the ignition coil No. 1 to clear the wires.
  2. Attach timing light to the wires.
  3. Check ignition timing.

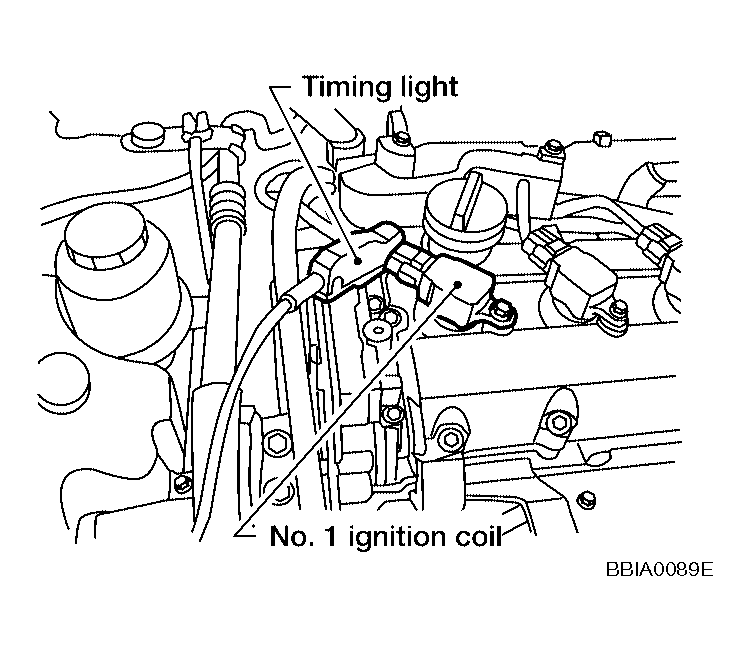

    Fig 1: Identifying Timing Light And No. 1 Ignition Coil (Method A)
    G04166032Courtesy of NISSAN MOTOR CO., U.S.A.
