Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| B5 | On left "B" pillar. See Figure . |
| B7 | On left "B" pillar. See Figure . |
| B19 | Behind left side of rear seat back. See Figure . |
| B107 | On right "B" pillar. See Figure . |
| B117 | Behind right side of rear seat back. See Figure . |
| B352 | At right "C" pillar. See Figure . |
| E14 | At left side of engine compartment, near battery. See Figure . |
| E15 | At left side of engine compartment, near battery. See Figure . |

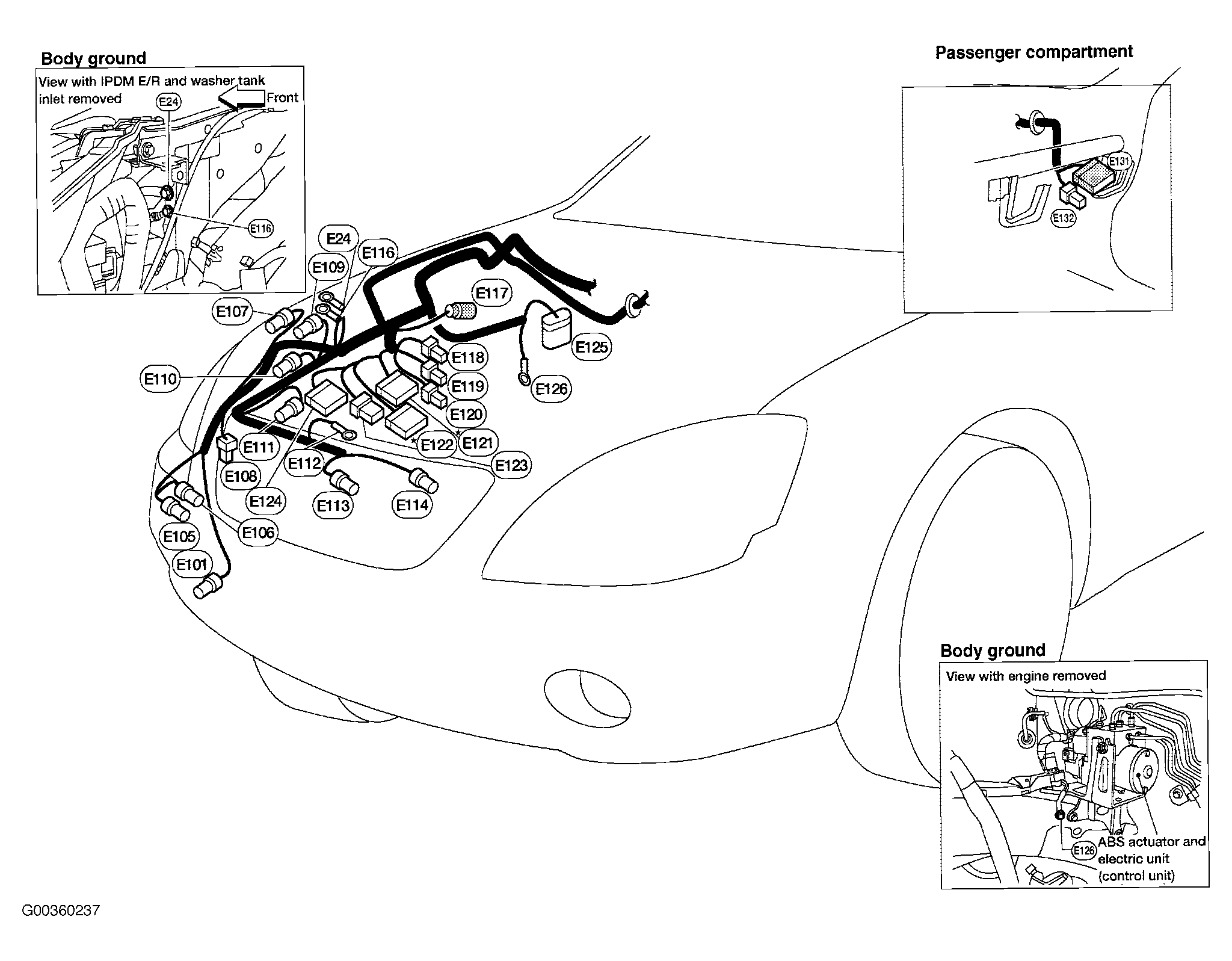

| E24 | At right side of engine compartment. See Figure . |
| E112 | At right front of engine compartment. See Figure . |
| E116 | At right front corner of engine compartment. See Figure . |
| E126 | Near ABS actuator. See Figure . |

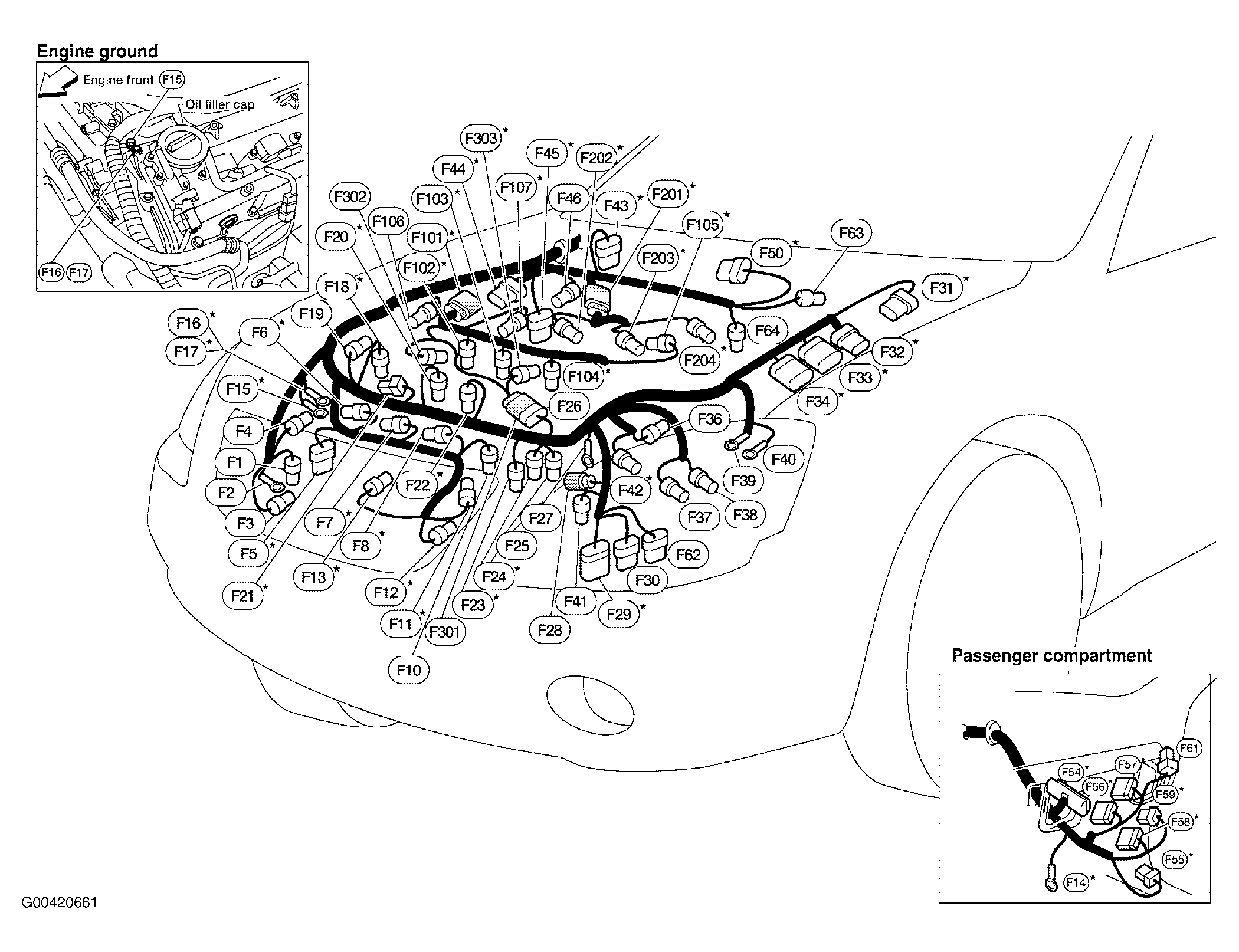

| F14 (2.5L) | On front of engine. See Figure . |

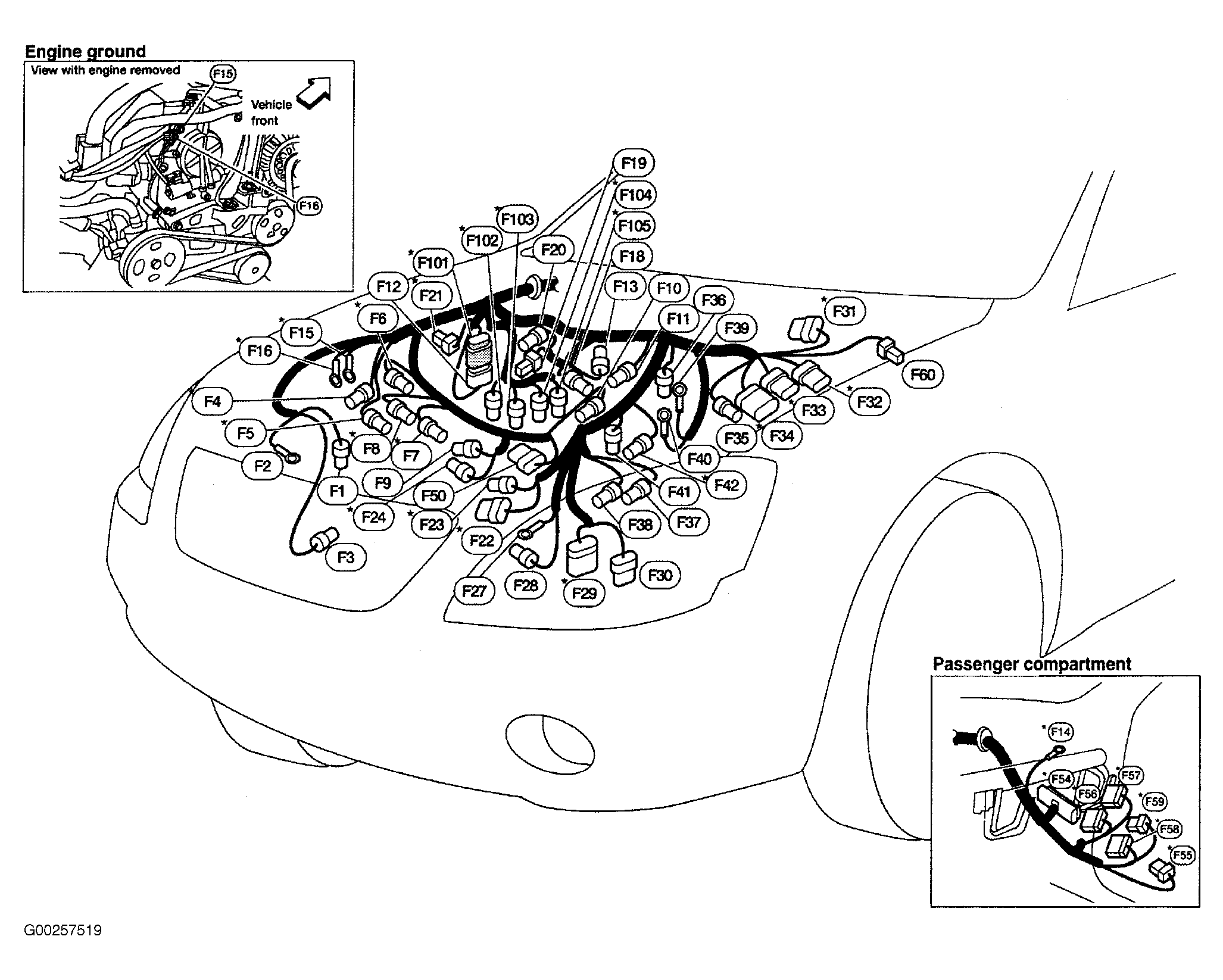

| F14 (3.5L) | On front of engine. See Figure . |
| F15 (2.5L) | On front of engine. See Figure . |
| F15 (3.5L) | On front of engine. See Figure . |
| F16 (2.5L) | On front of engine. See Figure . |
| F16 (3.5L) | On front of engine. See Figure . |
| F17 | On front of engine. See Figure . |
| M57 | Behind right side of dash. See Figure . |
| M61 | Behind right side of dash. See Figure . |
