Removal and Installation: Notes

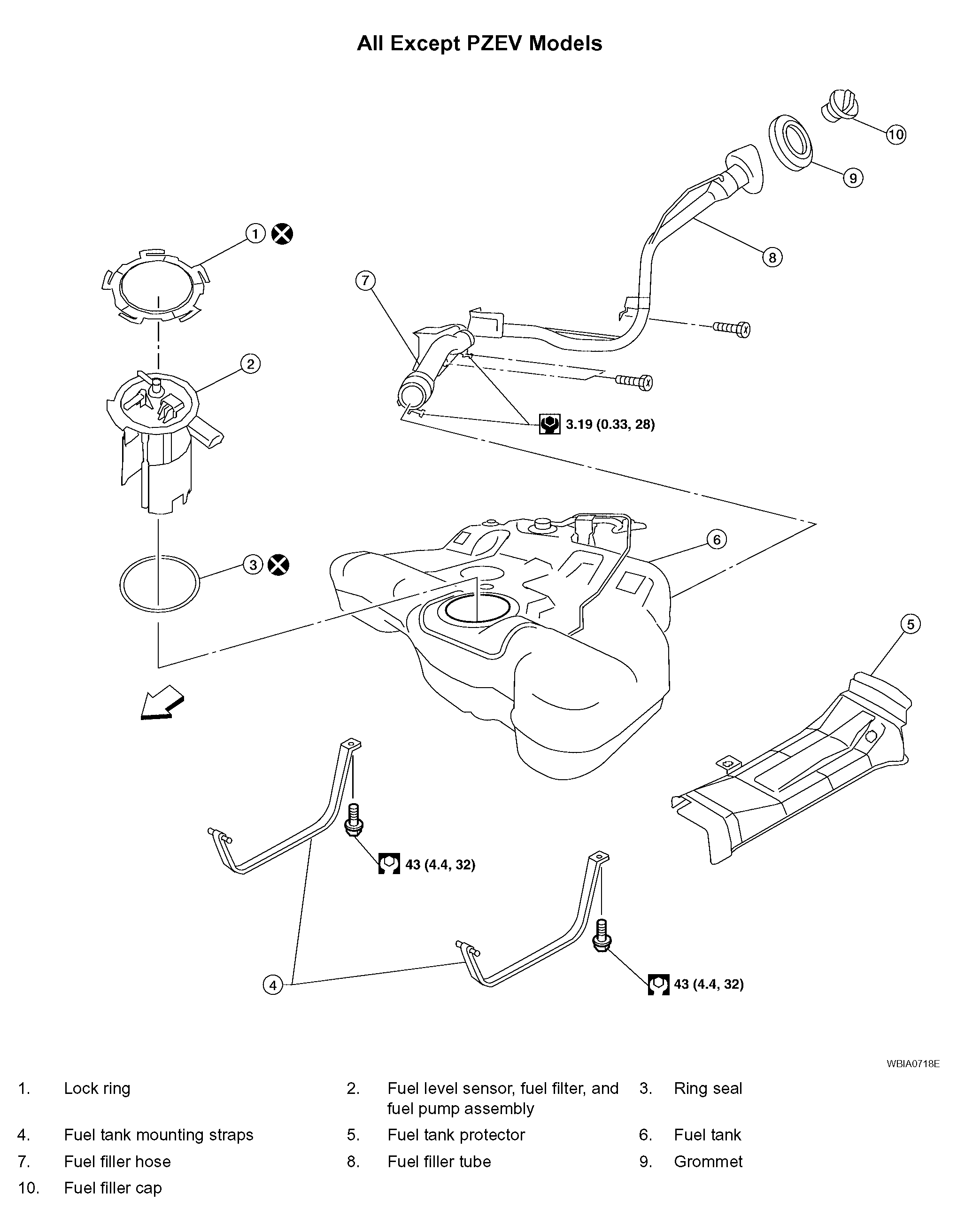

Fig 1: Removing And Installing Fuel Tank (All Except PZEV Models)
G04167657Courtesy of NISSAN MOTOR CO., U.S.A.

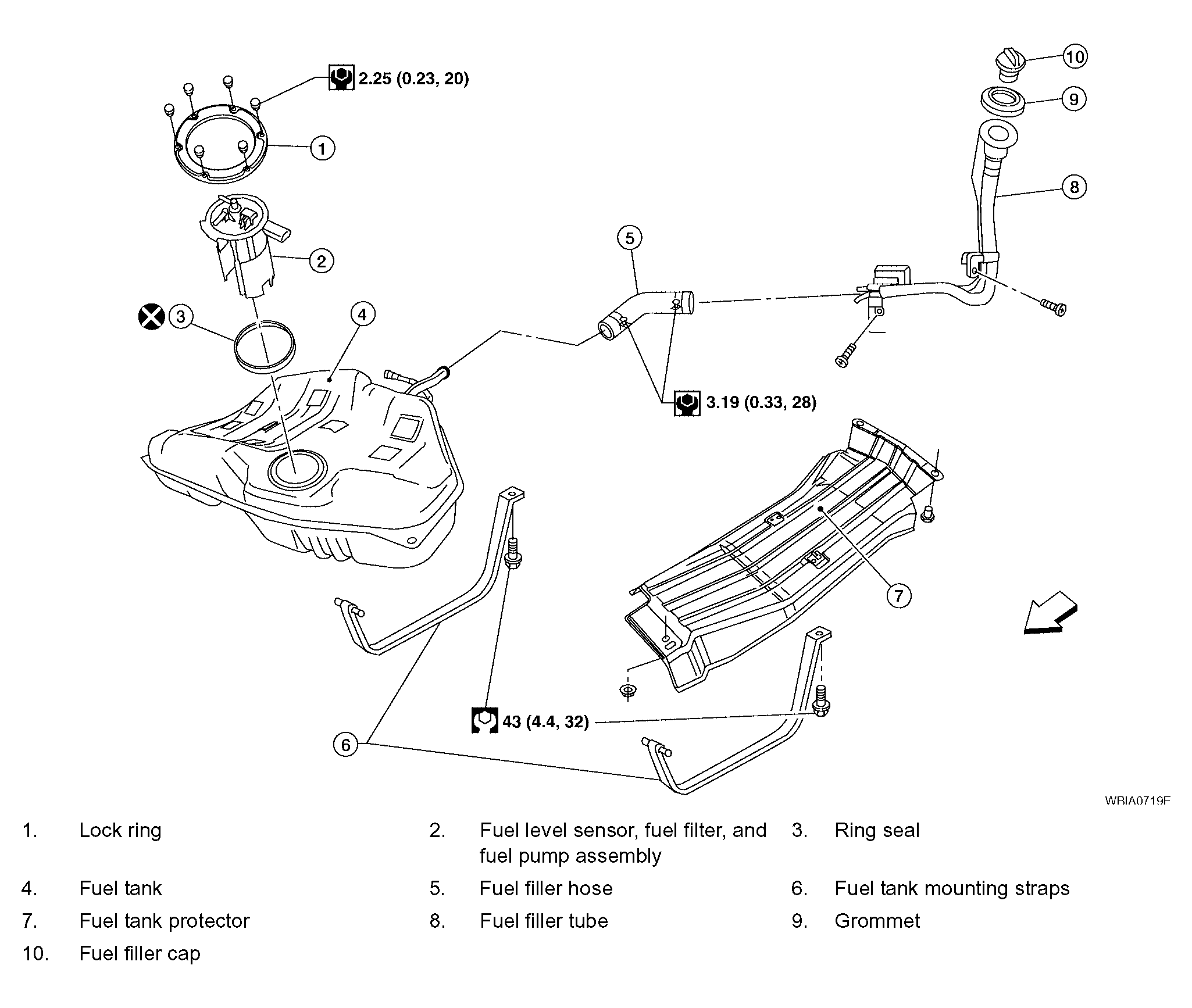

Fig 2: Removing And Installing Fuel Tank (PZEV Models Only)
G04167658Courtesy of NISSAN MOTOR CO., U.S.A.
