ASCD Indicator: Wiring Diagram

NOTE: For PG-POWER references, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

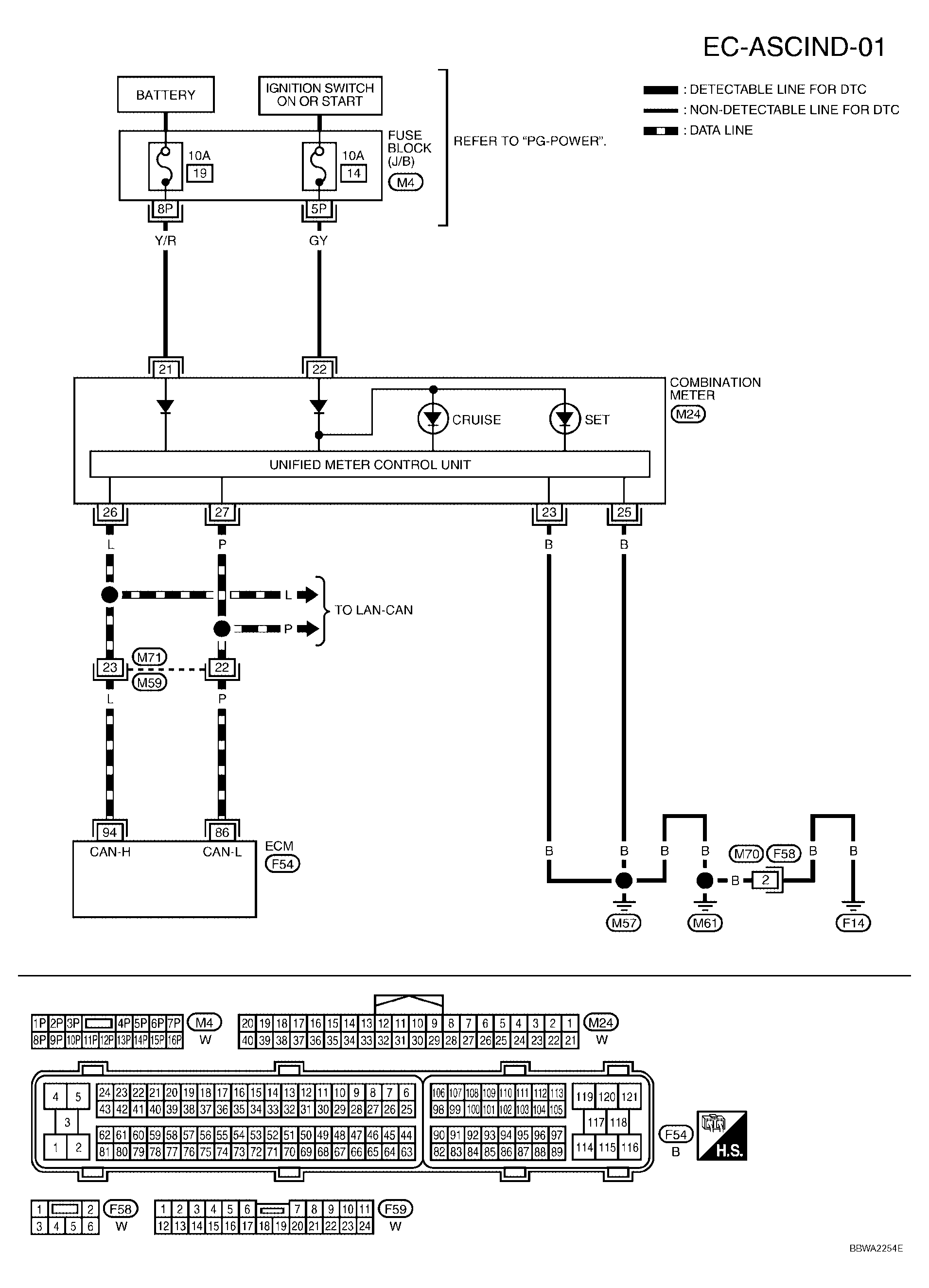

Fig 1: Identifying Wiring Diagram (EC-ASCIND-01)
G04167559Courtesy of NISSAN MOTOR CO., U.S.A.
