With CONSULT-II

  1. Reconnect harness connectors disconnected.
  2. Turn ignition switch ON.
  3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.

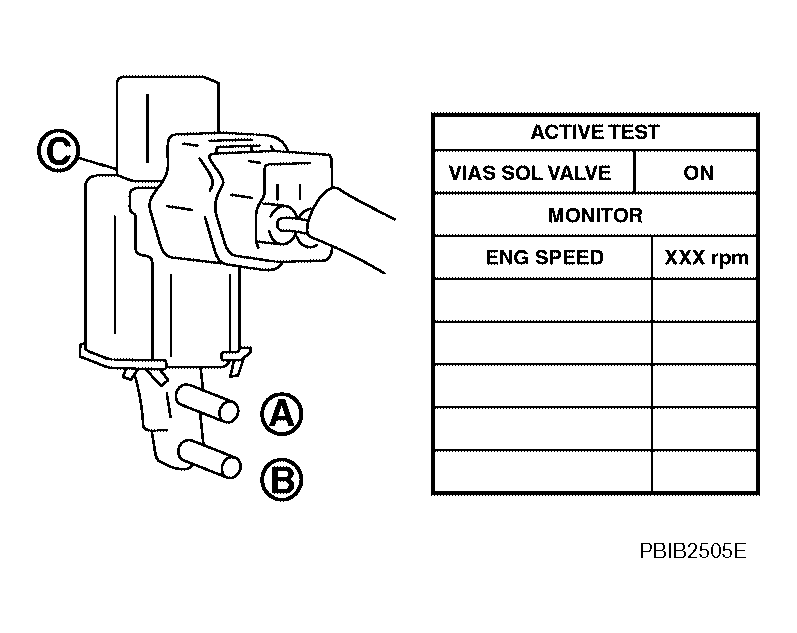

    4. Fig 1: CONSULT II Display - Active Test For Energizing VIAS Solenoid Valve
    G04148504Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check air passage continuity and operation delay time under the following conditions.
    CONTINUITY SPECIFICATION

    Condition VIAS SOL VALVE Air passage continuity between (A) and (B) Air passage continuity between (A) and (C)
    ON Yes No
    OFF No Yes

    Operation takes less than 1 second.
