Disassembly and Assembly: Notes

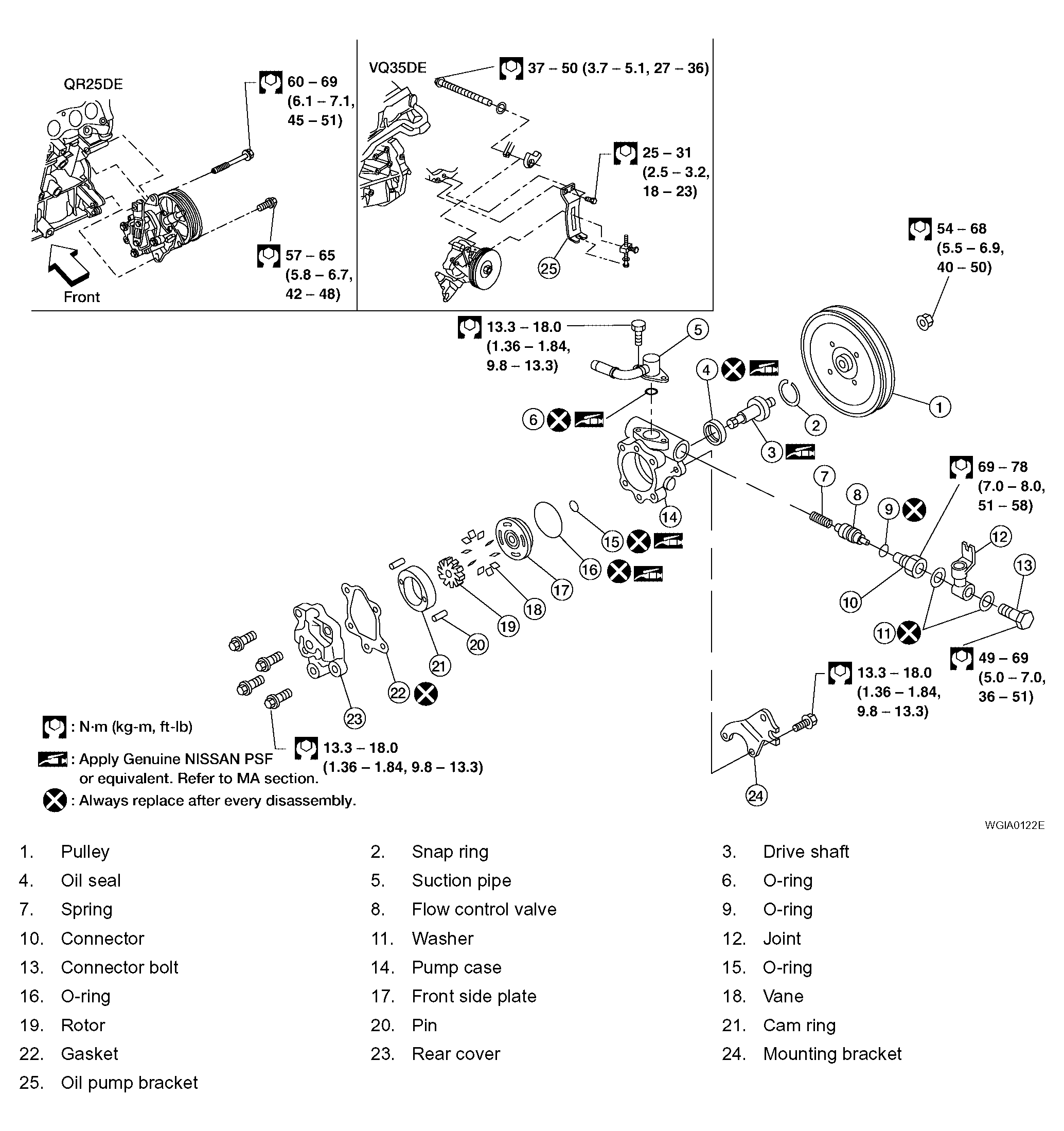

Fig 1: Disassembly And Assembly Of Power Steering Oil Pump (With Specifications)
G04169923Courtesy of NISSAN MOTOR CO., U.S.A.
