Steering Column

STEERING COLUMN SPECIFICATION

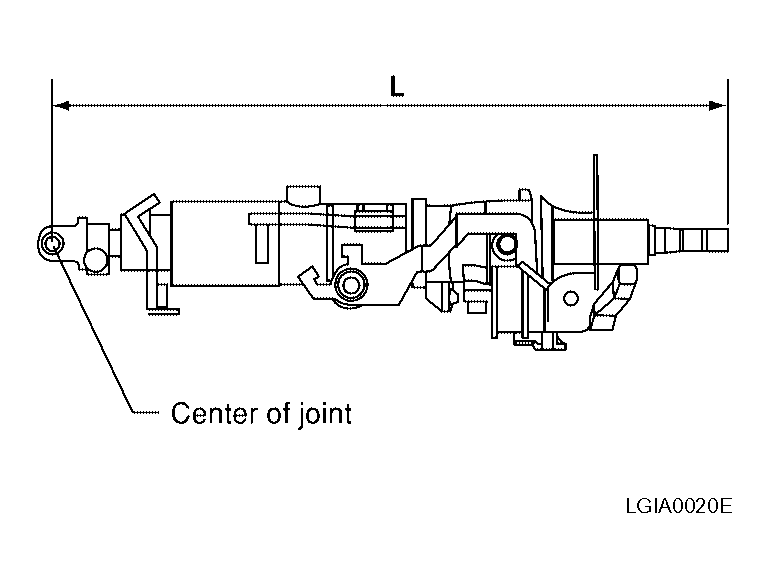

G04169933Courtesy of NISSAN MOTOR CO., U.S.A.
Applied model All
Steering column length "L" mm (in)(1) 496 (19.53)
(1) On models equipped with telescopic feature, make sure the column is in the forward most position before measuring.
