DTC P0181 FTT Sensor: Wiring Diagram

NOTE: For PG-POWER references, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

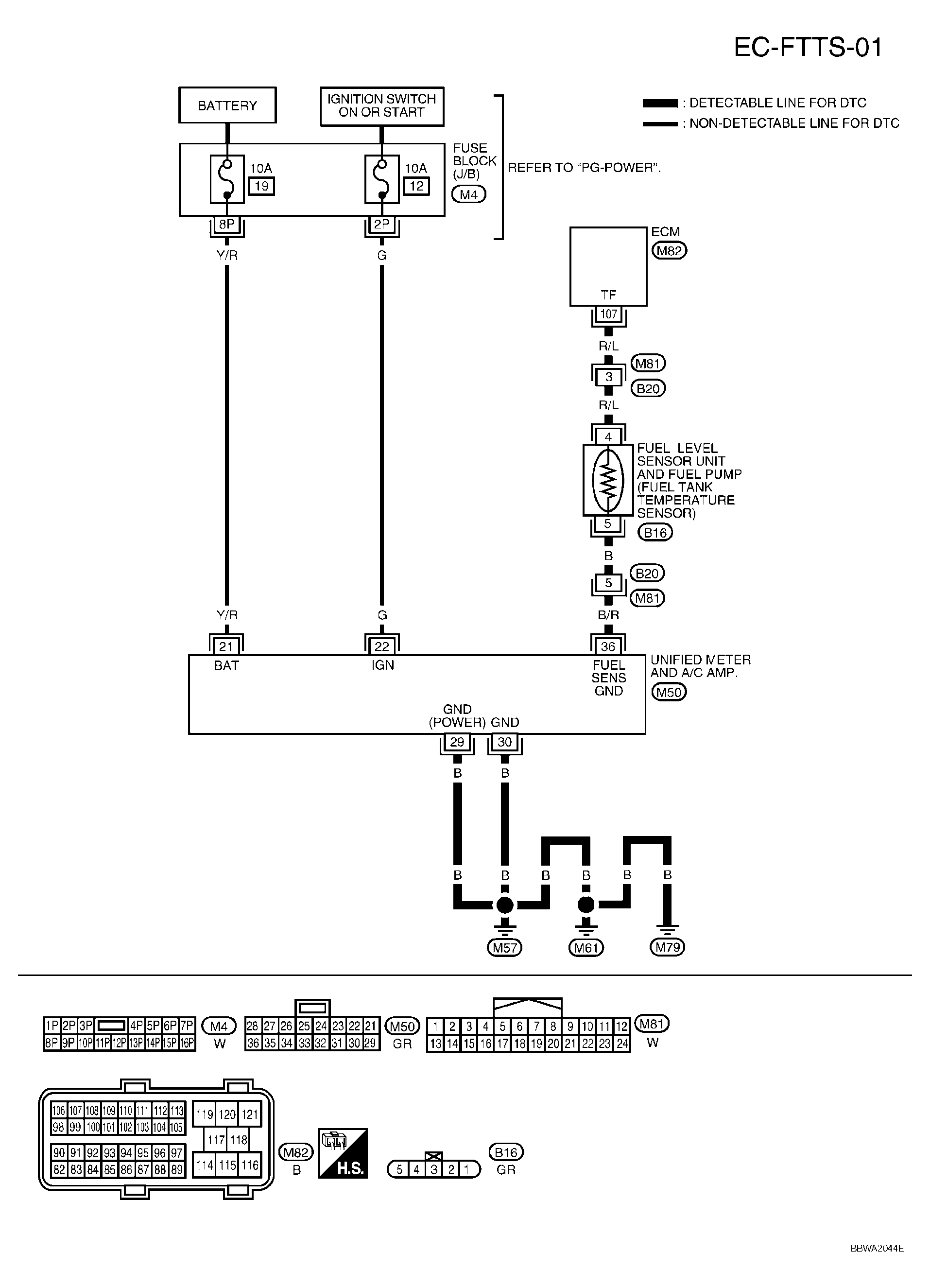

Fig 1: EC-FTTS-01 - Wiring Diagram
G04160434Courtesy of NISSAN MOTOR CO., U.S.A.
