Without CONSULT-II

  1. Remove fuel pump fuse located in IPDM E/R.
  2. Start engine.
  3. After engine stalls, crank it 2 or 3 times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.

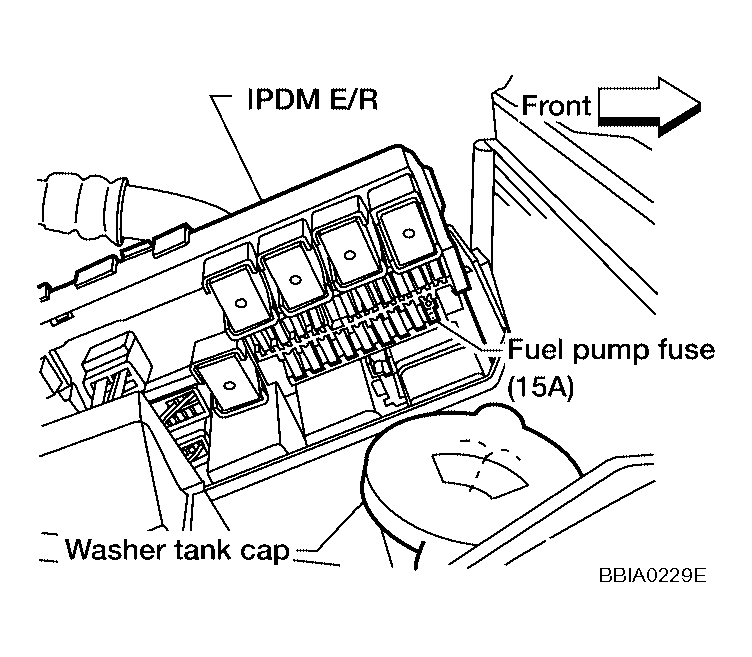

    Fig 1: Locating IPDM E/R And Fuel Pump Fuse
    G04160123Courtesy of NISSAN MOTOR CO., U.S.A.
