Method A

  1. Slide the harness protector of ignition coil No. 1 (2) to clear the wires.
    • <=: Vehicle front
    • Intake manifold collector (1)

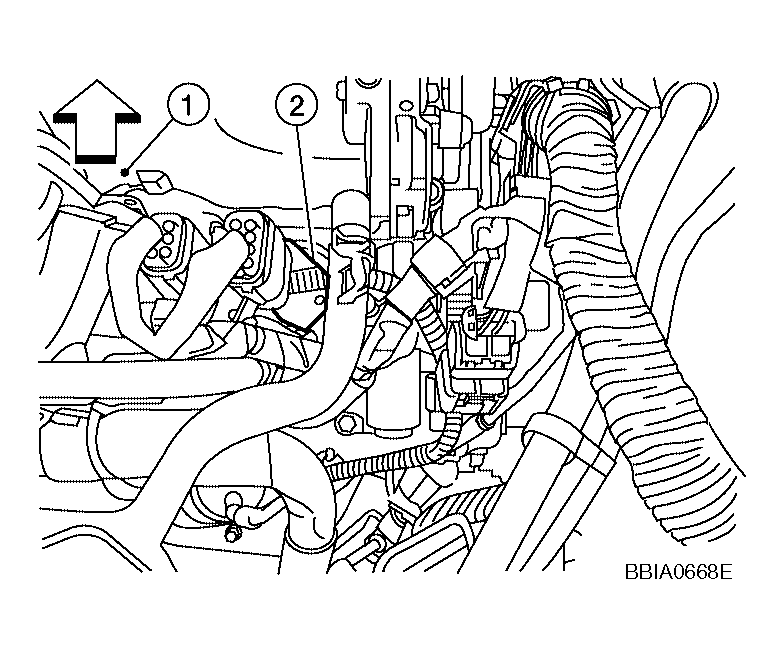

    Fig 1: Identifying Intake Manifold Collector & Ignition Coil No. 1
    G04160111Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Attach timing light to the ignition coil No. 1 wires as shown in the figure.
  3. Check ignition timing.

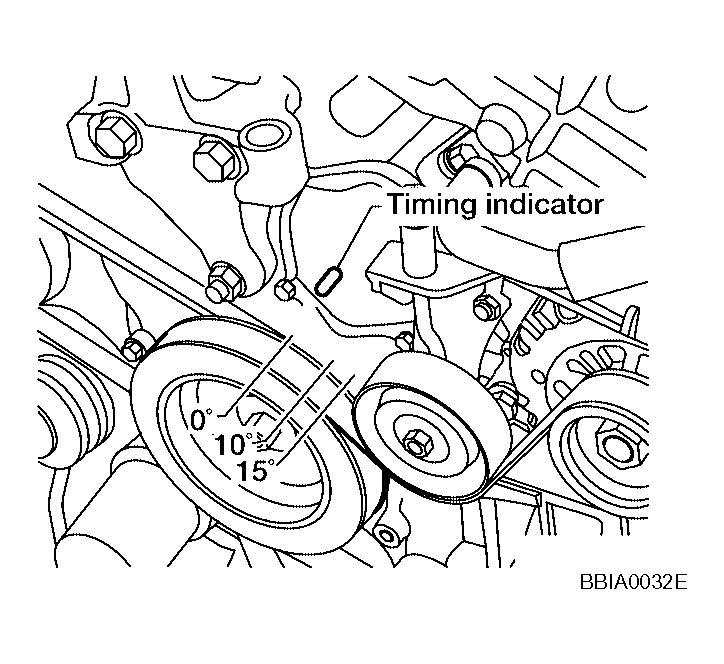

Fig 2: Checking Ignition Timing
G04160112Courtesy of NISSAN MOTOR CO., U.S.A.
