Method B

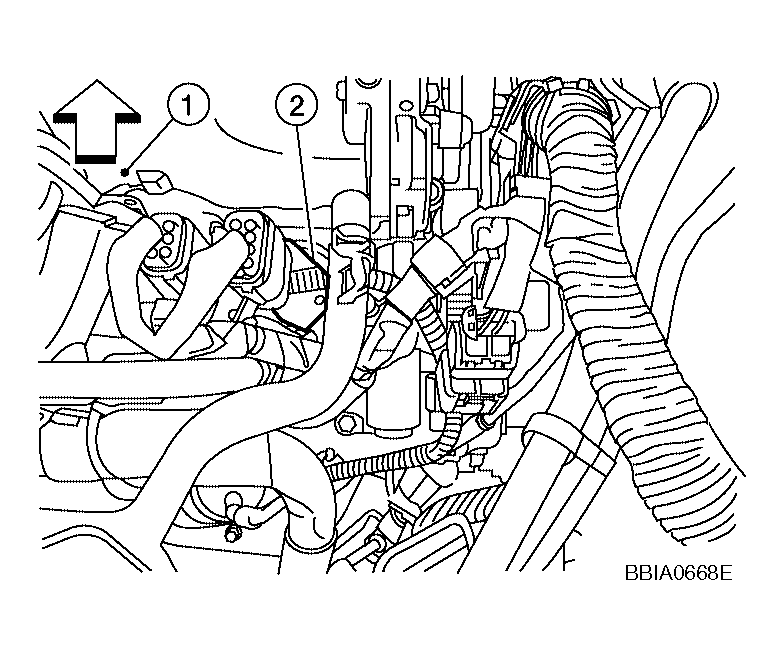

Remove ignition coil NO. 1 (2).
- <=: Vehicle front
- Intake manifold collector (1)
Fig 1: Identifying Intake Manifold Collector & Ignition Coil No. 1
Courtesy of NISSAN MOTOR CO., U.S.A.

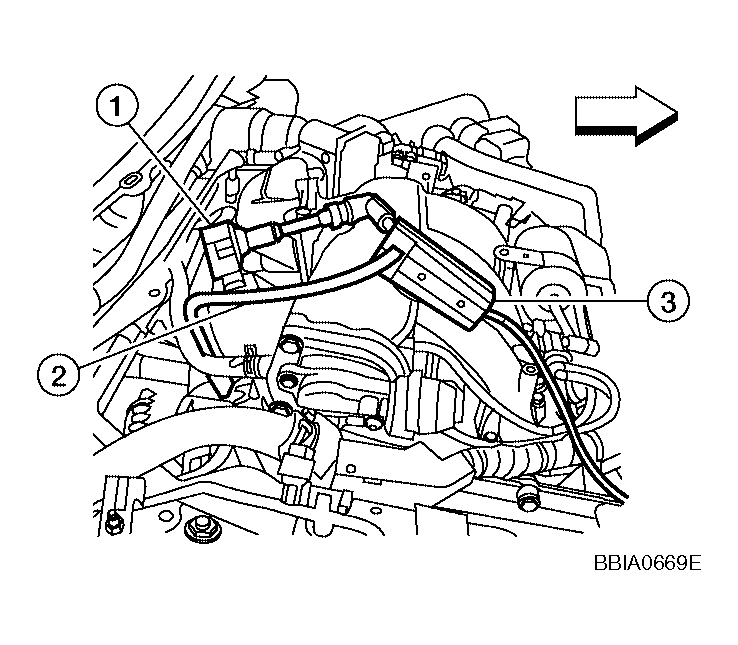

Connect ignition coil NO. 1 (1) and spark plug with suitable high-tension wire (2) as shown, and attach timing light (3) clamp to this wire.
- <=: Vehicle front
Fig 2: Identifying Ignition Coil No. 1, High-Tension Wire & Timing Light
Courtesy of NISSAN MOTOR CO., U.S.A.

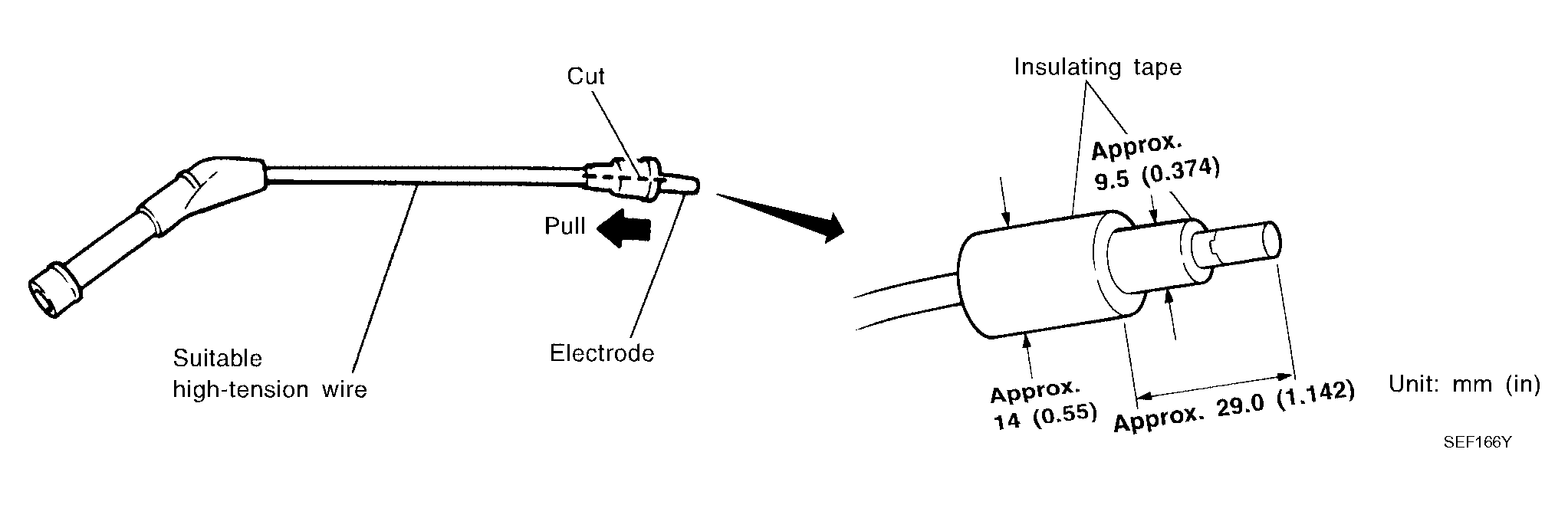

Fig 3: Identifying High-Tension Wire
Courtesy of NISSAN MOTOR CO., U.S.A.

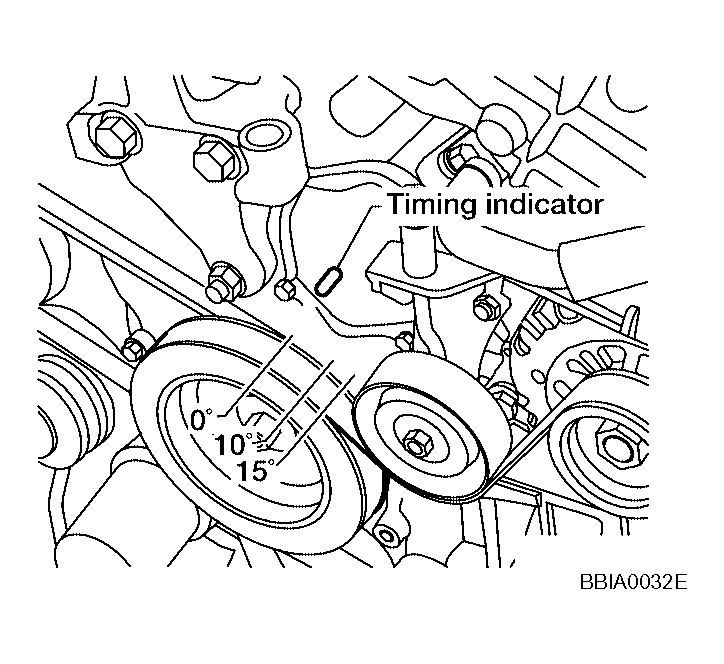

Check ignition timing.

Fig 4: Checking Ignition Timing

Courtesy of NISSAN MOTOR CO., U.S.A.
