CLSD THL Pos, ACCEL Sen 1, THRTL Sen 1

Below is the data for "CLSD THL POS", "ACCEL SEN 1" and "THRTL SEN 1" when depressing the accelerator pedal with the ignition switch ON and with shift lever in D position (A/T) or 1st position (M/T).

The signal of "ACCEL SEN 1" and "THRTL SEN 1" should rise gradually without any intermittent drop or rise after "CLSD THL POS" is changed from ON to OFF.

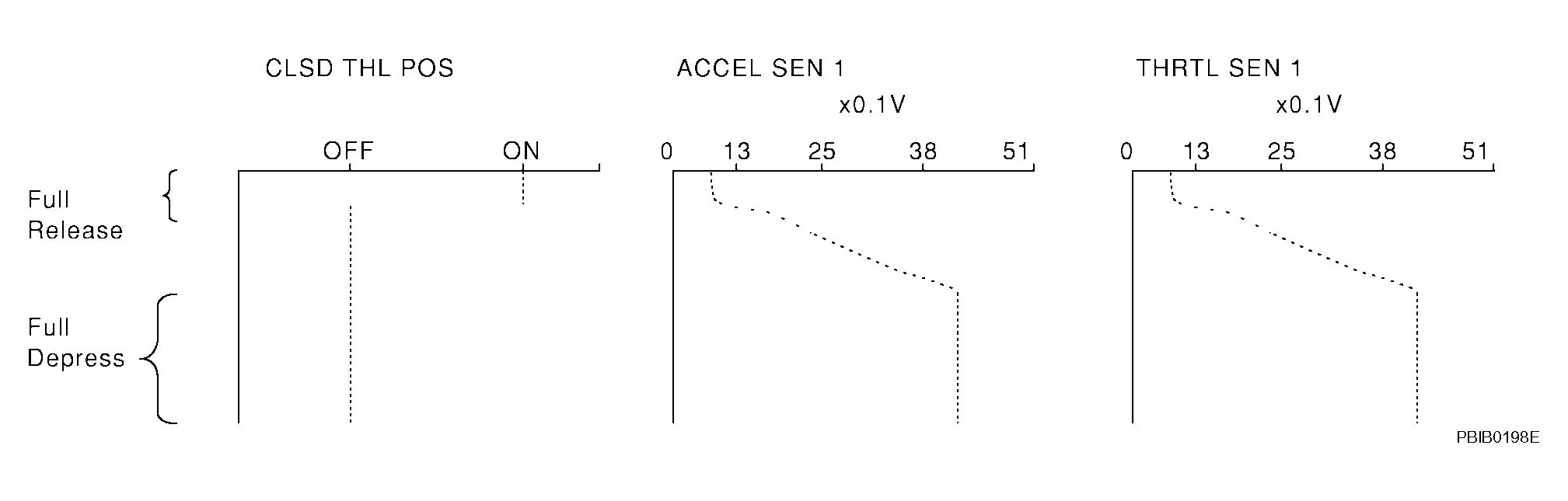

Fig 1: CLSD THL POS, ACCEL SEN 1 And THRTL SEN 1 - Major Sensor Reference Graph
