ASCD Indicator: Wiring Diagram

For PG references, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

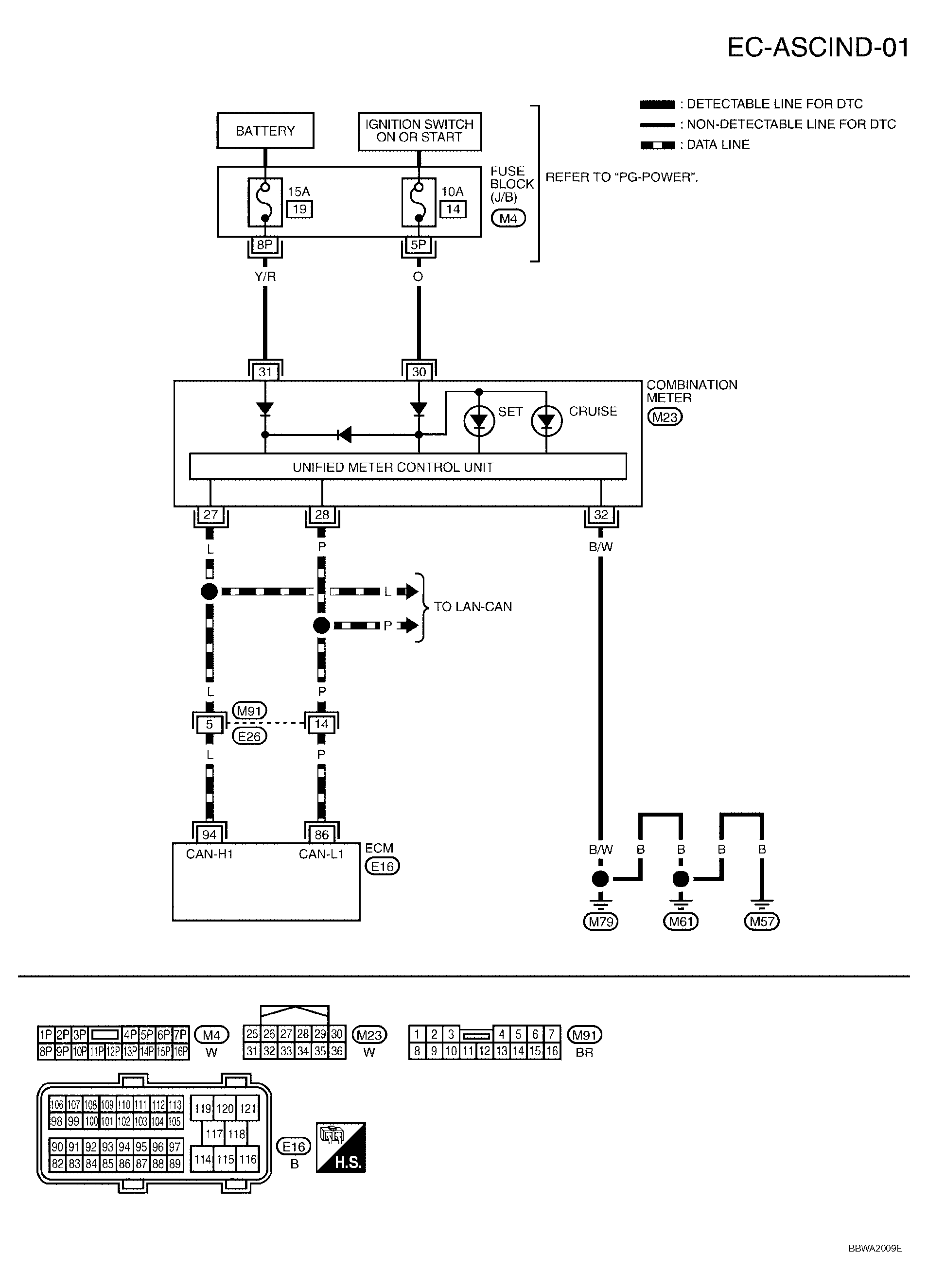

Fig 1: EC-ASCIND-01 - Wiring Diagram
G04197133Courtesy of NISSAN MOTOR CO., U.S.A.
