Mil And Data Link Connector: Wiring Diagram

For PG references, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

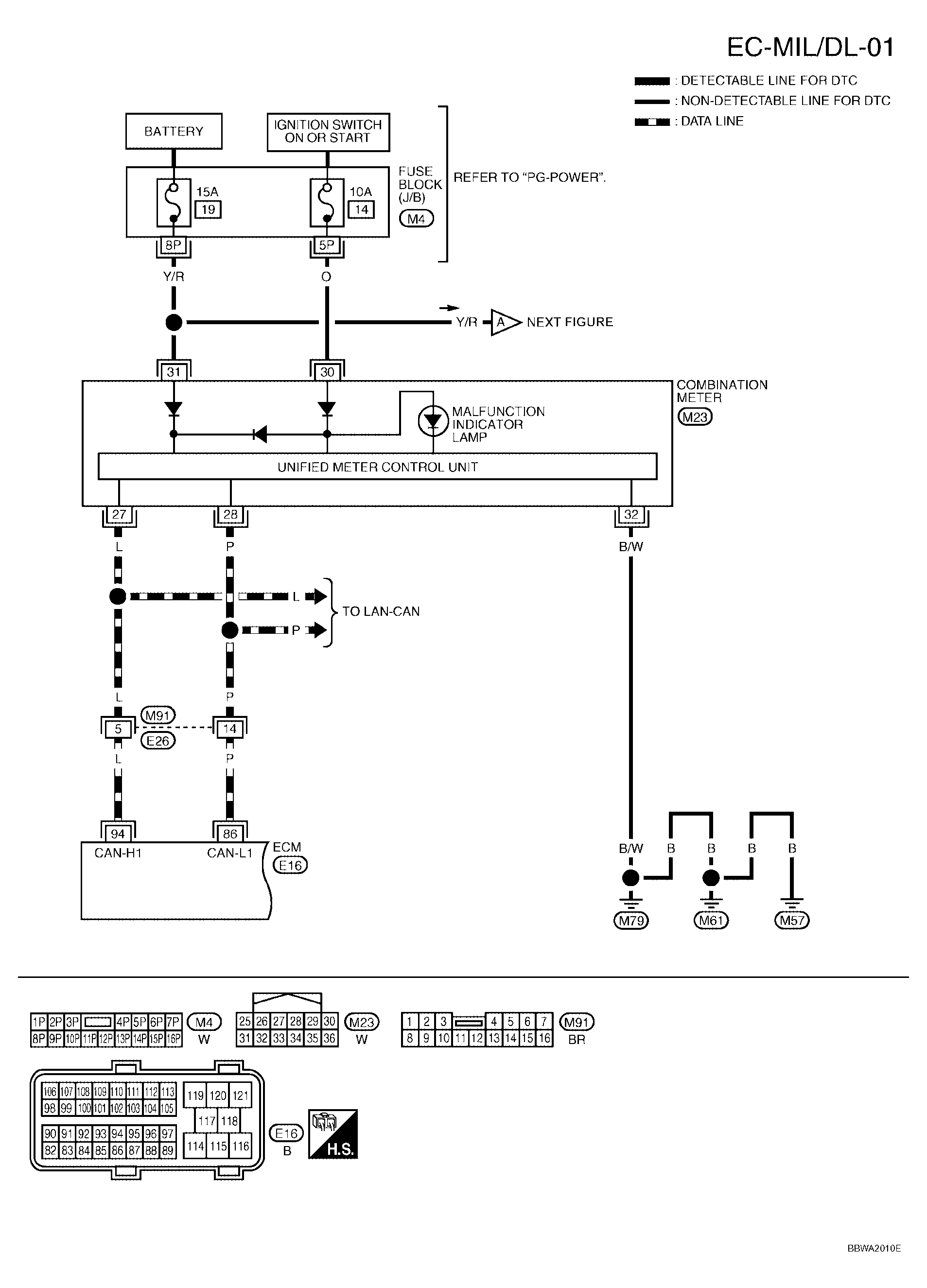

Fig 1: EC-MIL/DL-01 - Wiring Diagram
G04197202Courtesy of NISSAN MOTOR CO., U.S.A.

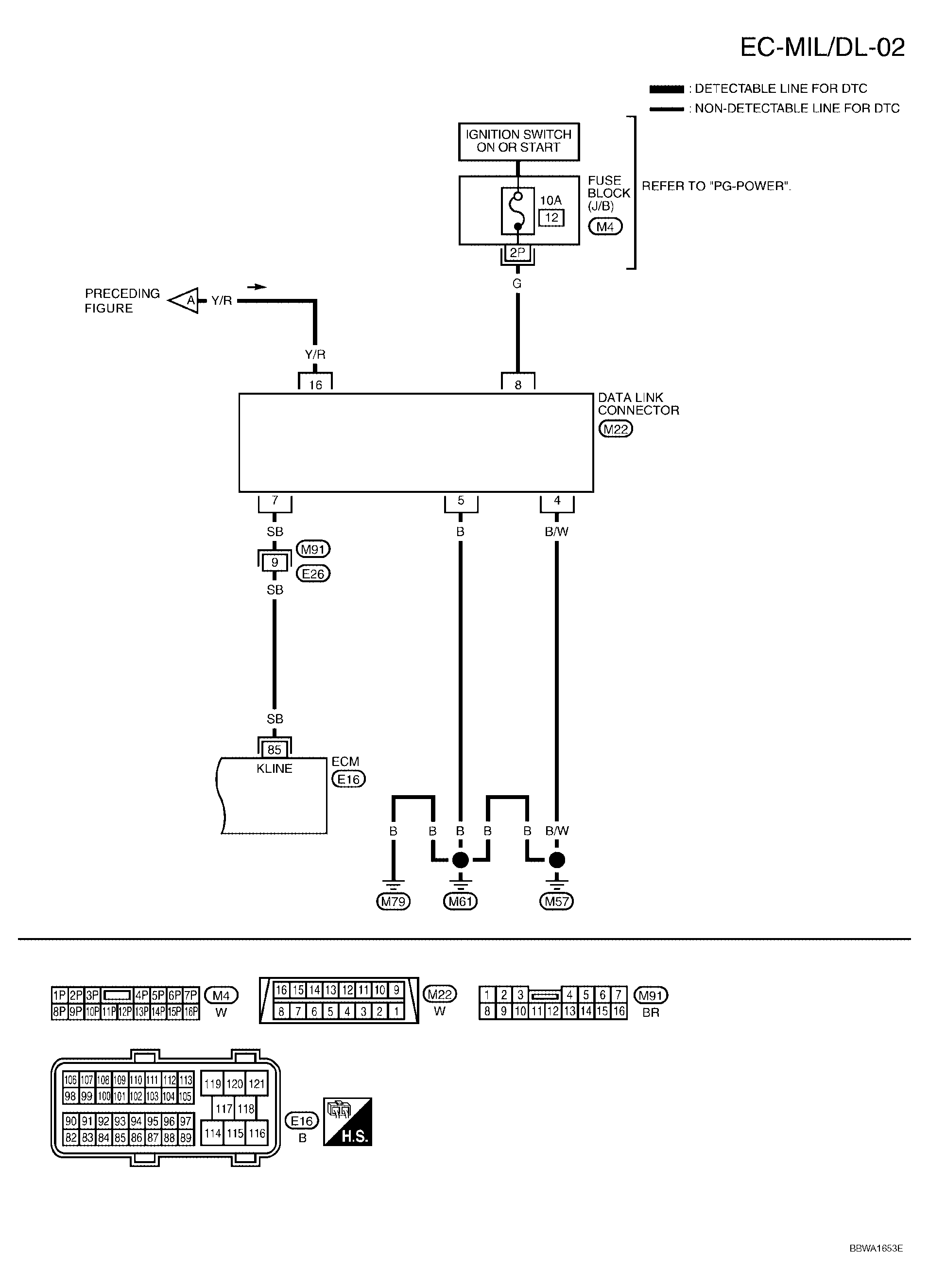

Fig 2: EC-MIL/DL-02 - Wiring Diagram
G04197203Courtesy of NISSAN MOTOR CO., U.S.A.
