Inspection Procedure

Turn ignition switch OFF.
Connect GST to data link connector, which is located under LH dash panel near the hood opener handle.
Turn ignition switch ON.

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this information, sample screens are shown.)

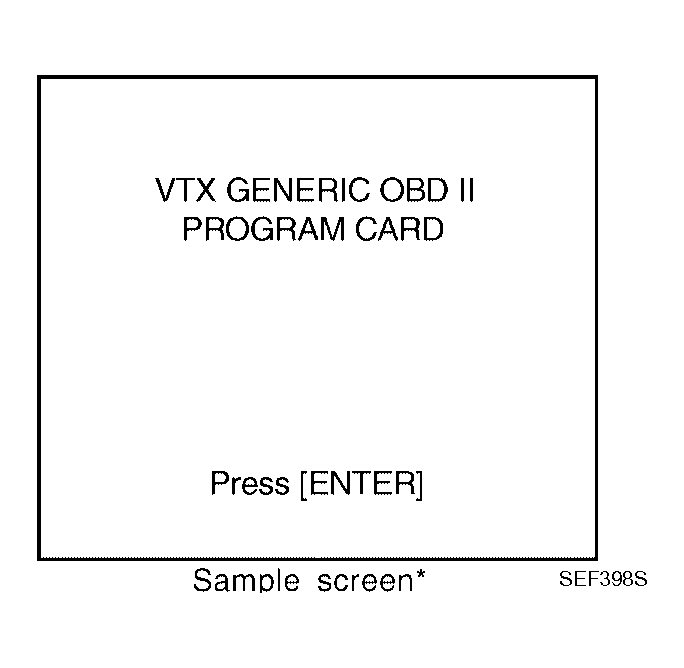

Fig 2: Scan Tool Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic service according to each service procedure.

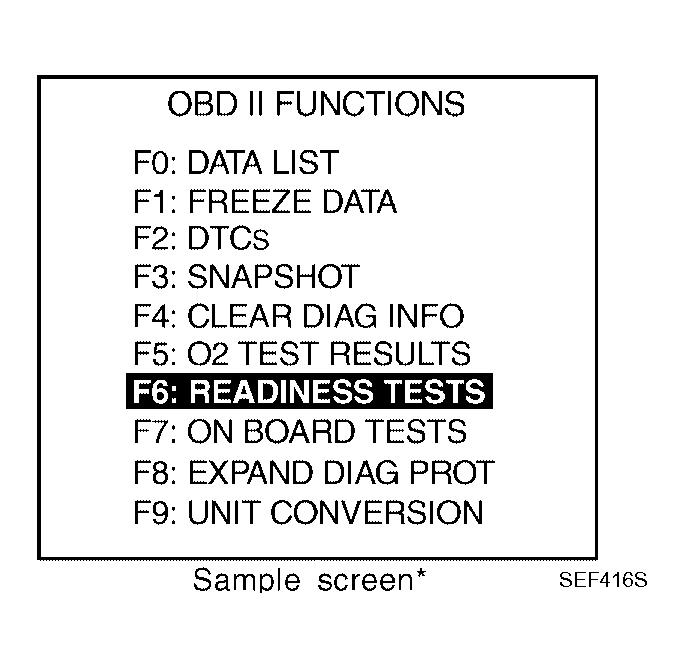

Fig 3: Scan Tool Display - OBD-II Function
Courtesy of NISSAN MOTOR CO., U.S.A.

For further information, see the GST Operation Manual of the tool maker.
