Electrical Load Signal: Wiring Diagram

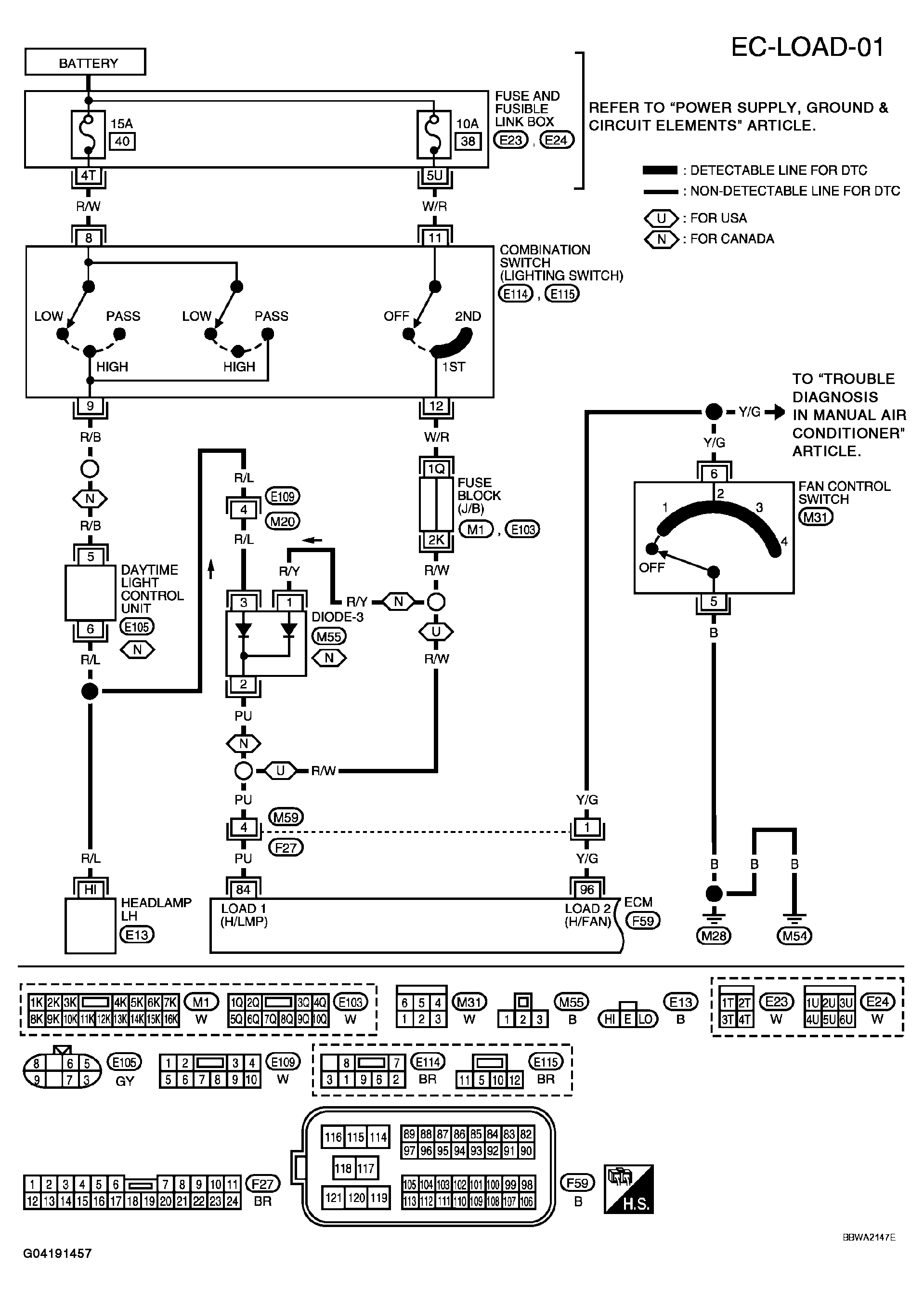

Fig 1: Identifying Wiring Diagram (EC-LOAD-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TERMINALS VOLTAGE REFERENCE

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
84	PU	Electrical load signal (Headlamp signal)	[Ignition switch: ON] Lighting switch: 2ND position	BATTERY VOLTAGE (11 -14V)
84	PU	Electrical load signal (Headlamp signal)	[Ignition switch: ON] Lighting switch: OFF	Approximately 0V
96	Y/G	Electrical load signal (Heater fan signal)	[Engine is running] Heater fan switch: ON	Approximately 0V
96	Y/G	Electrical load signal (Heater fan signal)	[Engine is running] Heater fan switch: OFF	Approximately 5V

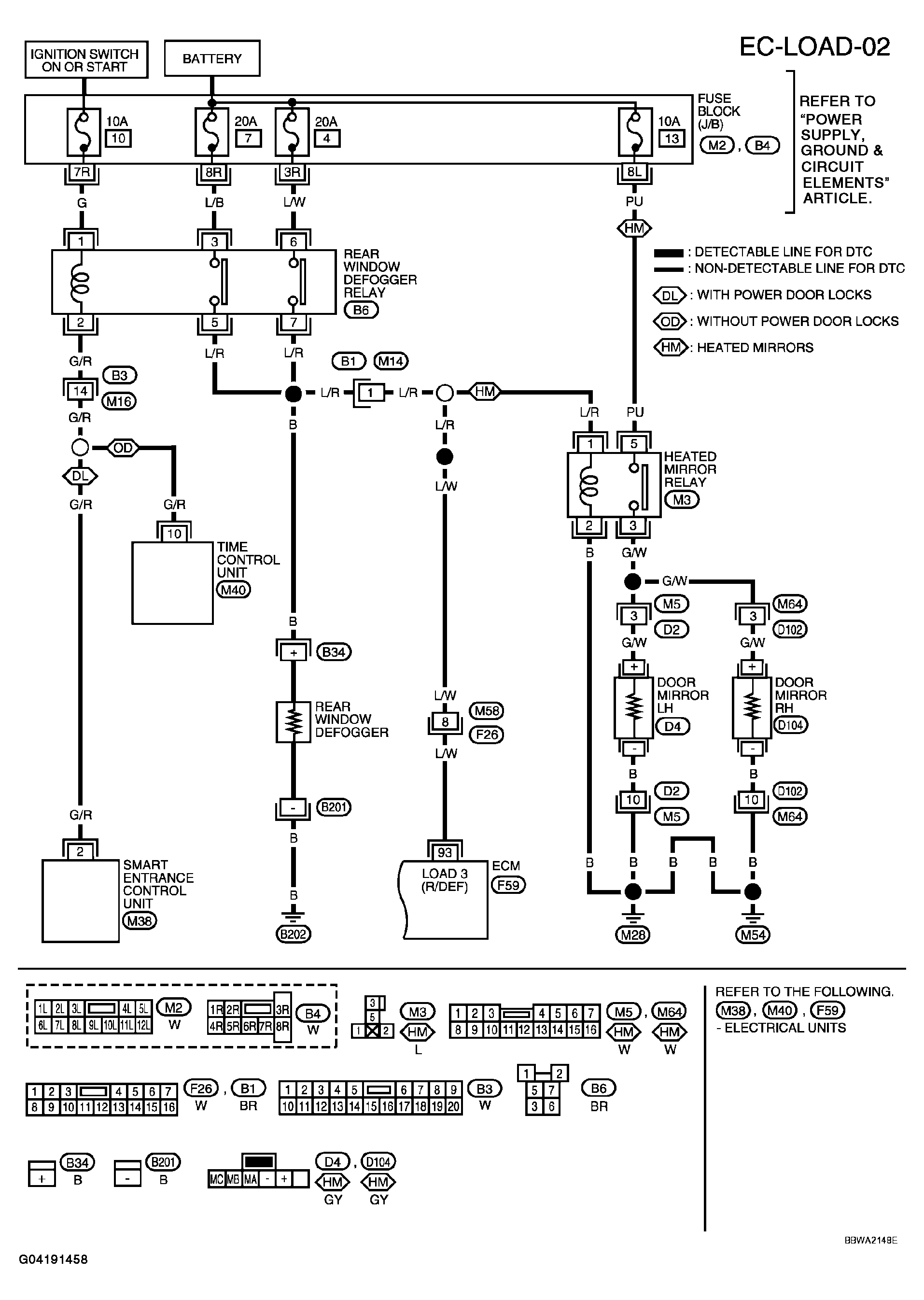

Fig 2: Identifying Wiring Diagram (EC-LOAD-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TERMINALS VOLTAGE REFERENCE

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
93	L/W	Electrical load signal (Rear window defogger signal)	[Ignition switch: ON] Rear window defogger switch: ON	BATTERY VOLTAGE (11 - 14V)
93	L/W	Electrical load signal (Rear window defogger signal)	[Ignition switch: ON] Rear window defogger switch: OFF	Approximately 0V
