ECM Relay

Check continuity between relay terminals 3 and 5, 6 and 7.

TERMINALS CONTINUITY REFERENCE

Condition	Continuity
12V direct current supply between terminals 1 and 2	Yes
OFF	No

If NG, replace ECM relay.

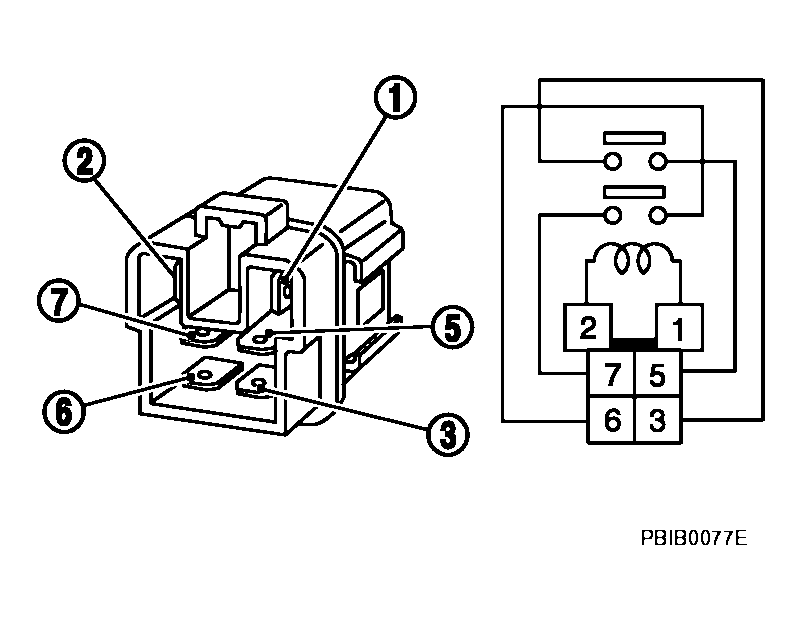

Fig 1: Identifying ECM Relay Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
