Without CONSULT-II

  1. Remove fuse for fuel pump.
  2. Start engine.
  3. After engine stalls, crank it two or three times to release all fuel pressure.
  4. Turn ignition switch OFF and reconnect fuel pump fuse.
  5. Reinstall fuel pump fuse after servicing fuel system.

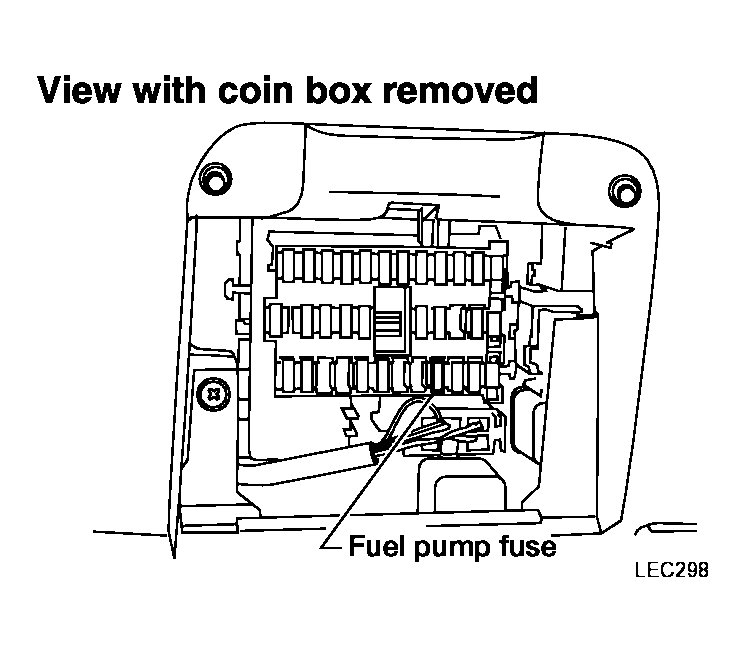

    Fig 1: Identifying Fuel Pump Fuse
    G04190823Courtesy of NISSAN MOTOR CO., U.S.A.
