Commercial Service Tools

COMMERCIAL SERVICE TOOLS CHART

Tool name		Description

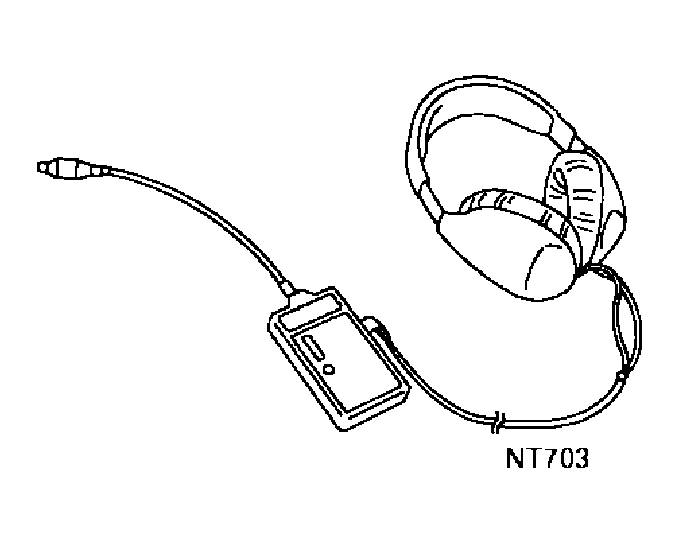

Leak detector i.e.: (J-41416)	Courtesy of NISSAN MOTOR CO., U.S.A.	Locating the EVAP leak

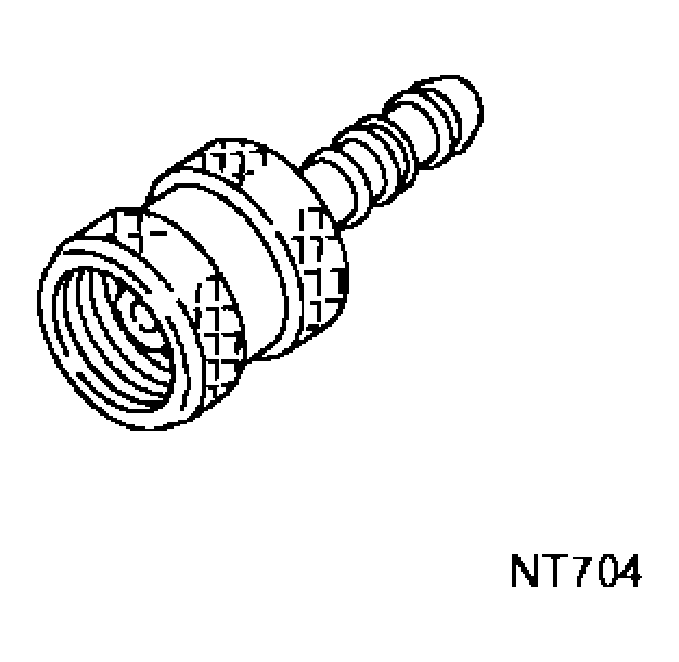

EVAP service port adapter i.e.: (J-41413-OBD)	Courtesy of NISSAN MOTOR CO., U.S.A.	Applying positive pressure through EVAP service port

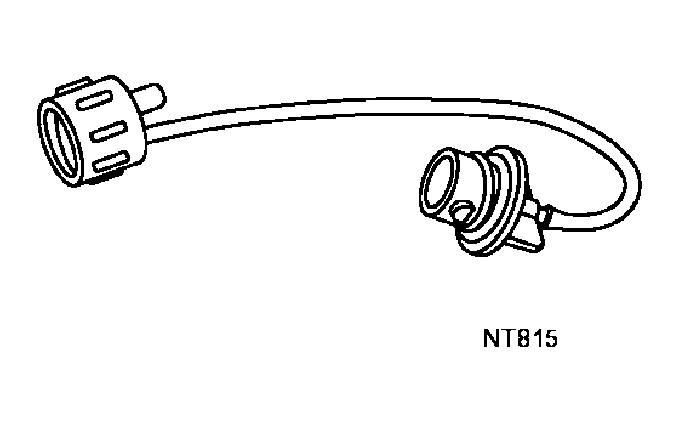

Fuel filler cap adapter i.e.: (MLR-8382)	Courtesy of NISSAN MOTOR CO., U.S.A.	Checking fuel tank vacuum relief valve opening pressure
Oxygen sensor thread cleaner i.e.: (J-43897-18) (J-43897-12)	Courtesy of NISSAN MOTOR CO., U.S.A.	Reconditioning the exhaust system threads before installing a new oxygen sensor or A/F sensor. Use with anti-seize lubricant shown below. a: J-43897-18 18 mm with 1.5 mm pitch dia., for Zirconia Oxygen Sensor or A/F sensor b: J-43897-12 12 mm with 1.25 mm pitch dia., for Titania Oxygen Sensor
Anti-seize lubricant i.e: (Permatex™ 133AR or equivalent meeting MIL specification MIL-A-907)	Courtesy of NISSAN MOTOR CO., U.S.A.	Lubricating oxygen sensor thread cleaning tool when reconditioning exhaust system threads.

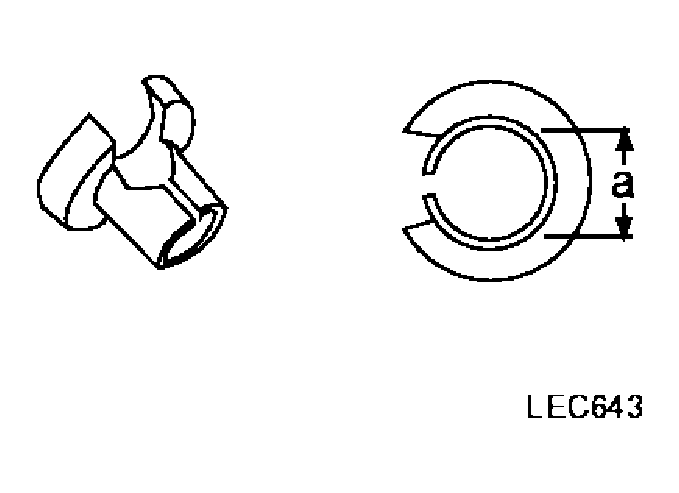

Fuel tube removal tool	Courtesy of NISSAN MOTOR CO., U.S.A.	For disconnecting fuel tube quick connectors a: 7.9 mm (5/16 in)
