ECM Inspection Table
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
INPUT/OUTPUT VOLTAGE CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) | ||
|---|---|---|---|---|---|---|
| 1 | B | ECM ground | [Engine is running]
|
Body ground | ||
| 2 | R | A/F sensor 1 heater | [Engine is running]
|
Approximately 5V(1) | ||
| 3 | R/W | Throttle control motor power supply | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14V) | ||
| 4 | P | Throttle control motor (Close) | [Ignition switch: ON]
|
0 - 14V(1) | ||
| 5 | L | Throttle control motor (Open) | [Ignition switch: ON]
|
0 - 14V(1) | ||
| 11 | G/Y | Intake valve timing control solenoid valve | [Engine is running]
|
BATTERY VOLTAGE (11 - 14V) | ||
[Engine is running]
|
7 - 10V(1) | |||||
| 12 | P | Power steering pressure sensor | [Engine is running]
|
0.5 - 4.0V | ||
[Engine is running]
|
0.4 - 8V | |||||
| 13 | Y | Crankshaft position sensor (POS) | [Engine is running]
NOTE:
The pulse cycle changes depending on rpm at idle.
|

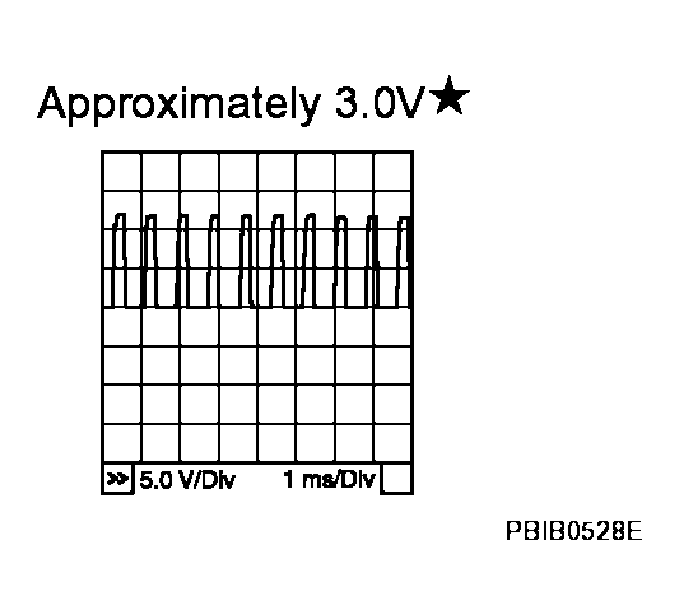

Approximately 3.0V(1) | ||
[Engine is running]
|

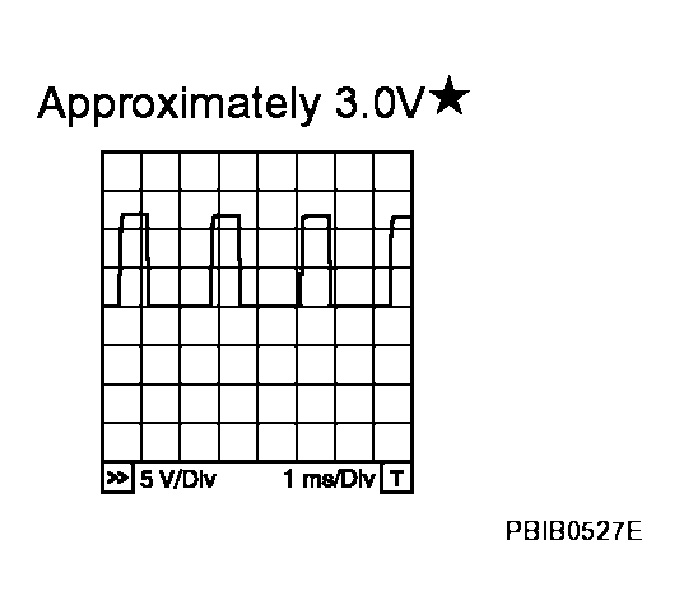

Approximately 3.0V(1) | |||||
| 14 | W/R | Camshaft position sensor (PHASE) | [Engine is running]
NOTE:
The pulse cycle changes depending on rpm at idle.
|

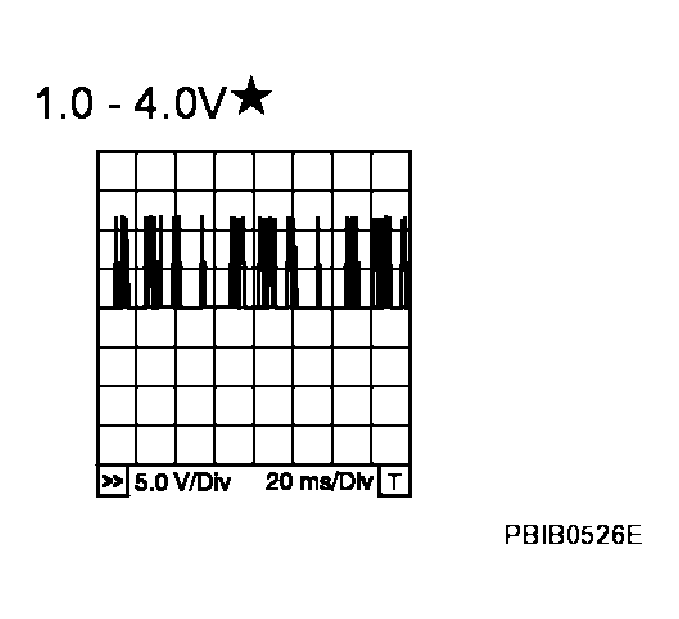

1.0 - 4.0V(1) | ||
[Engine is running]
|

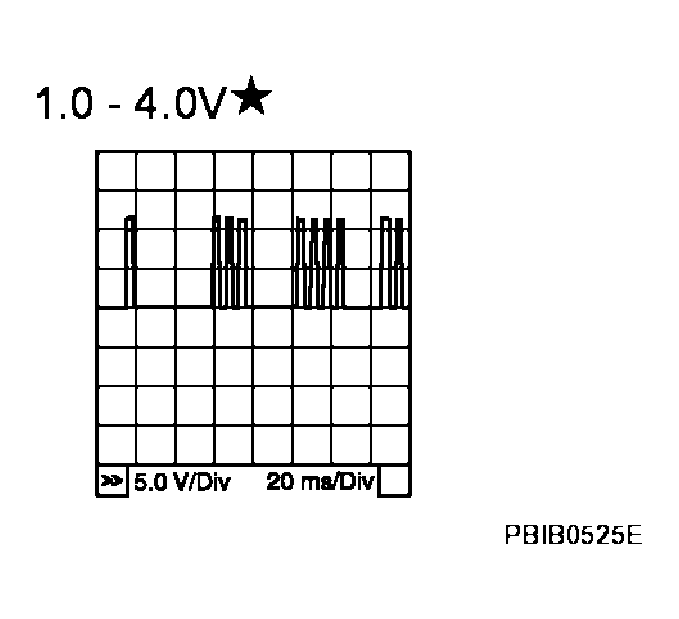

1.0 - 4.0V(1) | |||||
| 15 | W | Knock sensor | [Engine is running]
|
Approximately 2.5V | ||
| 16 | OR/L | A/F sensor 1 | [Engine is running]
|
Approximately 3.1V | ||
| 35 | B/Y | Approximately 2.6V | ||||
| 56 | OR | 2 - 3V | ||||
| 75 | W/L | 2 - 3V | ||||
| 22 23 41 42 |
G/B R/B L/B Y/B |
Fuel injector No. 3 Fuel injector No. 1 Fuel injector No. 4 Fuel injector No. 2 |
[Engine is running]
NOTE:
The pulse cycle changes depending on rpm at idle.
|
BATTERY VOLTAGE (11 - 14V)(1) | ||
[Engine is running]
|
BATTERY VOLTAGE (11 - 14V)(1) | |||||
| 25 | W/B | Heated oxygen sensor 2 heater | [Engine is running]
|
0 - 1.0V | ||
[Ignition switch: ON]
[Engine is running]
|
BATTERY VOLTAGE (11 - 14V) | |||||
| 32 | L | EVAP control system pressure sensor | [Ignition switch: ON] | Approximately 1.8 - 4.8V | ||
| 34 | Y/G | Intake air temperature sensor | [Engine is running] | Approximately 0 - 4.8V Output voltage varies with intake air temperature. | ||
| 45 | GY/L | EVAP canister purge volume control solenoid valve | [Engine is running]
|
BATTERY VOLTAGE (11 - 14V)(1) | ||
[Engine is running]
|

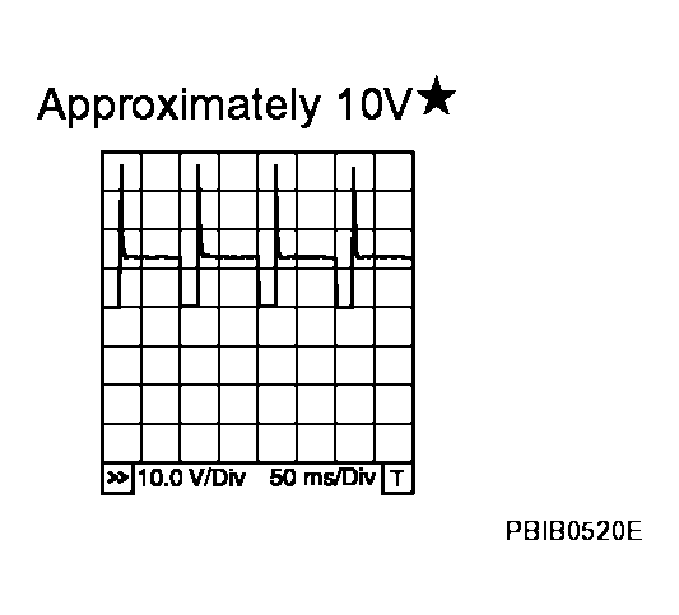

Approximately 10V(1) | |||||
| 47 | B | Sensor power supply (Throttle position sensor) |
[Ignition switch: ON] | Approximately 5V | ||
| 48 | R/W | Sensor power supply (EVAP control system pressure sensor) | [Ignition switch: ON] | Approximately 5V | ||
| 49 | R/Y | Sensor power supply (Refrigerant pressure sensor) | [Ignition switch: ON] | Approximately 5V | ||
| 50 | W | Throttle position sensor 1 | [Ignition switch: ON]
|
More than 0.36V | ||
[Ignition switch: ON]
|
Less than 4.75V | |||||
| 51 | L/R | Mass air flow sensor | [Engine is running]
|
0.9 - 1.2V | ||
[Engine is running]
|
1.4 - 1.8V | |||||
| 61 62 80 81 |
L/W BR GY/R PU |
Ignition signal No. 3 Ignition signal No. 1 Ignition signal No. 4 Ignition signal No. 2 |
[Engine is running]
NOTE:
The pulse cycle changes depending on rpm at idle.
|
0 - 0.1V(1) | ||
[Engine is running]
|

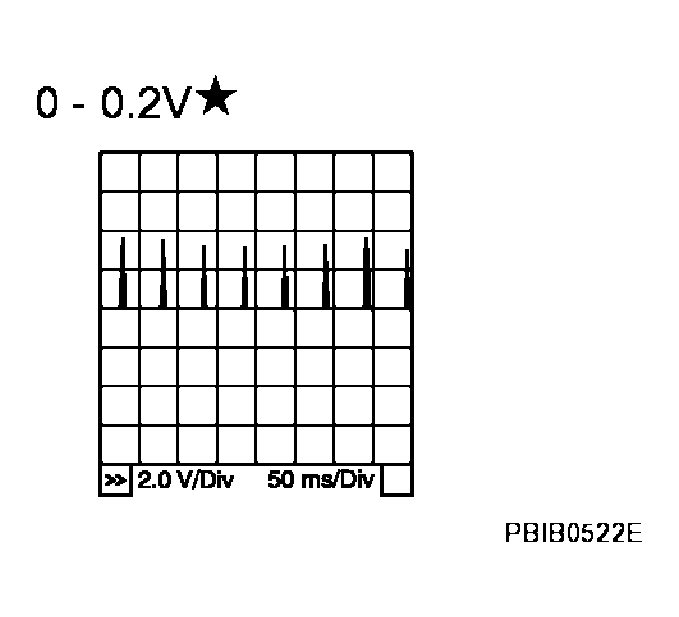

0 - 0.2V(1) | |||||
| 66 | R | Sensor ground (Throttle position sensor) |
[Engine is running]
|
Approximately 0V | ||
| 67 | B/W | Sensor ground | [Engine is running]
|
Approximately 0V | ||
| 68 | G/R | Sensor power supply (Power steering pressure sensor) |
[Ignition switch: ON] | Approximately 5V | ||
| 69 | G | Throttle position sensor 2 | [Ignition switch: ON]
|
Less than 4.75V | ||
[Ignition switch: ON]
|
More than 0.36V | |||||
| 70 | L | Refrigerant pressure sensor | [Engine is running]
|
1.0 - 4.0V | ||
| 73 | BR/W | Engine coolant temperature sensor | [Engine is running] | Approximately 0 - 4.8V Output voltage varies with engine coolant temperature. | ||
| 74 | R/L | Heated oxygen sensor 2 | [Engine is running]
|
0 - Approximately 1.0V | ||
| 78 | B | Sensor ground (Heated oxygen sensor) |
[Engine is running]
|
Approximately 0V | ||
| 82 | B/Y | Sensor ground (Accelerator pedal position sensor 1) |
[Engine is running]
|
Approximately 0V | ||
| 83 | G | Sensor ground (Accelerator pedal position sensor 2) |
[Engine is running]
|
Approximately 0V | ||
| 84 | PU | Electrical load signal (Headlamp signal) |
[Lighting switch: ON]
|
BATTERY VOLTAGE (11 - 14V) | ||
[Lighting switch: ON]
|
Approximately 0V | |||||
| 85 | LG | DATA link connector | [Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) | ||
| 86 | Y | CAN communication line | [Ignition switch: ON] | Approximately 2.3V | ||
| 89 | LG/B | Cooling fan relay-2 (High) | [Engine is running]
|
BATTERY VOLTAGE (11 - 14V) | ||
[Engine is running]
|
0 - 1.0V | |||||
| 90 | R | Sensor power supply (Accelerator pedal position sensor 1) |
[Ignition switch: ON] | Approximately 5V | ||
| 91 | R/G | Sensor power supply (Accelerator pedal position sensor 2) |
[Ignition switch: ON] | Approximately 5V | ||
| 93 | L/W | Electrical load signal (Rear window defogger signal) | [Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) | ||
[Ignition switch: ON]
|
Approximately 0V | |||||
| 94 | L | CAN communication line | [Ignition switch: ON] | Approximately 2.8V | ||
| 96 | Y/G | Electrical load signal (Heater fan signal) |
[Engine is running]
|
Approximately 0V | ||
[Engine is running]
|
Approximately 5V | |||||
| 97 | LG/R | Cooling fan relay-1 (Low) | [Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) | ||
[Ignition switch: ON]
|
0 - 1.0V | |||||
| 98 | R/B | Accelerator pedal position sensor 2 | [Ignition switch: ON]
|
0.28 - 0.48V | ||
[Ignition switch: ON]
|
More than 2.0V | |||||
| 99 | W/R | ASCD steering switch | [Ignition switch: ON]
|
Approximately 4V | ||
[Ignition switch: ON]
|
Approximately 0V | |||||
[Ignition switch: ON]
|
Approximately 1V | |||||
[Ignition switch: ON]
|
Approximately 3V | |||||
[Ignition switch: ON]
|
Approximately 2V | |||||
| 101 | R/G | Stop lamp switch | [Ignition switch: OFF]
|
Approximately 0V | ||
[Ignition switch: OFF]
|
BATTERY VOLTAGE (11 - 14V) | |||||
| 102 | G/OR | PNP switch | [Ignition switch: ON]
|
Approximately 0V | ||
[Ignition switch: ON]
|
A/T models BATTERY VOLTAGE (11 - 14V) M/T models Approximately 5V |
|||||
| 104 | P | Throttle control motor relay | [Ignition switch: OFF] | BATTERY VOLTAGE (11 - 14V) | ||
| [Ignition switch: ON] | 0 - 1.0V | |||||
| 106 | W | Accelerator pedal position sensor 1 | [Ignition switch: ON]
|
0.65 - 0.87V | ||
[Ignition switch: ON]
|
More than 4.3V | |||||
| 107 | OR | Fuel tank temperature sensor | [Engine is running] | Approximately 0 - 4.8V Output voltage varies with fuel tank temperature. | ||
| 108 | P/L | ASCD brake switch | [Ignition switch: ON]
|
Approximately 0V | ||
[Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) | |||||
| 109 | B/R | Ignition switch | [Ignition switch: OFF] | 0V | ||
| [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14V) | |||||
| 111 | W/G | ECM relay (Self shut-off) | [Engine is running] [Ignition switch: OFF]
|
0 - 1.0V | ||
[Ignition switch: OFF]
|
BATTERY VOLTAGE (11 - 14V) | |||||
| 113 | B/P | Fuel pump relay | [Ignition switch: ON]
[Engine is running] |
0 - 1.0V | ||
[Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) | |||||
| 115 116 |
B B |
ECM ground | [Engine is running]
|
Body ground | ||
| 117 | L/Y | EVAP canister vent control valve | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14V) | ||
| 119 120 |
R/G R/G |
Power supply for ECM | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14V) | ||
| 121 | W/L | Power supply for ECM (Back-up) | [Ignition switch: OFF] | BATTERY VOLTAGE (11 - 14V) | ||
|
||||||
