Component Parts and Harness Connector Location

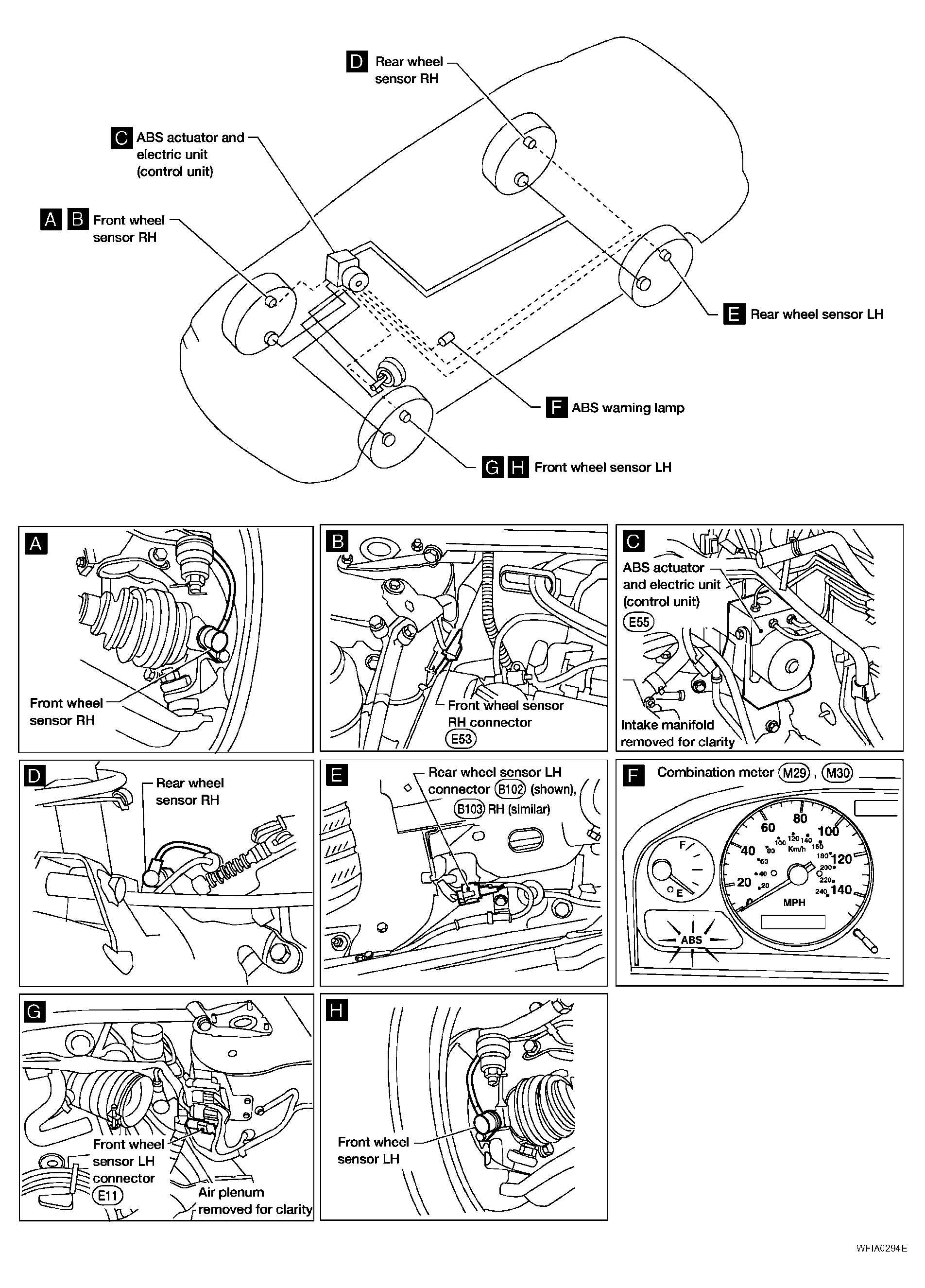

Fig 1: Identifying Component Parts And Harness Connector Location
G04194674Courtesy of NISSAN MOTOR CO., U.S.A.
