Wiring Diagram - ABS -

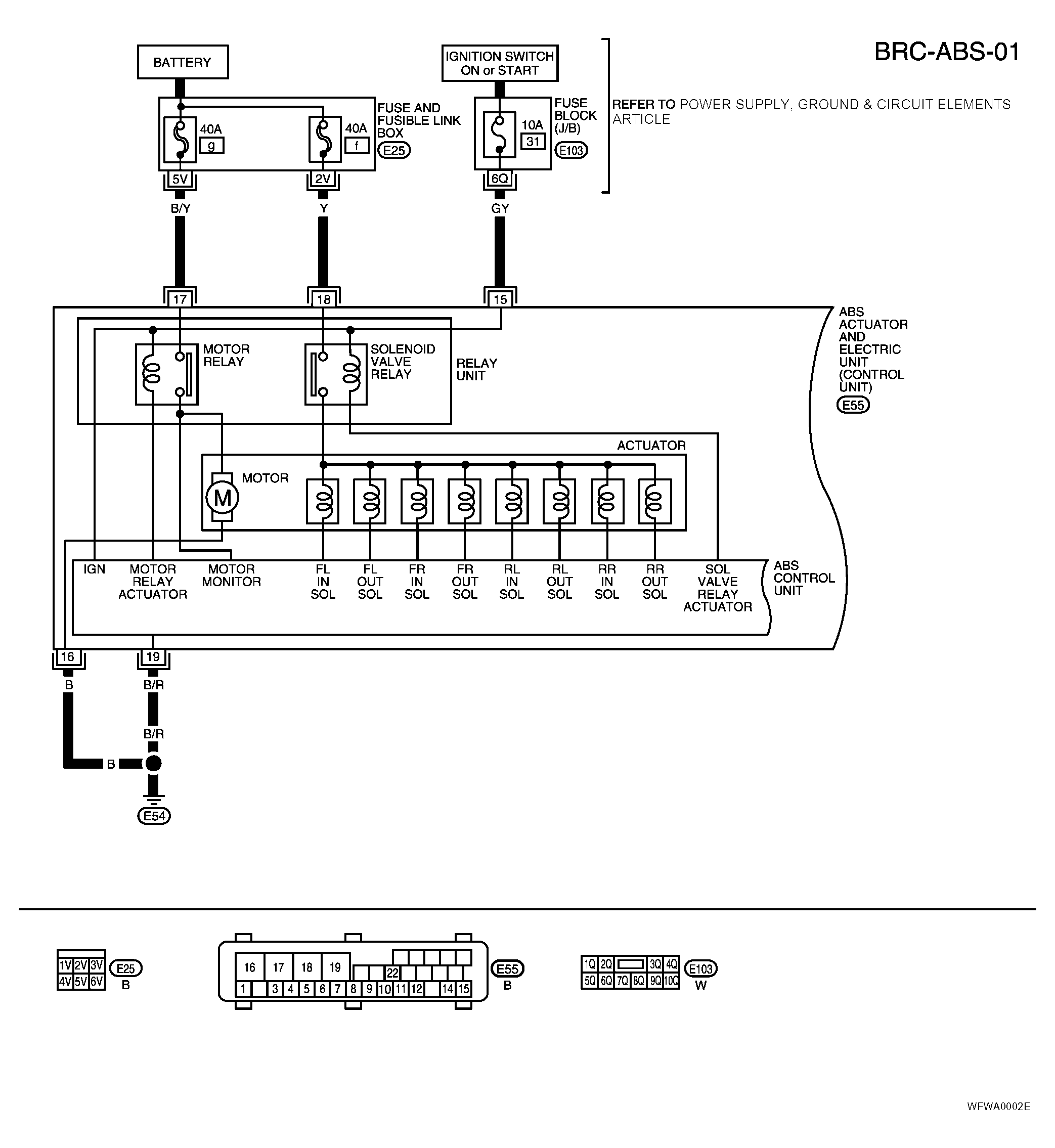

Fig 1: Wiring Diagram BRC-ABS-01

Courtesy of NISSAN MOTOR CO., U.S.A.

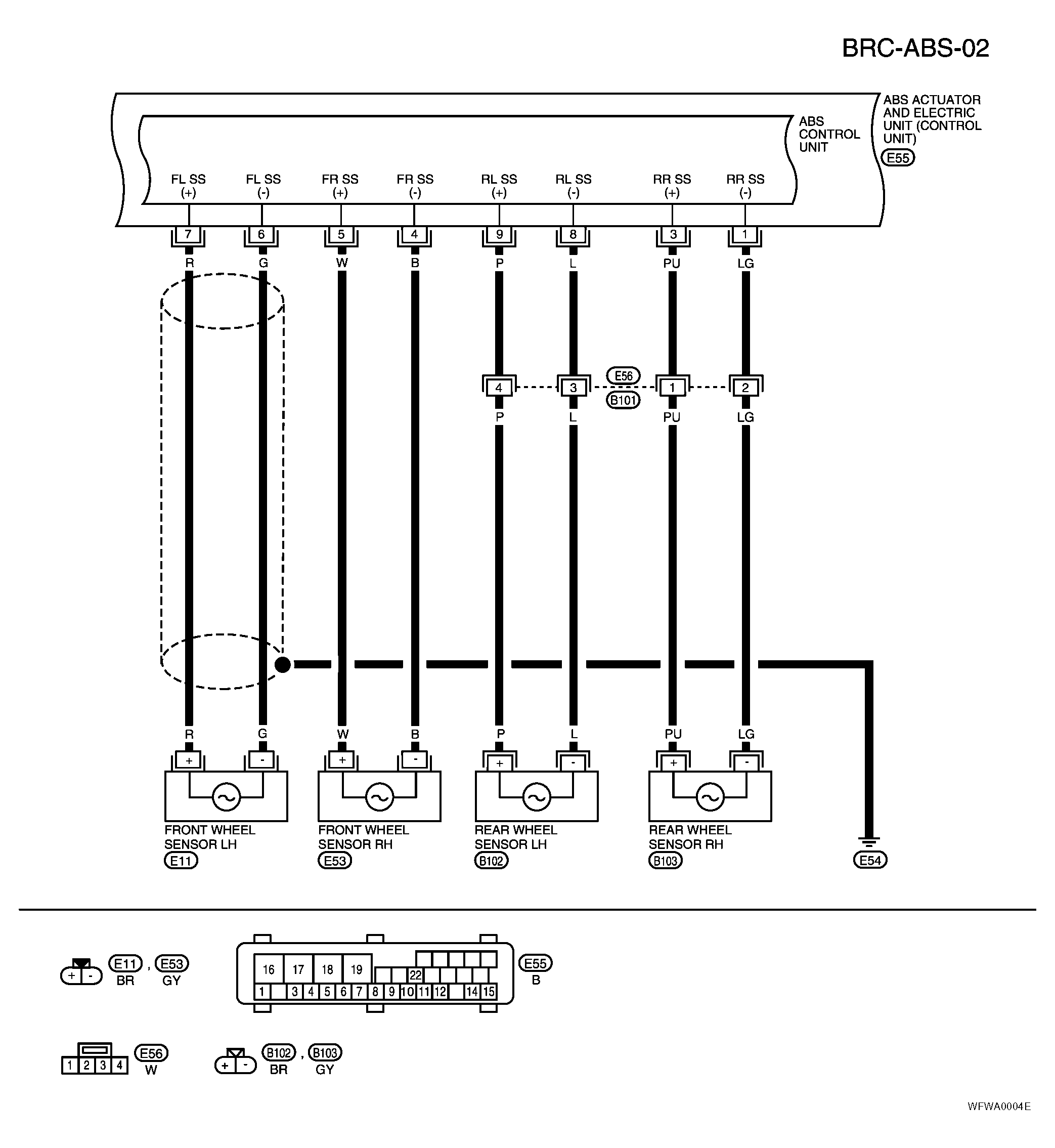

Fig 2: Wiring Diagram BRC-ABS-02

Courtesy of NISSAN MOTOR CO., U.S.A.

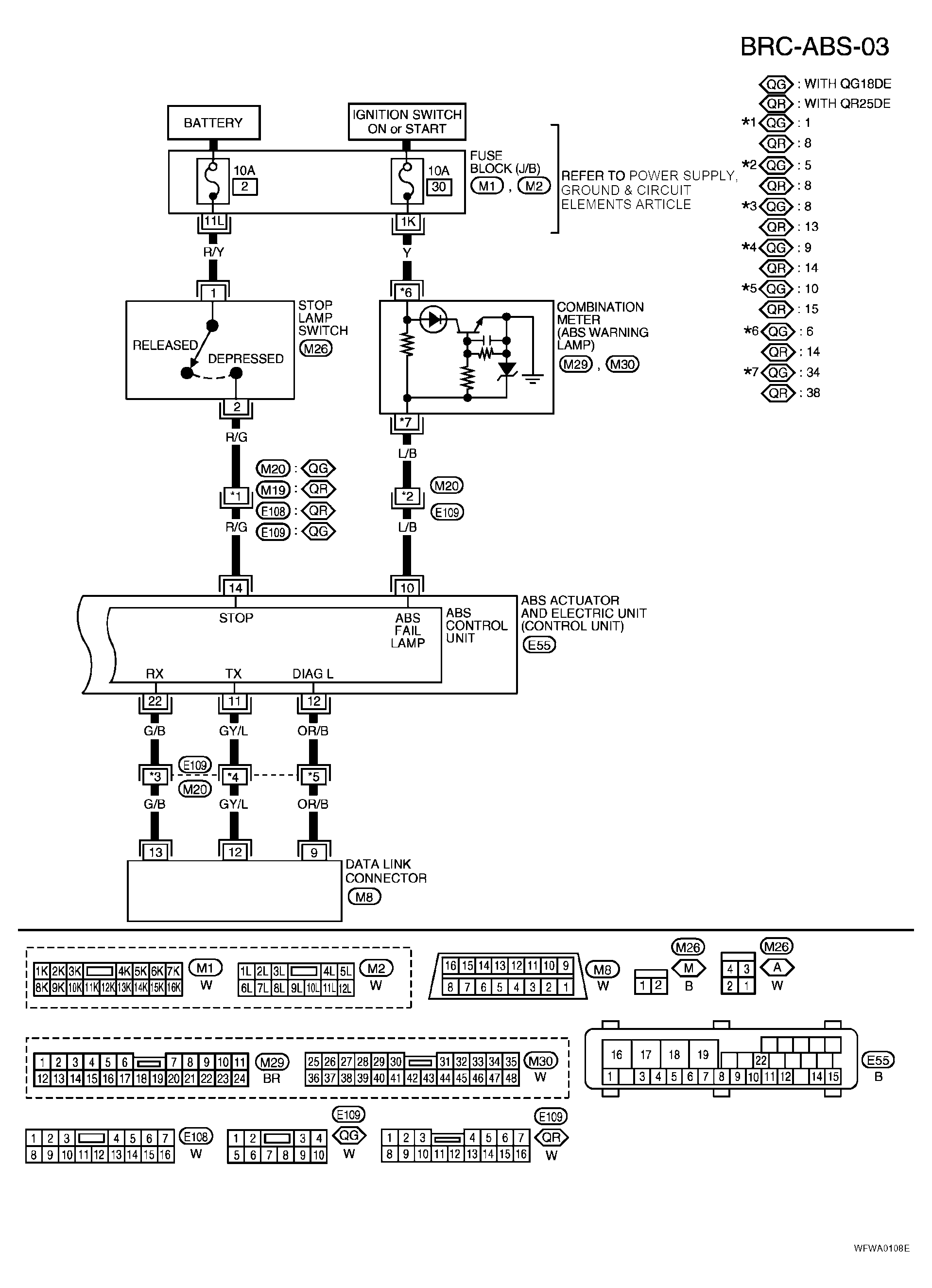

Fig 3: Wiring Diagram BRC-ABS-03

Courtesy of NISSAN MOTOR CO., U.S.A.

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND

TERMINALS REFERENCE

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (APPROX.)
10	L/B	ABS WARNING LAMP IN COMBINATION METER	WHEN ABS LAMP IS ACTIVE	0V
10	L/B	ABS WARNING LAMP IN COMBINATION METER	WHEN ABS LAMP IS NOT ACTIVE	BATTERY VOLTAGE
11	GY/L	DATA LINK CONNECTOR	-	-
12	OR/B	DATA LINK CONNECTOR	-	-
14	R/G	STOP LAMP SWITCH	WHEN BRAKE PEDAL IS DEPRESSED	BATTERY VOLTAGE
14	R/G	STOP LAMP SWITCH	WHEN BRAKE PEDAL IS RELEASED	0V
22	G/B	DATA LINK CONNECTOR	-	-
