Removal and Installation

CAUTION: Replace anchor bolts if they are deformed or worn out.

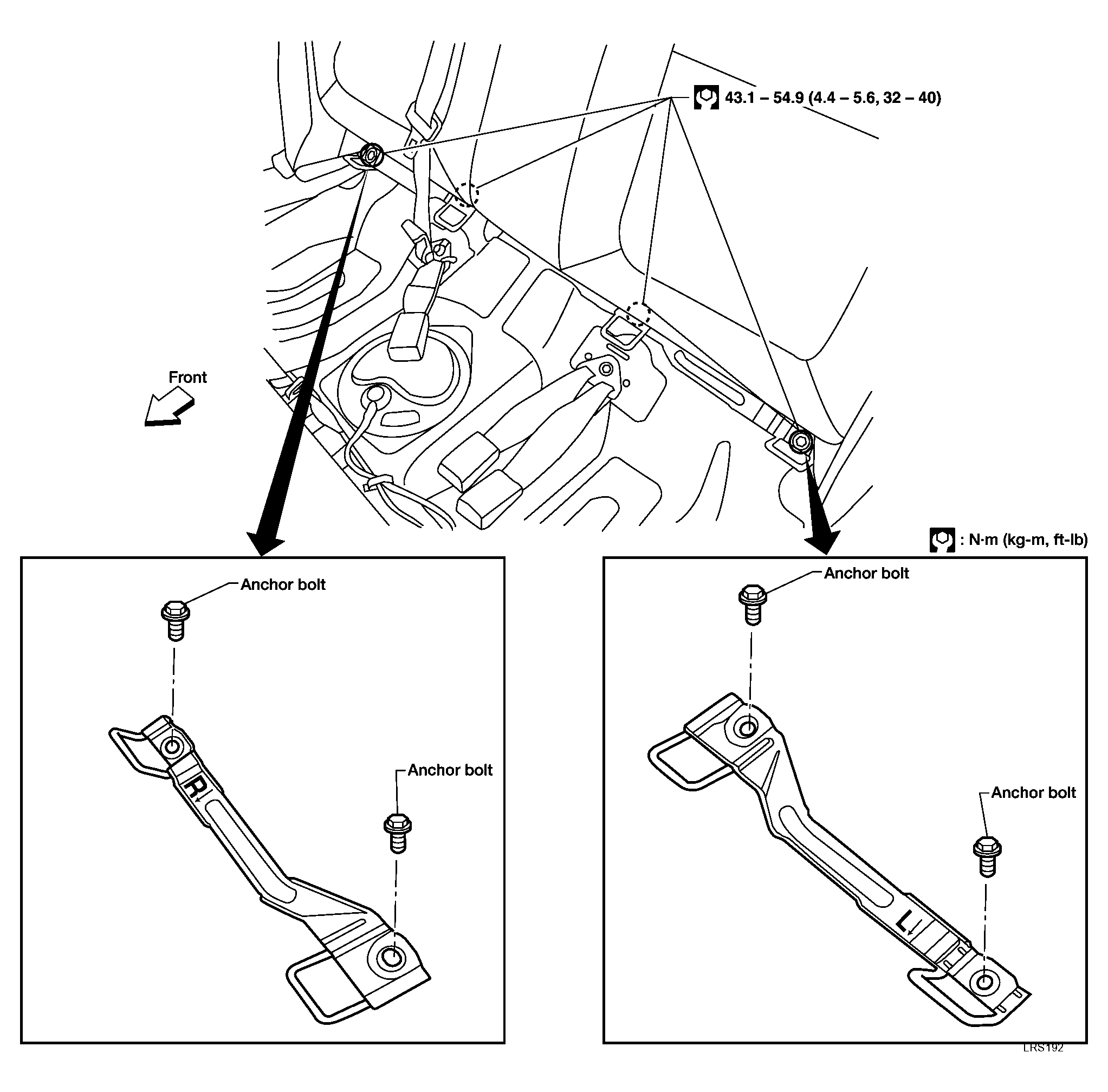

Fig 1: Removing LATCH System Anchors With Torque Specifications
G04194806Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove rear seat cushion. Refer to "REAR SEAT " for details.
  2. Remove LH and RH LATCH System anchors.
    NOTE: LH and RH LATCH System anchors are different.
    Install with arrow facing forward.
